Macromatic
PMPU-FA8
Contact for Pricing
Overview
- Monitors 190-500 AC voltage
- Operating voltage: 208-480V AC (50/60 Hz)

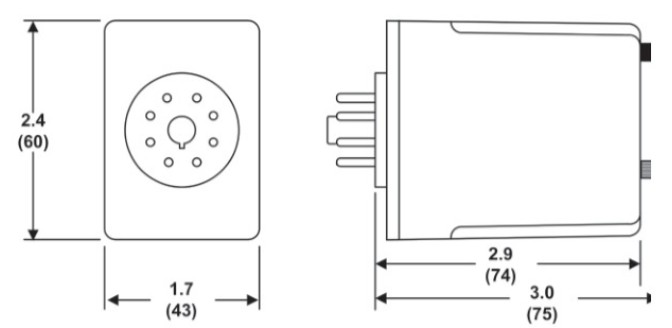

- 8-pin plug-in design with SPDT output
- 10A output rating
- Protects against phase loss, reversal, unbalance, over/under-voltage
PLM9405
The PLM Series is a 3-phase voltage monitor that continuously monitors each of the three phases. Monitors both delta and wye systems and no connection to neutral is required. The microcontroller circuit design protects against undervoltage, voltage unbalance, phase loss and phase reversal. Protection is assured when regenerated voltages are present. Operation: The output relay is energized and the LED glows green when all voltages are acceptable and the phase sequence is correct. Under and unbalanced voltages must be sensed for a continuous trip delay period before the relay de-energizes. Reset is automatic upon correction of the fault condition. The output relay will not energize if a fault condition is sensed as power is applied. The LED flashes red during the trip delay, then glows red when the output de-energizes. The LED flashes green/red if phase reversal is sensed. Field Adjustment: Set voltage adjustment knob at the desired operating line voltage for the equipment. This adjustment automatically sets the undervoltage trip point. Apply power. If the PLM fails to energize, (LED glows red) check wiring of all 3 phases, voltage, and phase sequence. If phase sequence is incorrect, the LED flashes green/red. To correct this, swap any two line voltage connections at the mounting socket. No further adjustment should be required.
PMDU
Three Phase Monitor Relay; DIN-Mount; 190-500V; 10A DPDT; Phase Loss; Reversal; Unbalance; Under/Over Voltage
Frequently Asked Questions
What is the operating voltage range for the Macromatic PMPU-FA8?
The Macromatic PMPU-FA8 operates on 208-480V AC at 50/60 Hz.
What types of faults does the PMPU-FA8 protect against?
The PMPU-FA8 protects against phase loss, phase reversal, phase unbalance, over-voltage, and under-voltage.
What is the output configuration of the PMPU-FA8?
The PMPU-FA8 features an 8-pin plug-in design with a Single Pole Double Throw (SPDT) output configuration.
What is the output current rating for the PMPU-FA8?
The PMPU-FA8 has an output rating of 10A.
How does the PMPU-FA8 reset after a fault?
Reset is automatic upon correction of the fault condition.
What is the monitored voltage range for the PMPU-FA8?
The monitored voltage range for the PMPU-FA8 is 190-500 AC.
Are there fixed settings for phase unbalance and voltage?
Yes, the PMPU-FA8 has fixed settings for phase unbalance at 6%, under-voltage at 90%, and over-voltage at 110%.
