UPC: 623980950402
Documents & Media
Contact for Pricing

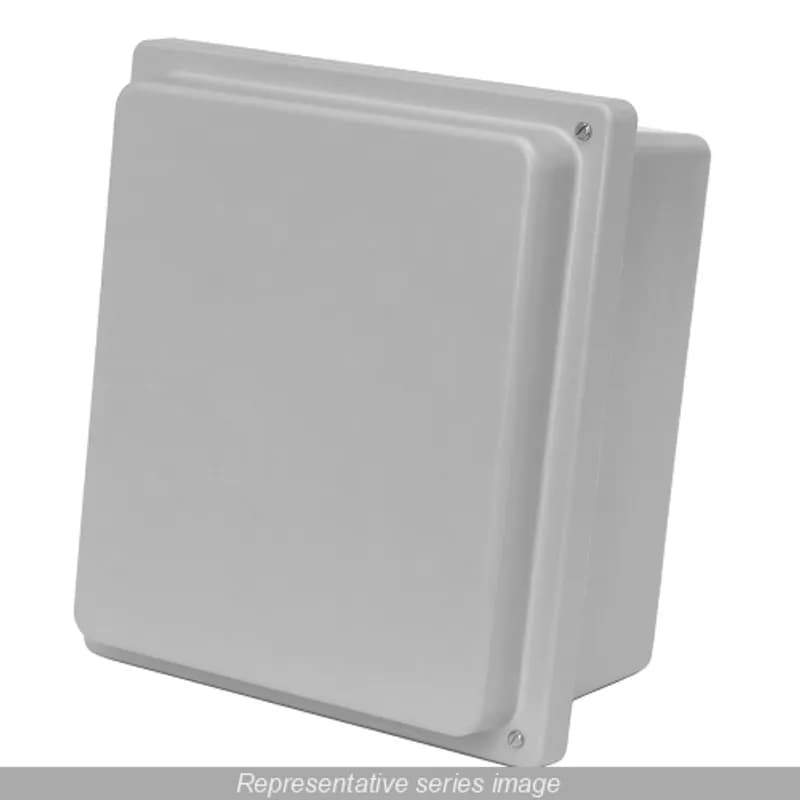

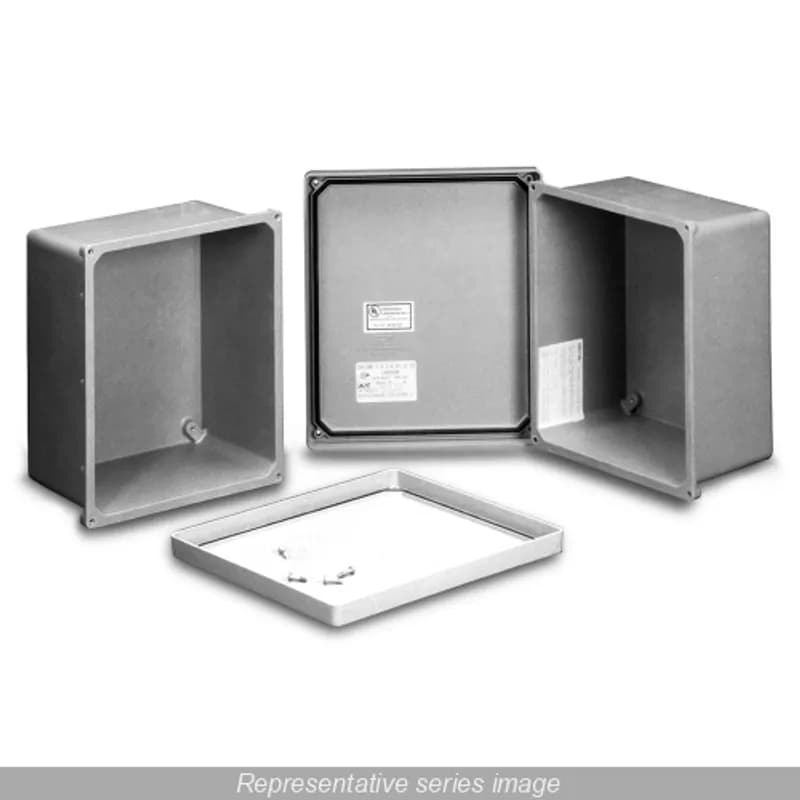

Overview
- NEMA Type 4X rated fiberglass construction
- Dimensions: 6.10" H x 6.10" W x 4.18" D
- Durable fiberglass-reinforced polyester material
- Suitable for harsh industrial and commercial environments
- Designed for wallmount installation and easy maintenance
Specifications
Application | Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides outstanding insulation and protection where equipment may be hosed down or be very wet. Ideal in applications with high temperatures or highly corrosive environments. |
Brand Name | Hammond Mfg. |
Color | Light Gray |
Color | Gray |
Color | Grey |
Cubic Capacity | 153.6773 Cubic in |
Cubic Capacity | 153.6773 in3 |
Material | Polyester Plastic |
Material Quality | Polyester Plastic |
Mounting | Wall |
NEMA Rating | type-3r, type-13, type-4x |
NEMA Rating | 13;3R;4X |
Size | 6.1 in x 6.1 in x 4.13 in |
Special Features | Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled. Enhanced UV inhibitors protect against outdoor weathering. Standard JIC sizes under 18" x 16". 10-32 threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware included. Cover is fastened with captive stainless steel screws in threaded brass inserts. Captive oil resistant gasket provides a positive seal. Threaded brass inserts are provided for mounting feet to the rear of the enclosure. Stainless steel mounting brackets and hardware are provided for mounting feet to the rear of the enclosure. Operating temperatures between 130C and -40C (266F to -40F). Impact index of 6.78J (5 ft/lb). For corrosion resistance information, please refer to table in the Technical Information section. |
Standard | csa, ul, ce |
Sub Brand | PJ Series |
Type | N4X Wallmount Encl. |
Package Dimensions (L x W x H) | 4.54 IN x 6.71 IN x 6.71 IN |
Package Dimensions (L x W x H) | 11.5316 cm x 17.0434 cm x 17.0434 cm |
Package Weight (Imperial) | 3.000 L |
Package Weight (Metric) | 1.361 kg |
