Contact for Pricing

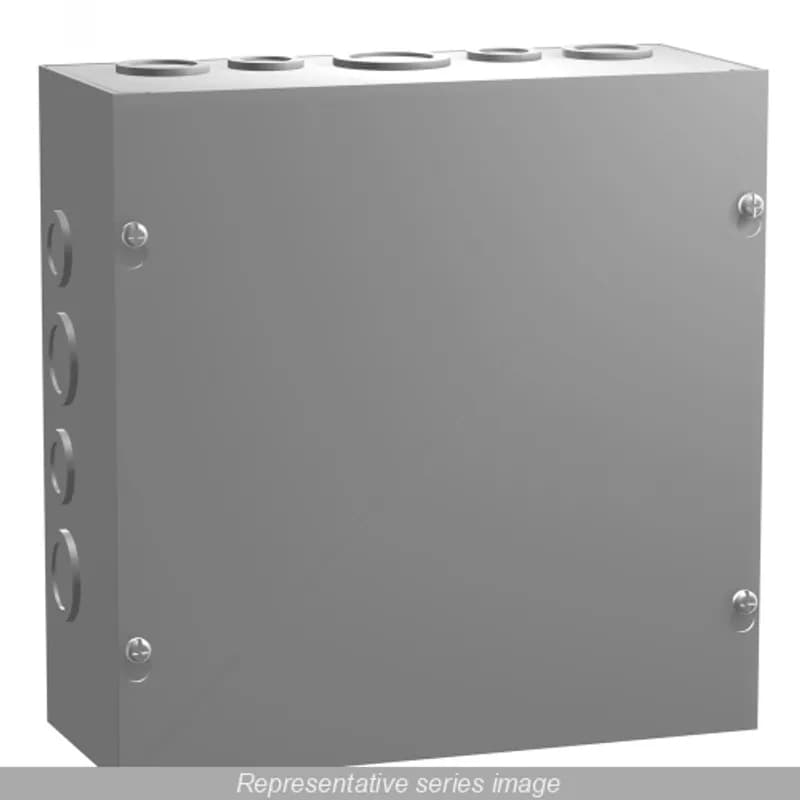

Overview
- Durable steel construction for industrial environments
- 16 x 12 x 4 inch dimensions
- Gray finish for a neutral aesthetic
- Pre-punched knockouts (KO's) for easy cable entry
- N1 Series enclosure component
Specifications
Application | Designed for general purpose indoor commercial use as a junction, pull or switch box. |
Brand Name | Hammond Mfg. |
Cable Entry | Knock Outs |
Color | Gray |
Cubic Capacity | 768 Cubic in |
Cubic Capacity | 768 in3 |
Material | Steel |
Material | Mild Steel |
Material Quality | Mild Steel |
Mounting | Wall |
NEMA Rating | type-1 |
NEMA Rating | 1 |
Series | N1 |
Size | 16 x 12 x 4 inches |
Size | 16 in x 12 in x 4 in |
Special Features | Formed and spot welded from 16 or 14 gauge steel depending on size. Flat steel covers fastened with plated steel screws. Keyhole slots permit cover to be lifted off without removing screws entirely. Easily removed knockouts on all 4 sides (see drawings for sizes and locations). Through holes in back for wall mounting. Grounding location embossed in body. |
Standard | CSA, UL |
Sub Brand | CSKO Series |
Type | N1 Screw Cover w/KO's |
Package Dimensions (L x W x H) | 4.4 IN x 13.2 IN x 17.6 IN |
Package Dimensions (L x W x H) | 11.176 cm x 33.528 cm x 44.704 cm |
Package Weight (Imperial) | 12.000 L |
Package Weight (Metric) | 5.443 kg |
