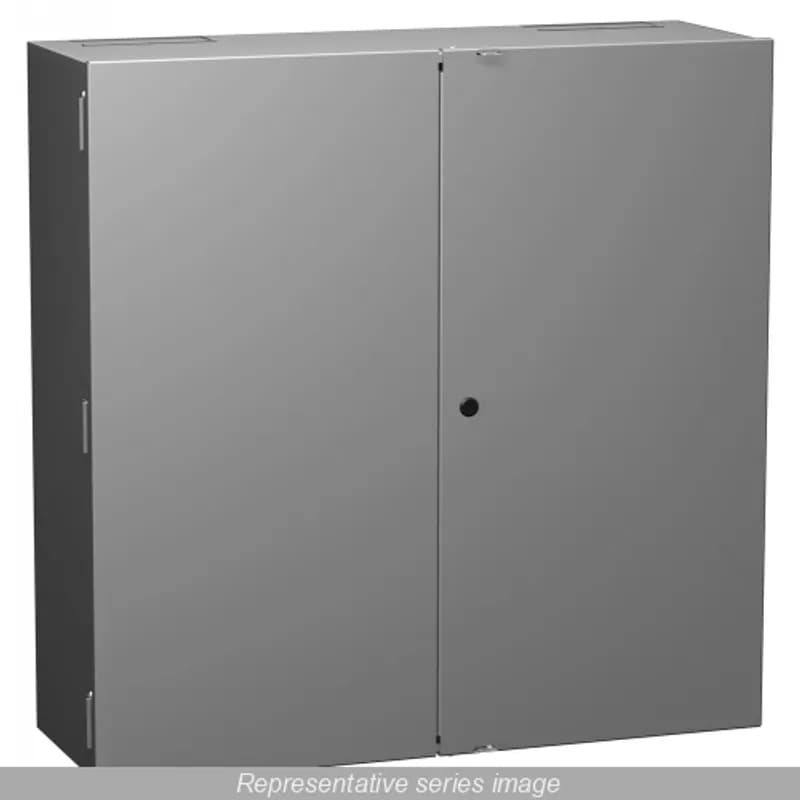

Hammond Manufacturing CMC363612 Type 1 Metering 2 Dr Cabinet - 36 x 36 x 12 - Steel/Gray
UPC: 623980261683
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Type 1 mild steel metering cabinet for indoor transformer housing
- Dimensions: 36" H x 36" W x 12" D
- 14-gauge steel construction with spot-welded seams and formed edges
- Double door with hasp and quarter-turn closure
- CSA Type 1 compliant and IEC 60529 IP20 rated
Specifications
Application | Designed for indoor housing of metering transformers. |
Brand Name | Hammond Mfg. |
Cable Entry | Plates |
Color | Gray |
Color | Grey |
Cubic Capacity | 15552 in3 |
IP Rating | IP20 |
Material | Mild Steel |
Material | Steel |
Material Quality | Mild Steel |
Mounting | Wall |
NEMA Rating | type-1 |
NEMA Rating | 1 |
NEMA Rating | Type 1 |
Size | 36x36x12 inches |
Size | 36 in x 36 in x 12 in |
Special Features | Formed and spot welded from 14 or 16 gauge steel. Spot welded construction and formed edges. Removable inner panel. Hinged covers. 2 cutouts in top of each cabinet with metering plates included. |
Standard | CSA |
Sub Brand | CMC Series |
Type | Type 1 Metering 2 Dr Cabinet |
Package Dimensions (L x W x H) | 13.2 IN x 39.6 IN x 39.6 IN |
Package Dimensions (L x W x H) | 33.528 cm x 100.584 cm x 100.584 cm |
Package Weight (Imperial) | 131.000 L |
Package Weight (Metric) | 59.422 kg |
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
Frequently Asked Questions
What is the CMC363612 enclosure made of and what is its finish?
The CMC363612 is constructed from 14 or 16 gauge mild steel and is finished in ANSI 61 gray inside and out.
What type of door closure does the CMC363612 have?
The CMC363612 features a double door with a hasp and quarter turn closure.
What are the dimensions of the CMC363612 enclosure and inner panel?
The enclosure dimensions are 36.00 in H x 36.00 in W x 12.00 in D, and the inner panel dimensions are 32.00 in H x 32.00 in W.
What is the intended application for the CMC Series metering cabinets?
These cabinets are designed for the indoor housing of metering transformers.
What standards does the CMC Series comply with?
The CMC Series complies with CSA Type 1 and IEC 60529, IP20 standards.
What is the finish of the inner panel for the CMC363612?
The inner panel of the CMC363612 is finished in white powder coating.
Does the CMC363612 come with metering plates?
Yes, the CMC363612 includes metering plates, as it is not the CMC271310 model which is an exception.
