Contact for Pricing

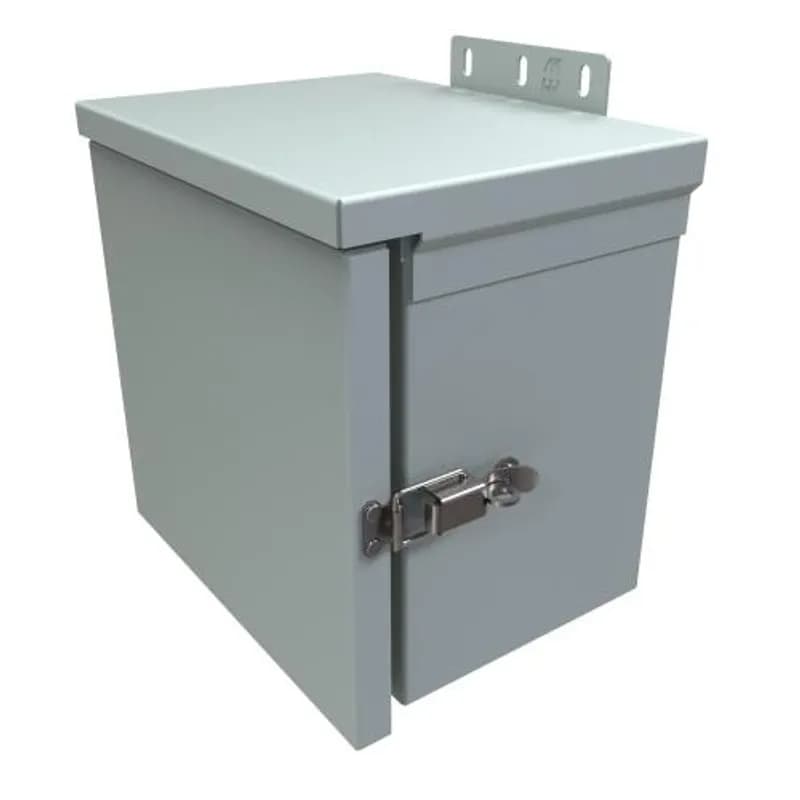

Overview
- NEMA Type 3R rated for outdoor protection against rain, sleet, and ice
- Hinge lift-off design enables quick access to internal components
- Galvanized steel construction resists corrosion in harsh environments
- Gray finish provides professional appearance and UV resistance
- Dimensions: 8" x 8" x 6" (W x D x H)
Specifications
Application | Designed for use as a wiring/junction box. Provides protection against rain, sleet, snow and dripping water |
Brand Name | Hammond Mfg. |
Color | Gray |
Cubic Capacity | 384 in3 |
Cubic Capacity | 384 Cubic in |
Material | Galvanized Steel |
Material Quality | Galvanized Steel |
Mounting | Wall |
Mounting Type | Hinge Lift-Off |
NEMA Rating | type-3r |
NEMA Rating | 3r |
NEMA Rating | Type 3R |
Size | 8 in x 8 in x 6 in |
Size | 8" x 8" x 6" |
Size | 8 x 8 x 6 inches |
Size | 8x8x6 inches |
Special Features | Formed and spot welded from 16 or 14 gauge galvanized steel. Extended height door and seam-free sides, front and back. Galvanized steel lift-off hinges with stainless steel pins. Cover fastened securely with zinc plated draw pull catches. Provisions for padlocking on zinc-plated draw pull catch. Embossed mounting holes on back. Seamless poured-in place gasket |
Standard | CSA, UL |
Sub Brand | C3R HCLO Series |
Type | Type 3R Painted Galvanized Steel Enclosure |
Package Dimensions (L x W x H) | 6.6 IN x 8.8 IN x 8.8 IN |
Package Dimensions (L x W x H) | 16.764 cm x 22.352 cm x 22.352 cm |
Package Weight (Imperial) | 7.000 L |
Package Weight (Metric) | 3.175 kg |
