Contact for Pricing
Overview
- Type 12 NEMA rating for industrial protection
- Heavy-duty 10-gauge steel construction with welded seams
- Freestanding design for versatile placement
- ANSI 61 gray powder coat finish for corrosion resistance
- Three-point latching door with padlock hasp and screw defeater
Specifications
Application | Designed to accept the following disconnect switches and circuit breakers: ABB Controls flange mounted variable depth operating mechanisms for disconnect switches and circuit breakers. Allen Bradley 1494F flange mounted disconnect switches and 1494D flange mounted operators for circuit breakers. Allen Bradley 1494V variable depth flange mounted disconnect switches and circuit breaker mechanisms. C-H Westinghouse type C361 disconnect switches and operator mechanism. Cutler Hammer Type C371 circuit breaker operating mechanisms. Flex-Shaft handle operators for circuit breakers. General Electric type STDA flange handles and variable depth operating mechanisms for disconnect switches and circuit breakers. Also Spectra-Flex cable operators for circuit breakers. Siemens I-T-E Max-Flex flange mounted variable depth operating handles for disconnect switches and circuit breakers. Square D disconnect switches and circuit breakers used with Class 9422 flange mounted variable depth operating mechanisms or cable mechanisms. These enclosures will not receive Class 9422 bracket mounted disconnect devices or class 9422TG1 or TG2 devices. |
Brand Name | Hammond Mfg. |
Color | Gray |
Cubic Capacity | 103309.6351 Cubic in |
Cubic Capacity | 103309.6351 in3 |
Material | Mild Steel |
Material Quality | Mild Steel |
Mounting | FLOOR |
NEMA Rating | type-12 |
NEMA Rating | 12 |
Size | 72.13 in x 79 in x 18.13 in |
Special Features | Formed from 10 gauge steel with smooth, continuously welded seams. Body stiffeners are provided in the larger enclosures for extra rigidity. Flange trough collar (FTC) around door opening excludes liquids and contaminants. Heavy duty lifting eyes are anchored into reinforced top corners. Removable doors are secured with heavy duty lift off hinges. Formed 10 gauge steel inner panels are provided on collar studs. Panel supports are provided. Center post is removable, providing easy panel installation. Heavy duty three point latching mechanism with heavy duty roller ends is provided for ease of door closing. Oil resistant gaskets are permanently secured. The right-hand door on all enclosures is the master door. Master door handle complete with screw defeater and padlock hasp. Slave door handle complete with padlock hasp. A mechanical interlock activated by the master door prevents the auxiliary door from being opened first. The universal flange cutout provides mounting for disconnect operators by use of the appropriate operator adaptor kit. A provision for mounting fluorescent lighting is provided. A bonding stud is provided in the door and a grounding stud is provided in the enclosure for each door. A literature pocket is provided for the inside of the door |
Standard | csa, ul, ce |
Sub Brand | UHD Series |

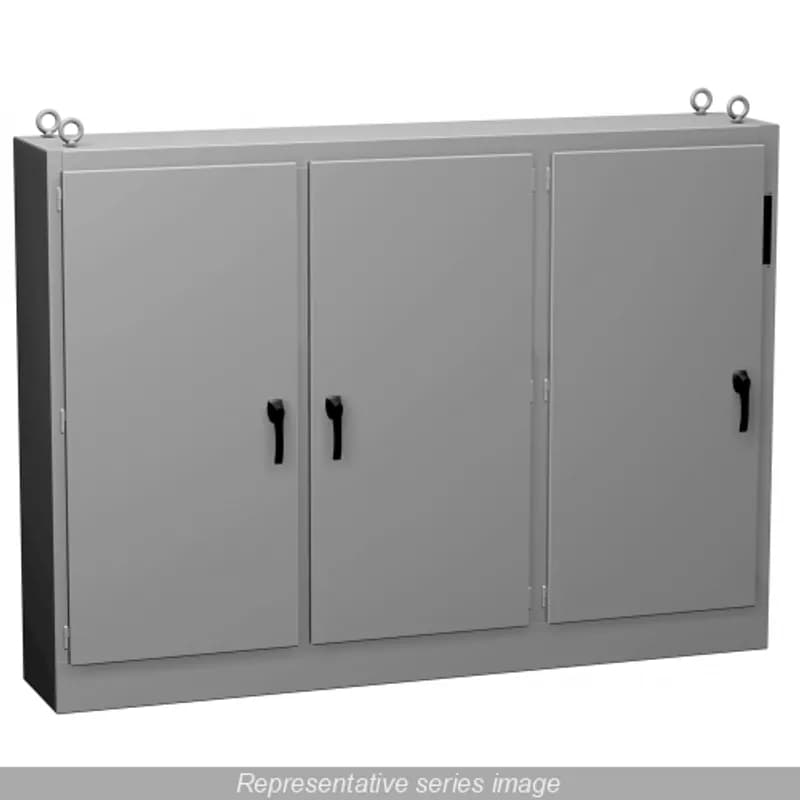

Type | Type 12 Mild Steel Multi-Door Freestanding Disconnect Enclosure |
Package Dimensions (L x W x H) | 19.94 IN x 86.9 IN x 79.34 IN |
Package Dimensions (L x W x H) | 50.6476 cm x 220.726 cm x 201.5236 cm |
