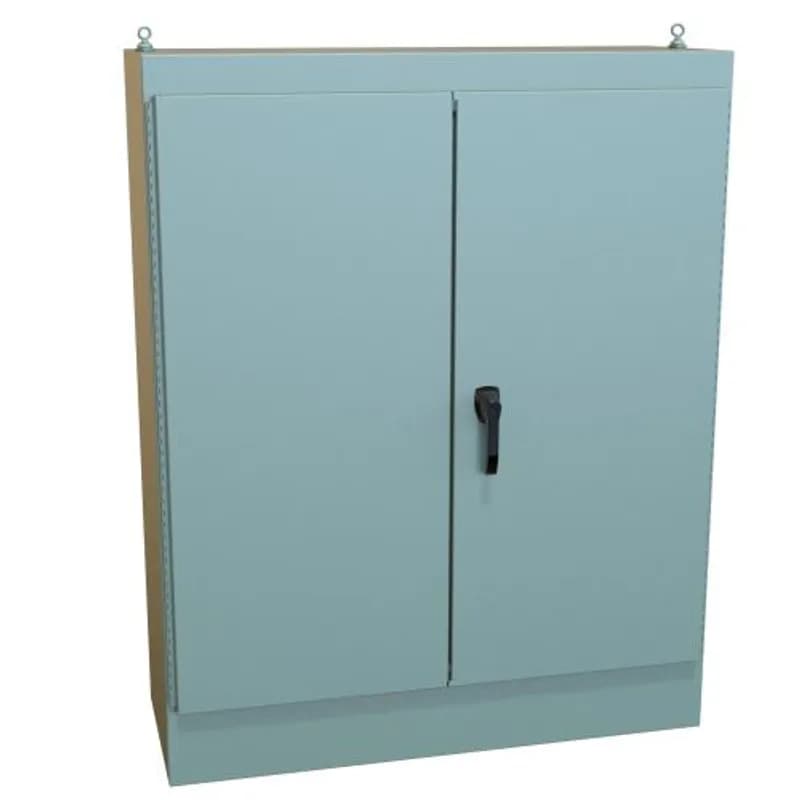

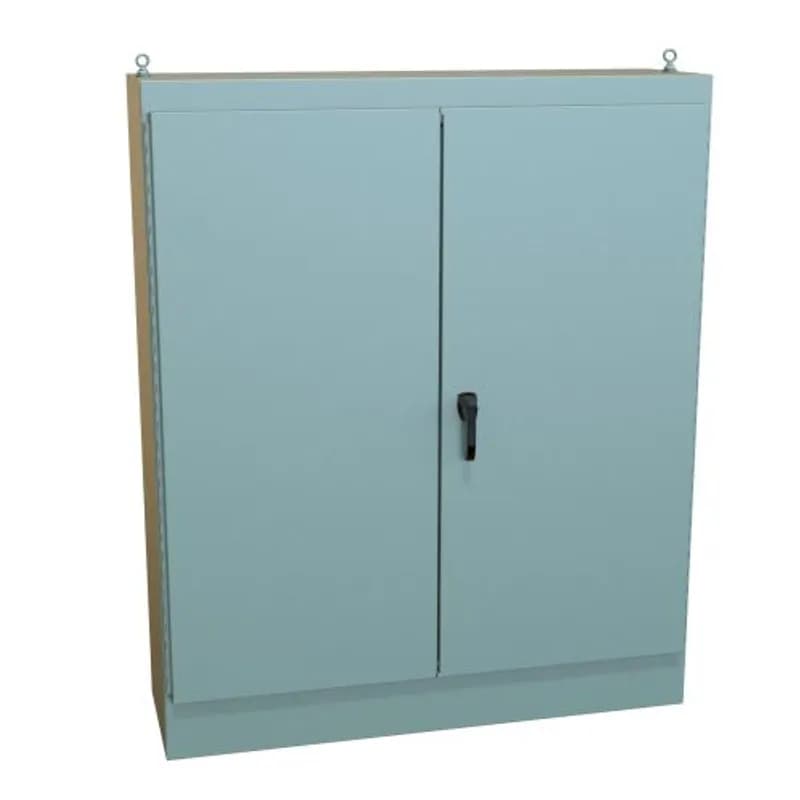

Overview
- Durable steel construction with gray finish
- Freestanding design for flexible placement
- Double-door configuration for easy access
- Dimensions: 72" H x 48" W x 18" D
- Ideal for industrial control panels and electrical components
Specifications
Application | Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mounting or rack mounting of equipment. Provides a degree of protection from falling dirt, dust, oil and water. Available with front access only or both front and rear access. A variety of inner panels, rack mounting angles and swing frames are available to provide flexibility in equipment mounting. |
Brand Name | Hammond Mfg. |
Color | Gray |
Cubic Capacity | 62545.457016 Cubic in |
Cubic Capacity | 62545.457016 in3 |
Material | Steel |
Material | Mild Steel |
Material Quality | Mild Steel |
Mounting | Freestanding |
Mounting Type | Freestanding |
NEMA Rating | type-12 |
NEMA Rating | 12 |
Series | N12 |
Size | 72 x 48 x 18 in |
Size | 72 x 48 x 18 inches |
Size | 72.06 in x 48.06 in x 18.06 in |
Special Features | Formed 12 gauge steel (10 gauge on back of single access enclosures). Smooth, continuously welded seams without knockouts, cutouts or holes. Stiffeners on the rear of the enclosure provide rigidity. (Single access) Lifting eyes provide for easy enclosure handling. Doors are supported with heavy gauge continuous hinges. Doors are secured with a three point latch and operated with a key locking automotive type handle. Latch rods are equipped with rollers for easier door closing. Oil resistant gaskets are permanently secured. Provision for light kit mounting. Mounting channels are welded on the inside of the enclosure for mounting of optional inner panels or rack equipment rails. A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door. A literature pocket is provided for the inside of the door (Two pockets are provided for dual access units). |
Standard | csa, ul, ce |
Sub Brand | 1418 FS Series |
Type | Type 12 Mild Steel Two Door Freestanding Enclosure |
Package Dimensions (L x W x H) | 19.87 IN x 52.87 IN x 79.27 IN |
Package Dimensions (L x W x H) | 50.4698 cm x 134.2898 cm x 201.3458 cm |
Package Weight (Imperial) | 440.000 L |
Package Weight (Metric) | 199.584 kg |
