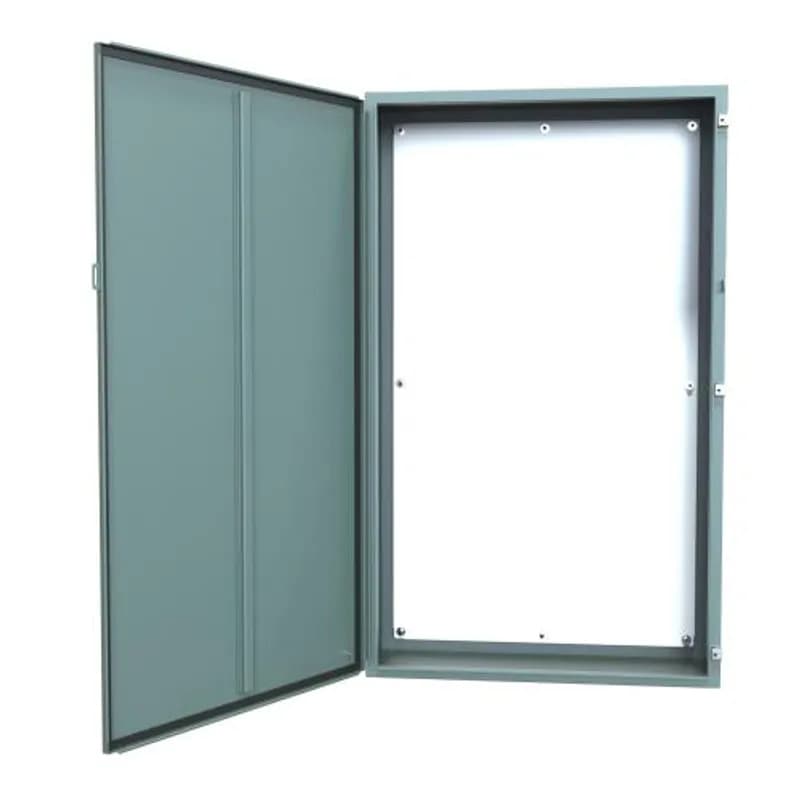

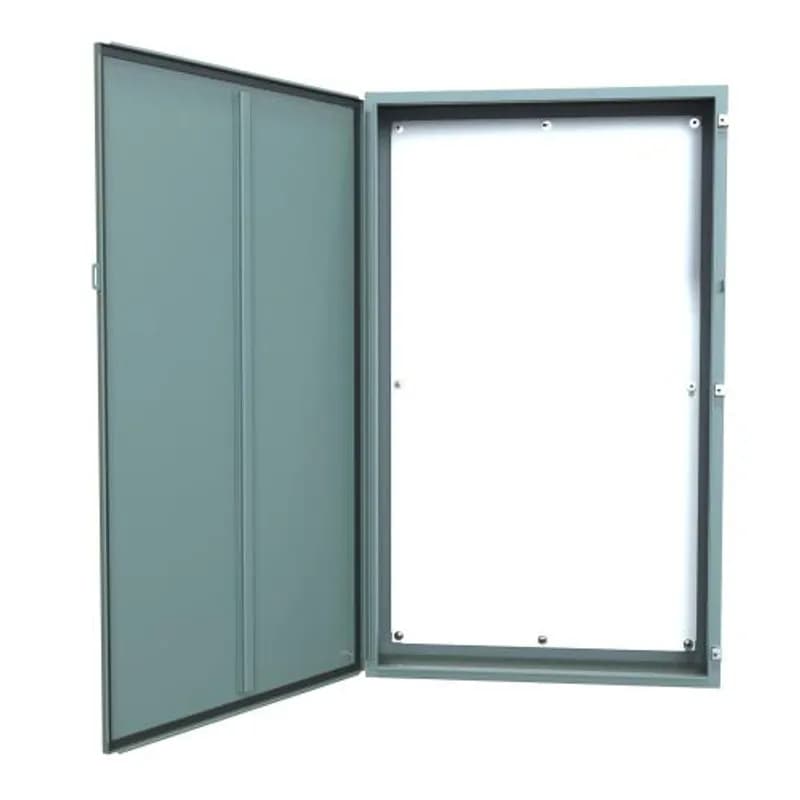

Overview
- NEMA 12 rated for protection against dust, dirt, and non-corrosive liquids
- Steel construction with gray powder-coat finish for corrosion resistance
- Freestanding design for flexible placement in industrial facilities
- Internal dimensions: 60" H x 24" W x 18" D (2592 cu in capacity)
- US-manufactured with durable construction for long-term reliability
Specifications
Application | Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mounting or rack mounting of equipment. Provides a degree of protection from falling dirt, dust, oil and water. Available with front access only or both front and rear access. A variety of inner panels, rack mounting rails and swing out frames are available to provide flexibility in mounting arrangements. |
Brand Name | Hammond Mfg. |
Color | Gray |
Cubic Capacity | 26097.487416 in3 |
Cubic Capacity | 26097.487416 Cubic in |
Material | Steel |
Material | Mild Steel |
Material Quality | Mild Steel |
Mounting | Freestanding |
Mounting Type | Freestanding |
NEMA Rating | type-12 |
Nema Rating | N12 |
Nema Rating | NEMA 12 |
NEMA Rating | 12 |
Series | N12 |
Size | 60 x 24 x 18 inches |
Size | 60x24x18 inches |
Size | 60.06 in x 24.06 in x 18.06 in |
Special Features | Formed 12 gauge steel. Smooth, continuously welded seams without knockouts, cutouts or holes. Lifting eyes provide for easy enclosure handling. Doors are supported with heavy gauge continuous hinges. Doors are secured with a three point latch and operated with a key locking automotive type handle. Latch rods are equipped with rollers for easier door closing. Oil resistant gaskets are permanently secured . Provision for light kit mounting. Mounting channels are welded on the inside of the enclosure for mounting of optional inner panels or rack equipment rails. A grounding stud is provided in the enclosure and a bonding stud is provided on the door. A literature pocket is provided for the inside of the door (Two pockets are provided for dual access units). |
Standard | csa, ul, ce |
Sub Brand | 1418 FS Series |
Type | N12 Freestanding Encl, Dbl Door |
Package Dimensions (L x W x H) | 19.87 IN x 26.47 IN x 66.07 IN |
Package Dimensions (L x W x H) | 50.4698 cm x 67.2338 cm x 167.8178 cm |
Package Weight (Imperial) | 238.000 L |
Package Weight (Metric) | 107.957 kg |
