Contact for Pricing

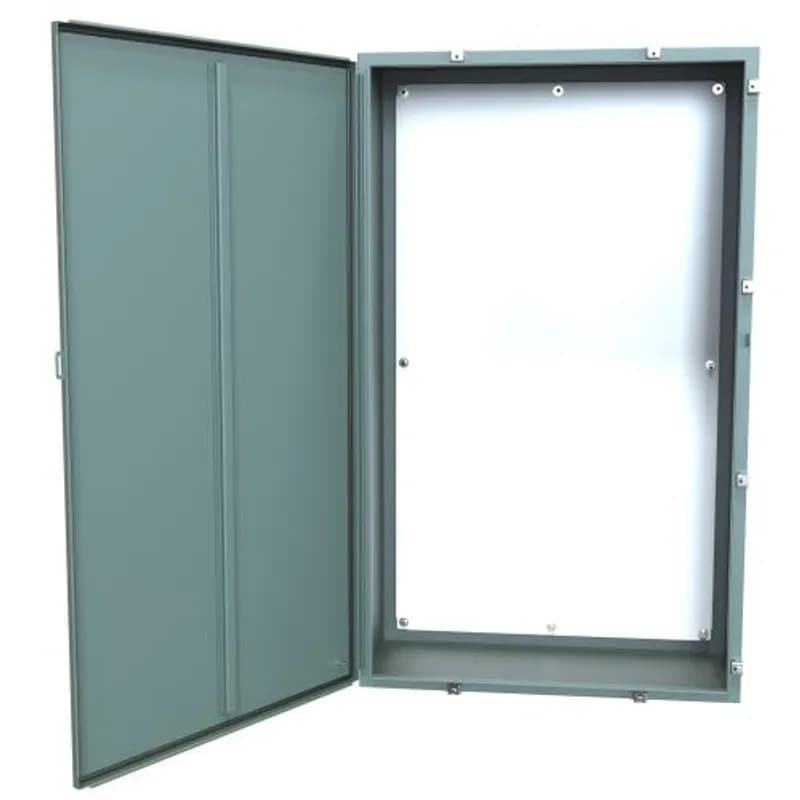

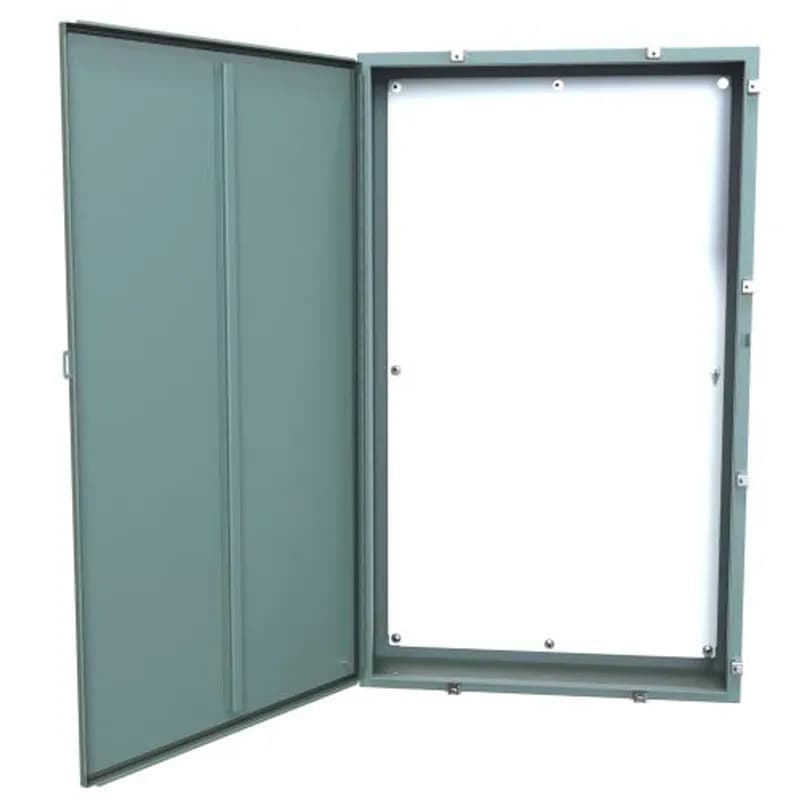

Overview
- NEMA 4 rated wallmount enclosure
- Constructed from durable steel
- Powder-coated gray finish
- Dimensions: 60" H x 36" W x 16" D
- Includes internal mounting panel
Specifications
Application | Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection. |
Brand Name | Hammond Mfg. |
Color | Gray |
Cubic Capacity | 34560 Cubic in |
Cubic Capacity | 34560 in3 |
Material | Mild Steel |
Material | Steel |
Material Quality | Mild Steel |
Mounting | Wall |
Mounting Type | Wallmount |
NEMA Rating | type-3r, type-13, type-4 |
NEMA Rating | 3R;4 |
Nema Rating | NEMA 4 |
Size | 60 in x 36 in x 16 in |
Size | 60x36x16 inches |
Special Features | Formed 14 gauge steel bodies and doors. Smooth, continuously welded seams without knockouts, cutouts or holes. Door and body stiffeners are provided in the larger enclosures for extra rigidity. Welded brackets provide for enclosure mounting. Formed lip on door and enclosure exclude flowing liquids and contaminants. Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin. Door is secured with easily operated stainless steel clamps. Provision for padlocking. Seamless poured-in place gasket. A removable 12 gauge inner panel is included. Collar studs are provided for mounting inner panels. A bonding stud is provided on the door and a grounding stud is provided in the enclosure. A literature pocket is provided for the inside of the door. |
Standard | csa, ul, ce |
Sub Brand | 1418 N4 Series |
Type | N4 Wallmount Encl w/panel |
Package Dimensions (L x W x H) | 17.6 IN x 39.6 IN x 66 IN |
Package Dimensions (L x W x H) | 44.704 cm x 100.584 cm x 167.64 cm |
Package Weight (Imperial) | 256.000 L |
Package Weight (Metric) | 116.122 kg |

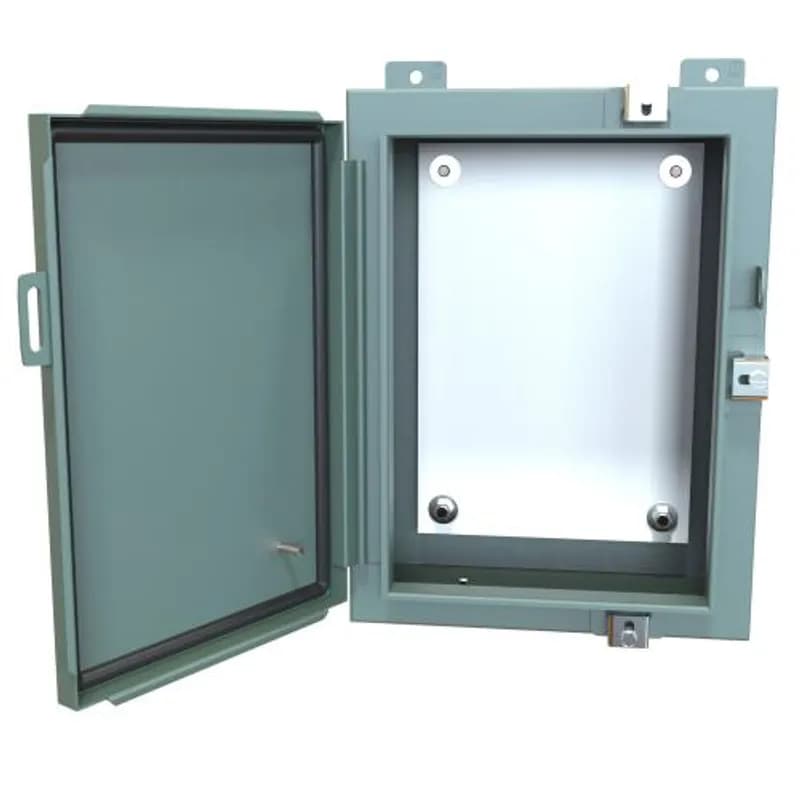

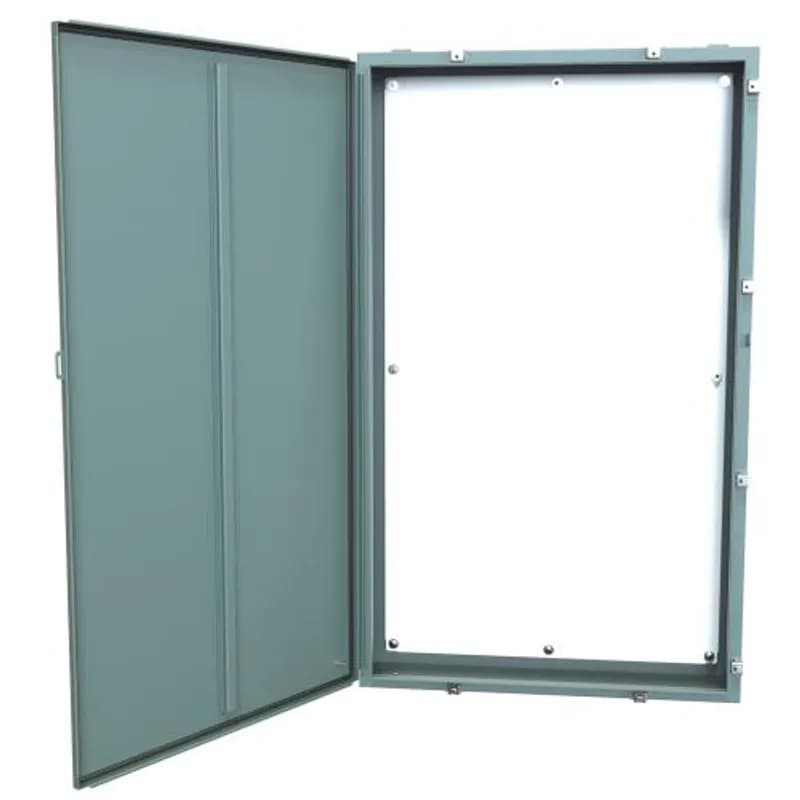

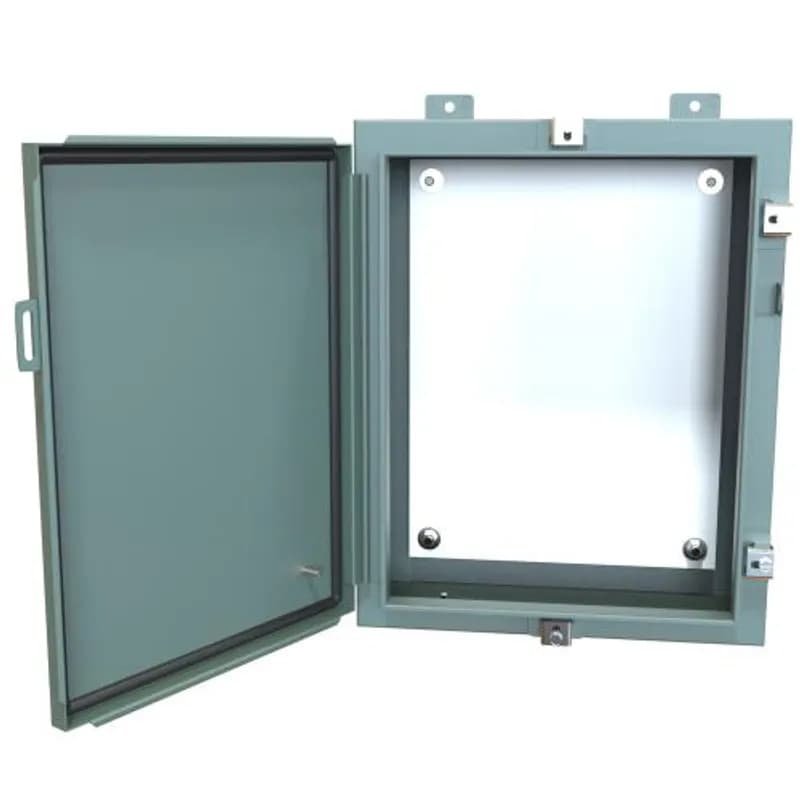

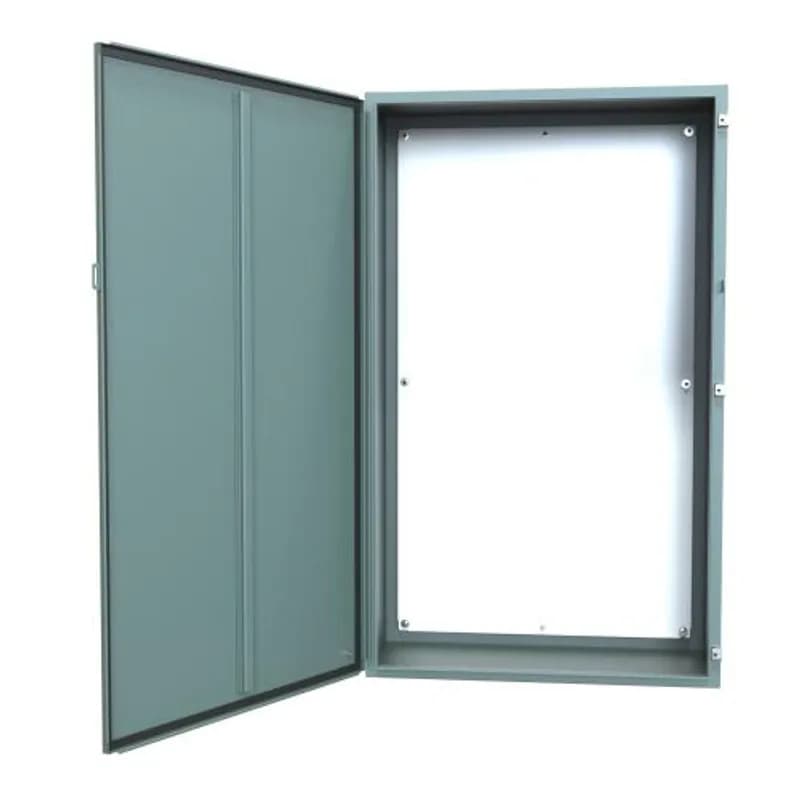

Similar Products
