CompleTech
CA140F2+
Contact for Pricing
Overview

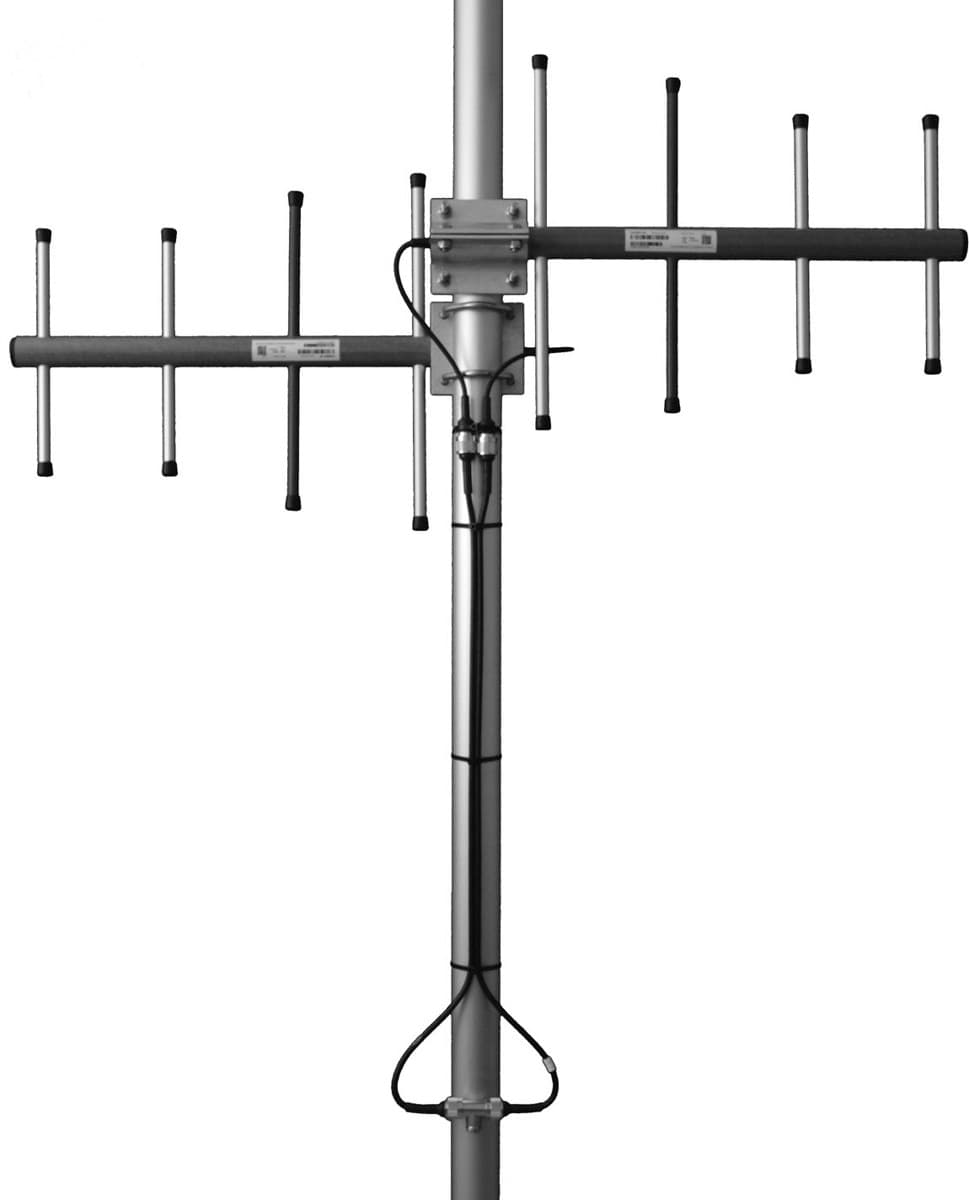

The CompleTech CA140F2+ is a directional end-fire Yagi array antenna engineered for reliable communication within the 135-145 MHz frequency range. This antenna features a substantial 7 dBi gain, providing focused signal transmission for applications requiring precise directional coverage. Its construction incorporates a durable ABS/FG PU foam radome, offering protection against environmental factors, and a high-conductivity copper radiator for optimal signal integrity. The CA140F2+ supports both vertical and horizontal polarization, allowing for flexible deployment strategies based on specific communication needs. Connectivity is facilitated by a versatile N-/TNC-female connector, ensuring secure and efficient signal transfer. A key performance indicator, the VSWR is maintained at less than 1.5, minimizing signal reflection and maximizing power transfer. Designed for straightforward installation, the antenna is compatible with pole diameters ranging from 35 mm to 60 mm. Its robust design can withstand a wind load of 342 N, ensuring stability in outdoor installations. The CompleTech CA140F2+ is an ideal choice for industrial, telecommunications, and specialized communication systems where directional gain and reliable performance are paramount. SKU: CA140F2+. Manufacturer: CompleTech. UNSPSC Code: 43221706. Country of Origin: FI.
- Directional end-fire Yagi array for focused 135-145 MHz communication
- 7 dBi gain for enhanced signal strength and range
- Supports both vertical and horizontal polarization for deployment flexibility
- Durable ABS/FG PU foam radome and copper radiator
- N-/TNC-female connector with VSWR <1.5 for efficient connectivity
Specifications
Connection Type | N-/TNC-female |
Connector | N-/TNC-female |
Frequency | 135-145 MHz |
Gain | 7 dBi |
Length | 2765 mm |
Material | ABS/FG PU foam, copper |
Material | copper, ABS, FG PU foam |
Material | copper, ABS/FG PU foam |
Mounting Diameter | Ø 35-60 |
Mounting Type | 35-60 mm diameter pole |
Polarization | vertical/horizontal |
Radiator Material | copper |
Radome | FG, PU foam |
Series | CA140F2+ |
VSWR | <1.5 |
Weight | 3430 g |
Wind Load | 342 N @ 150 km/h |

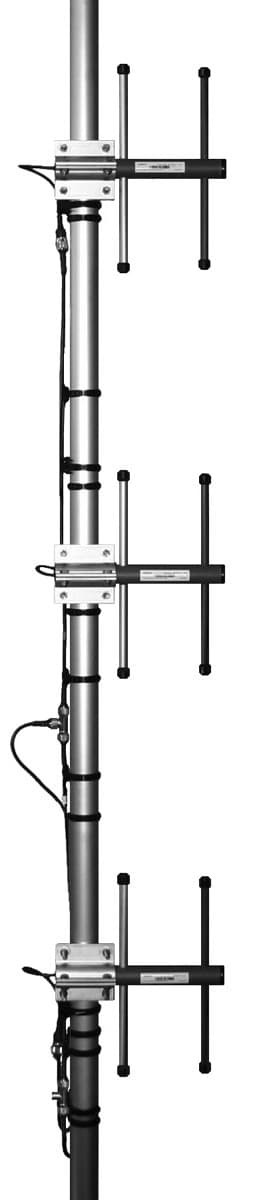

CA140S3
directional stacked yagi array - Frequency range: 135-145 MHz - Gain: 10 dBi - Polarization: vertical/horizontal - Connector: N-/TNC-female - VSWR: <1.5 - Radome: ABS/FG PU foam - Radiator material: copper - Mounting: 35-60 mm diameter pole - Wind load: 252 N
