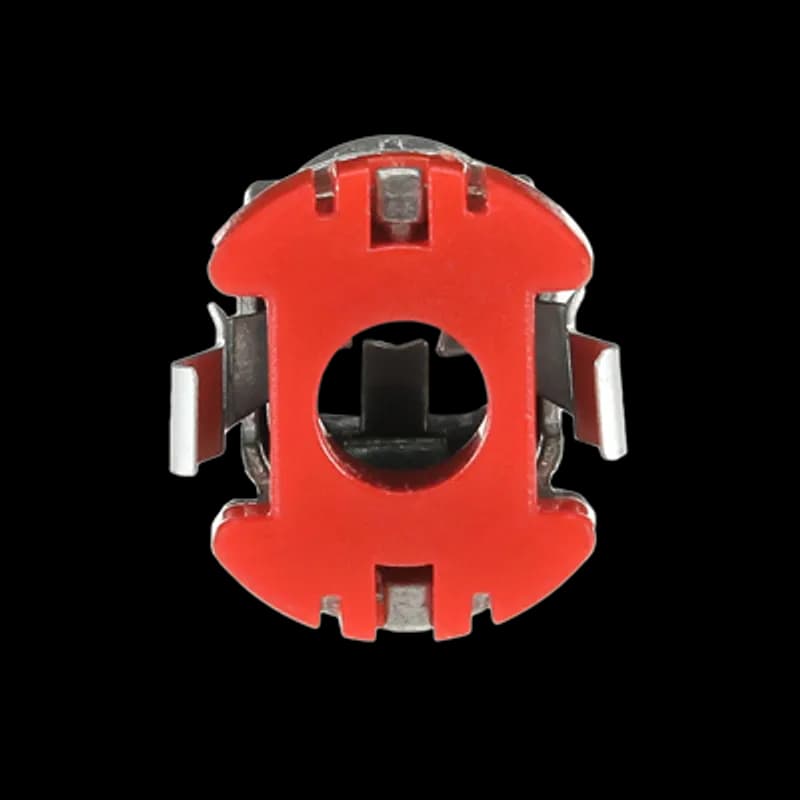

ABB - Installation Products XC-160 - "3/8 in Cut-in Double Snap Single Cable Connector for assembling in ""Old Work"" electrical box installations with armored cable or flexible metal conduit, Materials/Finishes: Body- Die Cast High-Strength Zinc Alloy, Clamp- Hardened Spring Steel Alloy Zinc Electroplated, Insulator- Plastic"
More images

ABB Installation Products XC-160 "3/8 in Cut-in Double Snap Single Cable Connector for assembling in ""Old Work""…

UPC: 708917419396


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Installation Products XC-160 is a 3/8 inch cut-in double snap single cable connector engineered for efficient assembly in "Old Work" electrical box installations. This connector is specifically designed to accommodate armored cable or flexible metal conduit, providing a secure and reliable termination point. The robust construction features a body crafted from die-cast high-strength zinc alloy, ensuring durability and resistance to physical stress. The clamping mechanism utilizes a hardened spring steel alloy, zinc electroplated for enhanced corrosion resistance and a firm grip on the cable. For added safety and insulation, the connector incorporates a high-quality plastic insulator. The XC-160 series from ABB Installation Products simplifies the process of retrofitting electrical systems in existing structures, offering a dependable solution for connecting armored cable and flexible metal conduit to junction boxes without the need for extensive modifications. Its snap-fit design facilitates quick and secure installation, making it an ideal choice for electricians and contractors working on renovation projects. The 3/8 inch size is optimized for common conduit and cable diameters encountered in residential and commercial retrofits. The combination of zinc alloy and hardened spring steel ensures long-term performance and electrical integrity. SKU: XC-160. UNSPSC Code: 39121311.
  • 3/8 inch cut-in double snap single cable connector
  • Designed for "Old Work" electrical box installations
  • Suitable for armored cable or flexible metal conduit
  • Body: Die Cast High-Strength Zinc Alloy
  • Clamp: Hardened Spring Steel Alloy Zinc Electroplated

Specifications

Application
Terminate one run of AC90/FMC into a knockout, For residential and commercial, Old work (cut-in) installations with armored cable or flexible metal conduit
Connection
Quick snap-in connection
Finish
Body: Die cast high-strength zinc alloy, Clamp: Hardened spring steel alloy zinc electroplated
Material
Body- Die Cast High-Strength Zinc Alloy, Clamp- Hardened Spring Steel Alloy Zinc Electroplated, Insulator- Plastic
Size
3/8 in
Special Features
Spring tabs – For use in knockouts, providing quick snap in connections saving time on installation – Provide a durable and secure connection – Helps with easy removal from knockout – No tool required for installation, Insulator helps isolate the wires when entering electrical box
Standard
UL 514B, CSA C22.2 No. 18.3
Type
Cut-in double snap for AC/FMC
Package Dimensions (L x W x H)
1.54 IN x 0.98 IN x 1.1 IN
Package Dimensions (L x W x H)
3.9116 cm x 2.4892 cm x 2.794 cm
Package Weight (Imperial)
0.0580 L
Package Weight (Metric)
0.0263 kg
Male Terminal Adapter, Size 1 Inch, Length 1.902 Inches, Outer Diameter 1.580 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

E943FRL

Male Terminal Adapter, Size 1 Inch, Length 1.902 Inches, Outer Diameter 1.580 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
BELT, TIMING, 55 TEETH

014489-014

BELT, TIMING, 55 TEETH
Entrance Cap, Threaded, Aluminum, Size 2-1/2 Inch

1207

Entrance Cap, Threaded, Aluminum, Size 2-1/2 Inch
KIT GREASE FITTING WITH EXTENSION

GF 440/500 145MM

KIT GREASE FITTING WITH EXTENSION
Female MIXO Metal Pneumatic pin, Straight quick-fitting, with shut-off valve, For tubes with OD of 4mm

CX-4.0MPQV

Female MIXO Metal Pneumatic pin, Straight quick-fitting, with shut-off valve, For tubes with OD of 4mm
QLine I 42mm Hardware Kit of 6

QIHK426

QLine I 42mm Hardware Kit of 6
3/8 in, 90 Degree Double Snap Squeeze Connector for Assembling in Electrical Box Installations With Metal Clad or Armored Cables, Materials/Finishes: Body- Die Cast High-Strength Zinc Alloy, Clamp- Zinc Electroplated Steel Alloy, Insulator- Plastic

XC-170

3/8 in, 90 Degree Double Snap Squeeze Connector for Assembling in Electrical Box Installations With Metal Clad or Armored Cables, Materials/Finishes: Body- Die Cast High-Strength Zinc Alloy, Clamp- Zinc Electroplated Steel Alloy, Insulator- Plastic
1/2 in, 90 Degree Double Snap Squeeze Connector for Assembling in Electrical Box Installations With Metal Clad or Armored Cables, Materials/Finishes: Body- Die Cast High-Strength Zinc Alloy, Clamp- Zinc Electroplated Steel Alloy, Insulator- Plastic

XC-180

1/2 in, 90 Degree Double Snap Squeeze Connector for Assembling in Electrical Box Installations With Metal Clad or Armored Cables, Materials/Finishes: Body- Die Cast High-Strength Zinc Alloy, Clamp- Zinc Electroplated Steel Alloy, Insulator- Plastic

Frequently Asked Questions

What type of cable can the XC-160 connector be used with?

The XC-160 connector is designed for use with armored cable or flexible metal conduit.

What material is the body of the XC-160 connector made from?

The body of the XC-160 connector is made from a die-cast high-strength zinc alloy.

What is the size of the XC-160 cable connector?

The XC-160 cable connector is 3/8 inch in size.

What is the mounting type for the XC-160 connector?

The XC-160 connector is designed for mounting in "Old Work" electrical box installations.

What is the clamp material for the XC-160 connector?

The clamp for the XC-160 connector is made of hardened spring steel alloy, zinc electroplated.
