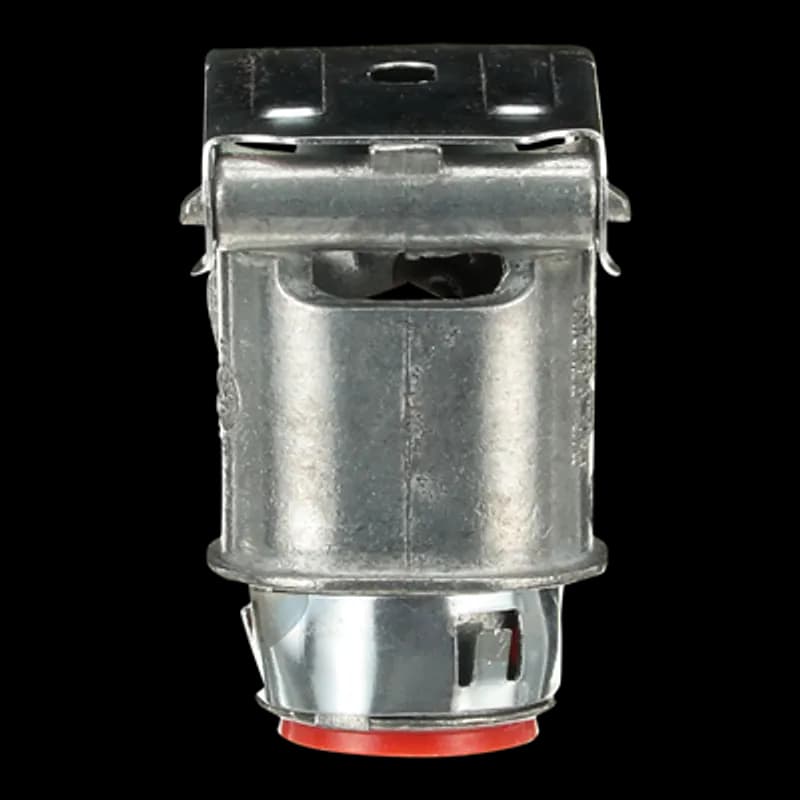

ABB - Installation Products XC-180 - 1/2 in, 90 Degree Double Snap Squeeze Connector for Assembling in Electrical Box Installations With Metal Clad or Armored Cables, Materials/Finishes: Body- Die Cast High-Strength Zinc Alloy, Clamp- Zinc Electroplated Steel Alloy, Insulator- Plastic
More images

ABB Installation Products XC-180 1/2 in, 90 Degree Double Snap Squeeze Connector for Assembling in Electrical Box…

UPC: 708917419419


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Installation Products XC-180 is a 1/2 inch, 90-degree double snap squeeze connector engineered for reliable assembly in electrical box installations. This connector is specifically designed for use with metal-clad (MC) or armored cables, ensuring secure and compliant connections in demanding electrical infrastructure projects. Constructed with a body made from die-cast high-strength zinc alloy, the XC-180 offers substantial durability and resistance to physical impact. The clamp mechanism utilizes a zinc electroplated steel alloy, providing a strong and corrosion-resistant grip on the cable armor. Integral to its design is a plastic insulator, which contributes to electrical safety by preventing accidental contact with live conductors. This connector facilitates a 90-degree angle for cable entry into electrical boxes, optimizing space and simplifying routing in confined areas. The double snap feature ensures a secure, tool-less connection, streamlining installation processes and reducing labor time. The UNSPSC code for this product is 39121311. ABB's commitment to quality in their Installation Products line is evident in the robust materials and functional design of the XC-180, making it a dependable choice for electricians and contractors working with armored cable systems.
  • 1/2 inch size for standard conduit and cable applications
  • 90-degree angle for efficient cable routing in electrical boxes
  • Double snap design for secure, tool-less installation
  • Die-cast high-strength zinc alloy body for durability
  • Zinc electroplated steel alloy clamp for reliable cable grip

Specifications

Application
Terminate two run of AC90/FMC into a knockout, for residential and commercial
Connection
Quick snap-in connection
Finish
Body: Die cast high-strength zinc alloy, Clamp: Zinc electroplated steel alloy
Material
Body- Die Cast High-Strength Zinc Alloy, Clamp- Zinc electroplated steel alloy, Insulator- Plastic
Size
1/2 in
Special Features
Spring tabs – For use in knockouts, providing quick snap in connections saving time on installation – No locknut required – Provide a durable and secure connection – Helps with easy removal from knockout, 90 degree angle helps provide easier installation in tight locations, No tool required for installation, Insulator helps isolate the wires when entering electrical box
Standard
UL 514B, CSA C22.2 No. 18.3
Type
90 Degree double snap squeeze connector
Package Dimensions (L x W x H)
2.05 IN x 1.24 IN x 1.93 IN
Package Dimensions (L x W x H)
5.207 cm x 3.1496 cm x 4.9022 cm
Package Weight (Imperial)
0.1190 L
Package Weight (Metric)
0.0540 kg
