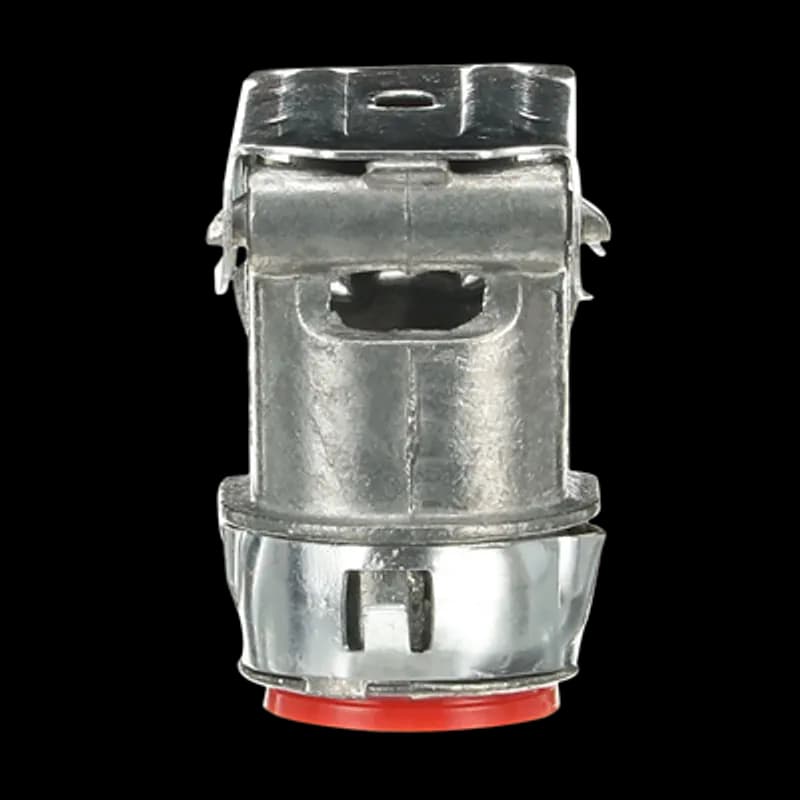

ABB - Installation Products XC-170 - 3/8 in, 90 Degree Double Snap Squeeze Connector for Assembling in Electrical Box Installations With Metal Clad or Armored Cables, Materials/Finishes: Body- Die Cast High-Strength Zinc Alloy, Clamp- Zinc Electroplated Steel Alloy, Insulator- Plastic
More images

ABB Installation Products XC-170 3/8 in, 90 Degree Double Snap Squeeze Connector for Assembling in Electrical Box…

UPC: 708917419402


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB XC-170 is a 3/8 inch, 90-degree double snap squeeze connector designed for efficient assembly in electrical box installations. This connector is specifically engineered to work with metal-clad (MC) or armored cables, providing a secure and reliable termination point. Constructed from a body of die-cast high-strength zinc alloy, the XC-170 offers robust durability for industrial applications. The clamp mechanism is made from zinc electroplated steel alloy, ensuring corrosion resistance and a firm grip on the cable armor. An integrated plastic insulator further enhances safety and electrical isolation. This connector facilitates straightforward installation, allowing electricians to quickly and confidently assemble electrical boxes when working with armored cable types. Its 90-degree configuration is ideal for managing cable entry and routing within confined electrical enclosures. The ABB XC-170 (SKU: XC-170) from ABB Installation Products is a practical component for ensuring safe and compliant electrical installations, particularly where armored cables are specified. Its material composition, featuring high-strength zinc alloy and electroplated steel, points to its suitability for environments requiring mechanical resilience and long-term performance. The double snap design simplifies the connection process, reducing assembly time and potential for errors.
  • 3/8 inch size for 90-degree double snap squeeze connection
  • Designed for metal-clad (MC) or armored cable installations
  • Body constructed from die-cast high-strength zinc alloy
  • Clamp made of zinc electroplated steel alloy for durability
  • Includes plastic insulator for enhanced safety

Specifications

Application
Terminate two run of AC90/FMC into a knockout, for residential and commercial
Connection
Quick snap-in connection
Connection Type
Snap Squeeze
Finish
Body: Die cast high-strength zinc alloy, Clamp: Zinc electroplated steel alloy
Material
Body- Die Cast High-Strength Zinc Alloy, Clamp- Zinc electroplated steel alloy, Insulator- Plastic
Material
Zinc Alloy (Body), Zinc Electroplated Steel Alloy (Clamp), Plastic (Insulator)
Mounting Type
Electrical Box Installations
Size
3/8 in
Special Features
Spring tabs – For use in knockouts, providing quick snap in connections saving time on installation – No locknut required – Provide a durable and secure connection – Helps with easy removal from knockout, 90 degree angle helps provide easier installation in tight locations, No tool required for installation, Insulator helps isolate the wires when entering electrical box
Standard
UL 514B, CSA C22.2 No. 18.3
Type
90 Degree double snap squeeze connector
Package Dimensions (L x W x H)
2.05 IN x 1.24 IN x 1.66 IN
Package Dimensions (L x W x H)
5.207 cm x 3.1496 cm x 4.2164 cm
Package Weight (Imperial)
0.0830 L
Package Weight (Metric)
0.0376 kg
Male Terminal Adapter, Size 1 Inch, Length 1.902 Inches, Outer Diameter 1.580 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

E943FRL

Male Terminal Adapter, Size 1 Inch, Length 1.902 Inches, Outer Diameter 1.580 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
BELT, TIMING, 55 TEETH

014489-014

BELT, TIMING, 55 TEETH
Entrance Cap, Threaded, Aluminum, Size 2-1/2 Inch

1207

Entrance Cap, Threaded, Aluminum, Size 2-1/2 Inch
KIT GREASE FITTING WITH EXTENSION

GF 440/500 145MM

KIT GREASE FITTING WITH EXTENSION
Female MIXO Metal Pneumatic pin, Straight quick-fitting, with shut-off valve, For tubes with OD of 4mm

CX-4.0MPQV

Female MIXO Metal Pneumatic pin, Straight quick-fitting, with shut-off valve, For tubes with OD of 4mm
QLine I 42mm Hardware Kit of 6

QIHK426

QLine I 42mm Hardware Kit of 6
1/2 in, 90 Degree Double Snap Squeeze Connector for Assembling in Electrical Box Installations With Metal Clad or Armored Cables, Materials/Finishes: Body- Die Cast High-Strength Zinc Alloy, Clamp- Zinc Electroplated Steel Alloy, Insulator- Plastic

XC-180

1/2 in, 90 Degree Double Snap Squeeze Connector for Assembling in Electrical Box Installations With Metal Clad or Armored Cables, Materials/Finishes: Body- Die Cast High-Strength Zinc Alloy, Clamp- Zinc Electroplated Steel Alloy, Insulator- Plastic
Female MIXO Metal Pneumatic pin, Right Angle quick-fitting, without shut-off valve, For tubes with OD of 3mm

CX-3.0MPAF

Female MIXO Metal Pneumatic pin, Right Angle quick-fitting, without shut-off valve, For tubes with OD of 3mm

Frequently Asked Questions

What type of cables is the XC-170 connector for?

The ABB XC-170 connector is designed for use with metal-clad (MC) or armored cables.

What material is the body of the XC-170 connector made from?

The body of the ABB XC-170 connector is constructed from a die-cast high-strength zinc alloy.

What is the clamp material for the XC-170 connector?

The clamp for the ABB XC-170 connector is made from zinc electroplated steel alloy.

Does the XC-170 connector include insulation?

Yes, the ABB XC-170 connector includes a plastic insulator for added safety.

What is the angle of the XC-170 double snap squeeze connector?

The ABB XC-170 is a 90-degree double snap squeeze connector.
