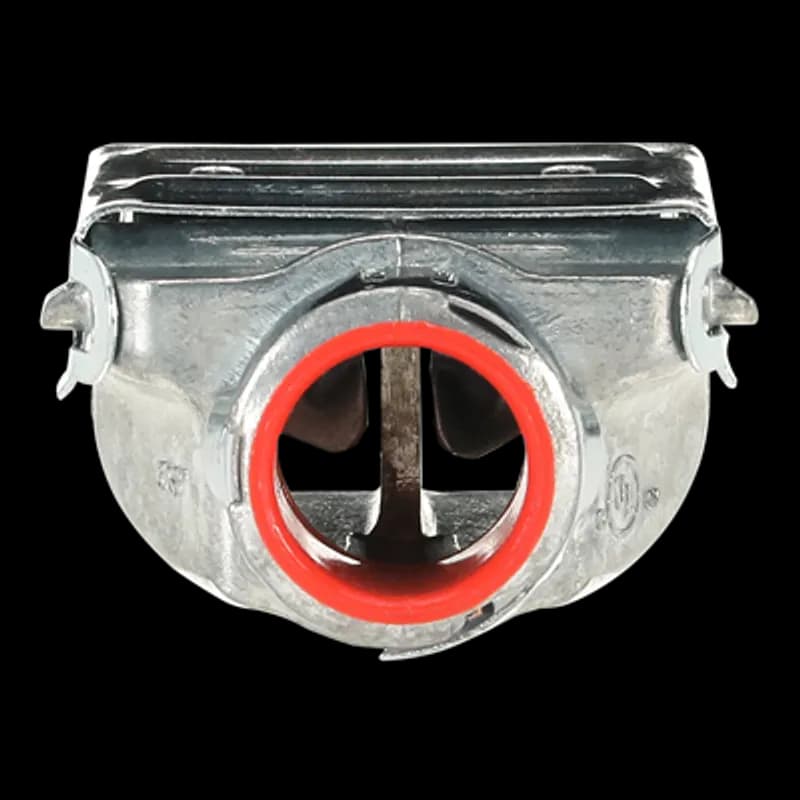

ABB - Installation Products XC-150 - 3/8 in Double Snap for 2 AC/MC for assembling in electrical box installations with metal clad or armored cables, Materials/Finishes: Body- Die Cast High-Strength Zinc Alloy, Clamp- Zinc Electroplated Steel Alloy, Insulator- Plastic
More images

ABB Installation Products XC-150 3/8 in Double Snap for 2 AC/MC for assembling in electrical box installations with metal…

UPC: 708917419389


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB XC-150 is a 3/8-inch double snap clamp designed specifically for assembling two armored (AC) or metal-clad (MC) cables in electrical box installations. The clamp features a body constructed from high-strength die-cast zinc alloy, providing exceptional durability and resistance to mechanical stress, while the clamp itself is made from zinc electroplated steel alloy to ensure long-lasting corrosion resistance in demanding environments. An included plastic insulator delivers reliable electrical insulation and cable protection, preventing abrasion and maintaining separation between conductors. This clamp is engineered for compatibility with standard 3/8-inch knockouts, allowing for secure attachment to electrical boxes without additional hardware. Its design accommodates two AC/MC cables simultaneously, streamlining installation in residential, commercial, and industrial applications where space and efficiency are critical. The robust construction and compact form factor make the XC-150 particularly well-suited for use with metal clad or armored cables, ensuring stable cable retention and reducing strain on connections. Suitable for both new installations and retrofits, this clamp simplifies cable management while maintaining compliance with electrical safety standards.
  • 3/8 in double snap clamp for 2 AC/MC cables
  • High-strength die-cast zinc alloy body
  • Zinc electroplated steel clamp for corrosion resistance
  • Plastic insulator for electrical insulation
  • Compatible with metal clad or armored cables

Specifications

Application
Terminate two runs of AC90/FMC into a knockout, for residential and commercial
Connection
Quick snap-in connection
Finish
Body: Die cast high-strength zinc alloy, Clamp: Zinc electroplated steel alloy
Material
Body- Die Cast High-Strength Zinc Alloy, Clamp- Zinc electroplated steel alloy, Insulator- Plastic
Size
3/8 in
Special Features
Spring tabs – For use in knockouts, providing quick snap in connections saving time on installation – Provide a durable and secure connection – Helps with easy removal from knockout, No tool required for installation, Insulator helps isolate the wires when entering electrical box
Standard
UL 514B, CSA C22.2 No. 18.3
Type
Double snap for 2 AC/MC
Package Dimensions (L x W x H)
2.1 IN x 1.58 IN x 0.87 IN
Package Dimensions (L x W x H)
5.334 cm x 4.0132 cm x 2.2098 cm
Package Weight (Imperial)
0.1210 L
Package Weight (Metric)
0.0549 kg
Male Terminal Adapter, Size 1 Inch, Length 1.902 Inches, Outer Diameter 1.580 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

E943FRL

Male Terminal Adapter, Size 1 Inch, Length 1.902 Inches, Outer Diameter 1.580 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
BELT, TIMING, 55 TEETH

014489-014

BELT, TIMING, 55 TEETH
Entrance Cap, Threaded, Aluminum, Size 2-1/2 Inch

1207

Entrance Cap, Threaded, Aluminum, Size 2-1/2 Inch
KIT GREASE FITTING WITH EXTENSION

GF 440/500 145MM

KIT GREASE FITTING WITH EXTENSION
Female MIXO Metal Pneumatic pin, Straight quick-fitting, with shut-off valve, For tubes with OD of 4mm

CX-4.0MPQV

Female MIXO Metal Pneumatic pin, Straight quick-fitting, with shut-off valve, For tubes with OD of 4mm
QLine I 42mm Hardware Kit of 6

QIHK426

QLine I 42mm Hardware Kit of 6
"3/8 in Cut-in Double Snap Single Cable Connector for assembling in ""Old Work"" electrical box installations with armored cable or flexible metal conduit, Materials/Finishes: Body- Die Cast High-Strength Zinc Alloy, Clamp- Hardened Spring Steel Alloy Zinc Electroplated, Insulator- Plastic"

XC-160

"3/8 in Cut-in Double Snap Single Cable Connector for assembling in ""Old Work"" electrical box installations with armored cable or flexible metal conduit, Materials/Finishes: Body- Die Cast High-Strength Zinc Alloy, Clamp- Hardened Spring Steel Alloy Zinc Electroplated, Insulator- Plastic"
3/8 in, 90 Degree Double Snap Squeeze Connector for Assembling in Electrical Box Installations With Metal Clad or Armored Cables, Materials/Finishes: Body- Die Cast High-Strength Zinc Alloy, Clamp- Zinc Electroplated Steel Alloy, Insulator- Plastic

XC-170

3/8 in, 90 Degree Double Snap Squeeze Connector for Assembling in Electrical Box Installations With Metal Clad or Armored Cables, Materials/Finishes: Body- Die Cast High-Strength Zinc Alloy, Clamp- Zinc Electroplated Steel Alloy, Insulator- Plastic

Frequently Asked Questions

What is the clamp made from?

The clamp is made from zinc electroplated steel alloy.

Is the XC-150 suitable for electrical box installations?

Yes, the XC-150 is designed for assembling in electrical box installations.

What is the body material of the XC-150?

The body is made from high-strength die-cast zinc alloy.

What cable types does the XC-150 support?

The XC-150 supports armored (AC) and metal-clad (MC) cables.

Can the XC-150 be used with metal clad cables?

Yes, the XC-150 is compatible with metal clad or armored cables.
