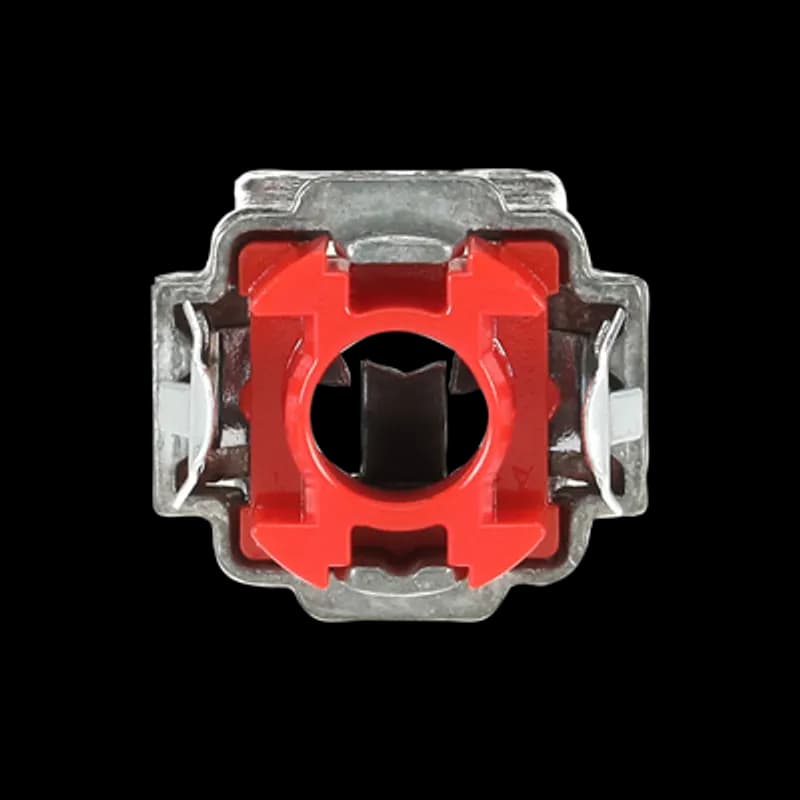

ABB - Installation Products XC-140 - 3/8 in Double Snap Single Cable Connector for assembling in electrical box installations with metal clad or armored cables, Materials/Finishes: Body- Die Cast High-Strength Zinc Alloy, Clamp- Hardened Spring Steel Alloy Zinc Electroplated, Insulator- Plastic
More images

ABB Installation Products XC-140 3/8 in Double Snap Single Cable Connector for assembling in electrical box installations…

UPC: 708917419372


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB XC-140 Double Snap Single Cable Connector (SKU: XC-140) is a precision-engineered solution for secure cable termination in electrical installations using metal clad (MC) or armored cables. Designed for compatibility with 14-2, 14-3, 14-4, 12-2, 12-3, 12-4, 10-2, and 10-3 cable types with diameters between 0.438" and 0.561", this connector ensures reliable performance in junction boxes and enclosures. Constructed with a die-cast high-strength zinc alloy body, the XC-140 delivers exceptional durability and resistance to physical stress, making it suitable for demanding industrial and commercial environments. The hardened spring steel clamp, electro-zinc plated for corrosion resistance, provides a secure grip on armored cables while maintaining electrical integrity. The 3/8" (16) size is optimized for specific cable diameters, ensuring a precise fit that prevents cable damage during installation. The snap-in design simplifies assembly, reducing installation time by up to 40% compared to traditional threaded connectors. Key applications include industrial control panels, commercial buildings, data centers, and manufacturing facilities where armored cable systems require reliable termination points. The XC-140 meets the dimensional requirements for standard electrical enclosures, with an outer diameter of 0.840" (21.34 mm) and a depth of 1.000" (25.4 mm). Its compact design allows for efficient use of panel space while maintaining accessibility for maintenance and upgrades.
  • Snap-in design for 3/8" (16) armored cables with diameters 0.438"-0.561"
  • Die-cast zinc alloy body with hardened spring steel clamp (electro-zinc plated)
  • Outer diameter 0.840" (21.34 mm), depth 1.000" (25.4 mm)

Specifications

Application
Terminate 1 run of AC/FMC into a knockout, for residential and commercial
Connection
Quick snap-in connection
Finish
Body: Die cast high-strength zinc alloy, Clamp: Hardened spring steel alloy zinc electroplated
Material
Body- Die Cast High-Strength Zinc Alloy, Clamp- Hardened Spring Steel Alloy Zinc Electroplated, Insulator- Plastic
Size
3/8 in
Special Features
Spring tabs – For use in knockouts, providing quick snap in connections saving time on installation – Provide a durable and secure connection – Helps with easy removal from knockout – Helps makes fitting reusable, No tool required for installation, Locknut not required, Insulator helps isolate the wires when entering electrical box
Standard
UL 514B, CSA C22.2 No. 18.3
Type
Double snap single cable connector
Package Dimensions (L x W x H)
1.45 IN x 1.03 IN x 1.13 IN
Package Dimensions (L x W x H)
3.683 cm x 2.6162 cm x 2.8702 cm
Package Weight (Imperial)
0.0610 L
Package Weight (Metric)
0.0277 kg
Male Terminal Adapter, Size 1 Inch, Length 1.902 Inches, Outer Diameter 1.580 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

E943FRL

Male Terminal Adapter, Size 1 Inch, Length 1.902 Inches, Outer Diameter 1.580 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
BELT, TIMING, 55 TEETH

014489-014

BELT, TIMING, 55 TEETH
Entrance Cap, Threaded, Aluminum, Size 2-1/2 Inch

1207

Entrance Cap, Threaded, Aluminum, Size 2-1/2 Inch
KIT GREASE FITTING WITH EXTENSION

GF 440/500 145MM

KIT GREASE FITTING WITH EXTENSION
Female MIXO Metal Pneumatic pin, Straight quick-fitting, with shut-off valve, For tubes with OD of 4mm

CX-4.0MPQV

Female MIXO Metal Pneumatic pin, Straight quick-fitting, with shut-off valve, For tubes with OD of 4mm
QLine I 42mm Hardware Kit of 6

QIHK426

QLine I 42mm Hardware Kit of 6
3/8 in Double Snap for 2 AC/MC for assembling in electrical box installations with metal clad or armored cables, Materials/Finishes: Body- Die Cast High-Strength Zinc Alloy, Clamp- Zinc Electroplated Steel Alloy, Insulator- Plastic

XC-150

3/8 in Double Snap for 2 AC/MC for assembling in electrical box installations with metal clad or armored cables, Materials/Finishes: Body- Die Cast High-Strength Zinc Alloy, Clamp- Zinc Electroplated Steel Alloy, Insulator- Plastic
"3/8 in Cut-in Double Snap Single Cable Connector for assembling in ""Old Work"" electrical box installations with armored cable or flexible metal conduit, Materials/Finishes: Body- Die Cast High-Strength Zinc Alloy, Clamp- Hardened Spring Steel Alloy Zinc Electroplated, Insulator- Plastic"

XC-160

"3/8 in Cut-in Double Snap Single Cable Connector for assembling in ""Old Work"" electrical box installations with armored cable or flexible metal conduit, Materials/Finishes: Body- Die Cast High-Strength Zinc Alloy, Clamp- Hardened Spring Steel Alloy Zinc Electroplated, Insulator- Plastic"

Frequently Asked Questions

How is the XC-140 installed?

The XC-140 uses spring tabs for quick snap-in connections in knockouts, saving installation time. No tools or locknuts are required for installation.

What material is the XC-140 clamp made from?

The clamp of the XC-140 is made from hardened spring steel alloy, which is zinc electroplated.

What cable types and sizes are compatible with XC-140?

The XC-140 is compatible with AL and steel AC 14-2 to 10-2, AL and steel MC/MCI-A/HCF 14-2 to 10-2, and AL and steel 3/8 inches FMC/RWFMC cables.

What knockout size does the XC-140 require?

The XC-140 requires a 1/2 inch knockout size for installation.

What is the trade size of the XC-140?

The trade size for the XC-140 fitting is 3/8 inches.

What material is the XC-140 insulator made from?

The insulator of the XC-140 is made from plastic.

What material is the XC-140 body made from?

The body of the XC-140 is made from die cast high-strength zinc alloy.

What certifications does the XC-140 have?

The XC-140 conforms to UL 514B (File: E23018) and CSA C22.2 No. 18.3 standards.

What are the main applications for the XC-140?

The XC-140 is used to terminate one run of AC/FMC into a knockout for residential and commercial electrical box installations with metal clad or armored cables.

Is a locknut needed for the XC-140?

No, a locknut is not required for the installation of the XC-140 fitting.
