UPC: 786210835037
Contact for Pricing
Overview

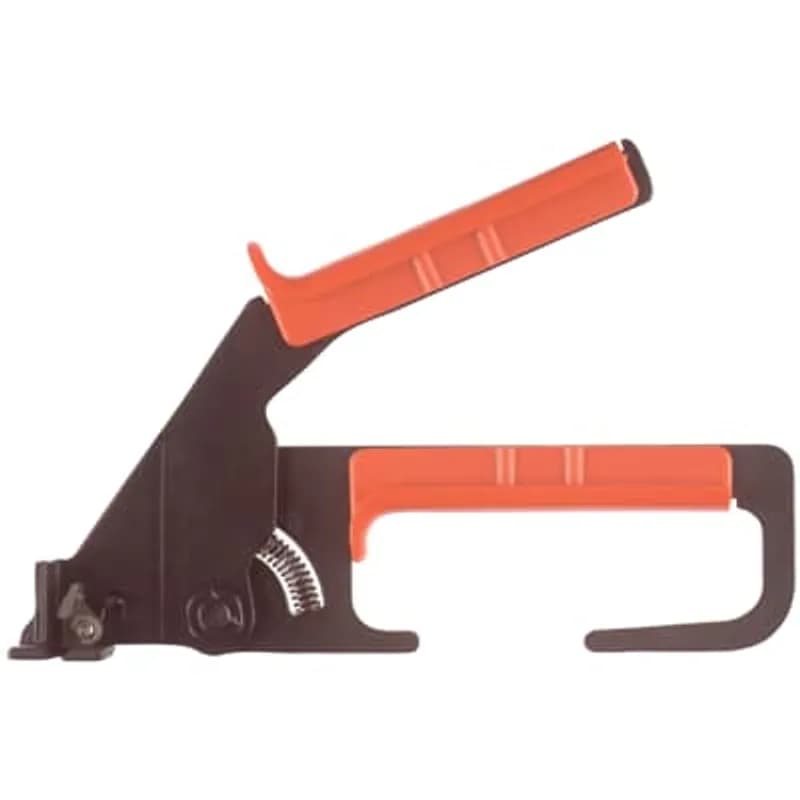

- Installs self-locking Ty-Rap® cable ties, lashing ties, and Deltec® System components.
- Features a simple twist-handle mechanism for quick strapping cutoff.
- Compatible with Deltec® strapping sizes from .184 to .500 inches.
- Lightweight design at 8 oz. for comfortable manual operation.
- Manufactured by ABB Installation Products for reliable performance.
Specifications
Application | Cable Tie installation |
Cable Tie Material | Plastic |
Cable Tie Width | 0.18 to 0.5 in , 4.67 to 12.7 mm |
Handle Type | Palm Grip |
Special Features | Tensioning tool with manual cutting. Designed for both self-locking and lashing ties |
Type | Deltec Hand Tool |
Package Dimensions (L x W x H) | 3.5 IN x 1.1 IN x 7.1 IN |
Package Dimensions (L x W x H) | 8.89 cm x 2.794 cm x 18.034 cm |
Package Weight (Imperial) | 0.5000 L |
Package Weight (Metric) | 0.2270 kg |
ERG120-HEAD
Replacement Head For ERG120 Ergonomic Hand Tool for Nylon Cable Ties 50-120 Pounds - Replacement Head for Cable Tie Gun ERG120
PBTMT
The PBTMT Battery Powered Installation Tool provides an ergonomic and compact, lightweight body, reducing operator fatigue. The automatic flush cut off enhances productivity with the easy one-hand installation. The cable tie side entry allows for quick side entry of the cable tie into the tool for increased speed installation. The 360-degree rotating head allows access to confined spaces, and the controlled tension mechanism provides consistent installations.
22298

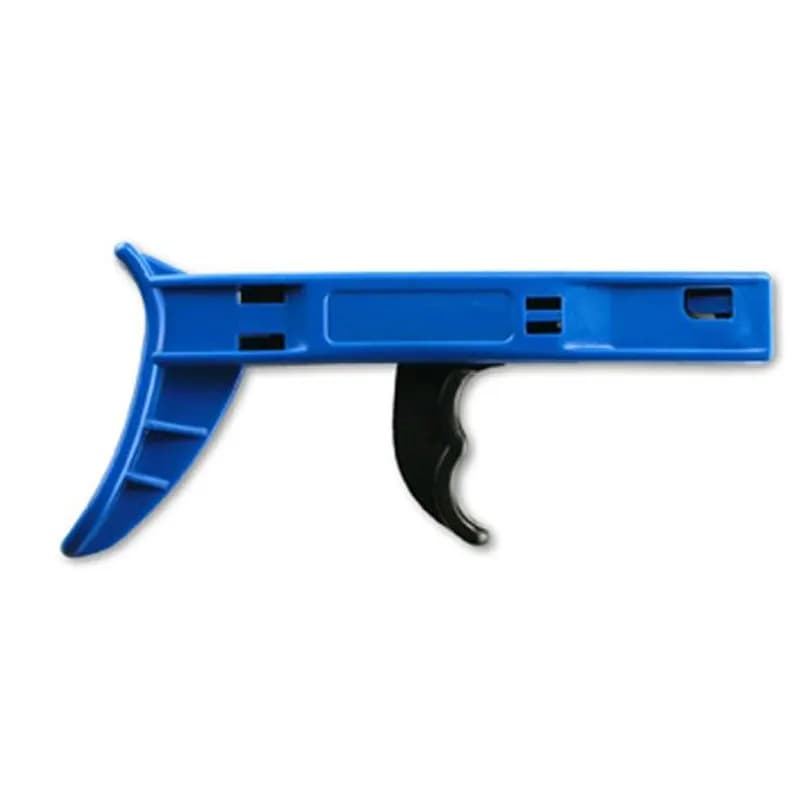

This is a cable tie gun used to quickly tension and cut off excess zip tie straps. It is intended for 18 to 40 lb nylon cable ties. The tool is made of steel and plastic.Frequently Asked Questions
What type of product is described in this document?
This document describes various installation tools designed for applying and securing cable ties.
What type of product is described in this document?
This document describes various installation tools designed for applying and securing cable ties.
What type of product is described in this document?
This document describes various installation tools designed for applying and securing cable ties.
What type of product is described in this document?
This document describes various installation tools designed for applying and securing cable ties.
What type of product is described in this document?
This document describes various installation tools designed for applying and securing cable ties.
What are the main functions of the installation tools?
The tools tension and cut the cable tie tail off flush, and feature easy tension adjustment for precise application.
How does the tool prevent over-tightening of cable ties?
The tool automatically cuts away the cable tie tail if the tension limit is exceeded, preventing over-tightening and damage.
Is the installation tool designed for left or right-handed users?
The installation tool is designed for use by both left- and right-handed operators, ensuring versatility.
What materials are used in the lightweight installation tool?
The lightweight installation tool is constructed from high-impact polymer and steel components.
Is the installation tool designed for left or right-handed users?
The installation tool is designed for use by both left- and right-handed operators, ensuring versatility.
How to Use the WT3D Cable Tie Installation Tool
This guide provides step-by-step instructions for effectively using the WT3D tool to install self-locking Ty-Rap cable ties and T&B two-piece lashing ties, ensuring proper tension and clean cuts.
Estimated time: 5m
Tools needed:
WT3D Cable Tie Installation Tool
Supplies needed:
Ty-Rap Cable Ties, Wire Bundles
- Prepare the Cable Tie and Tool
Place the WT3D tool on the cable tie as shown in Figure 2, ensuring the tie is positioned correctly for tightening around the wire bundle. Always wear safety goggles when using the tool.
- Tighten the Cable Tie
Squeeze the handle of the WT3D tool repeatedly until the cable tie reaches the desired tension around the wire bundle. Exercise caution not to overtighten the tie, as this can damage the bundle or the tie itself. Keep fingers away from the front of the tool to avoid pinch points.
- Cut Off Excess Tie
Release the handle pressure to the minimum necessary to hold the nose of the tool against the tie head. Rotate the tool 1/2 turn in either direction, then squeeze the handle again to pull and cut off the excess tail from the tie, ensuring a clean finish.
