ABB - Installation Products WTAE200 - Hand Tool For Reusable and Multi-lok Stainless Steel Cable Ties

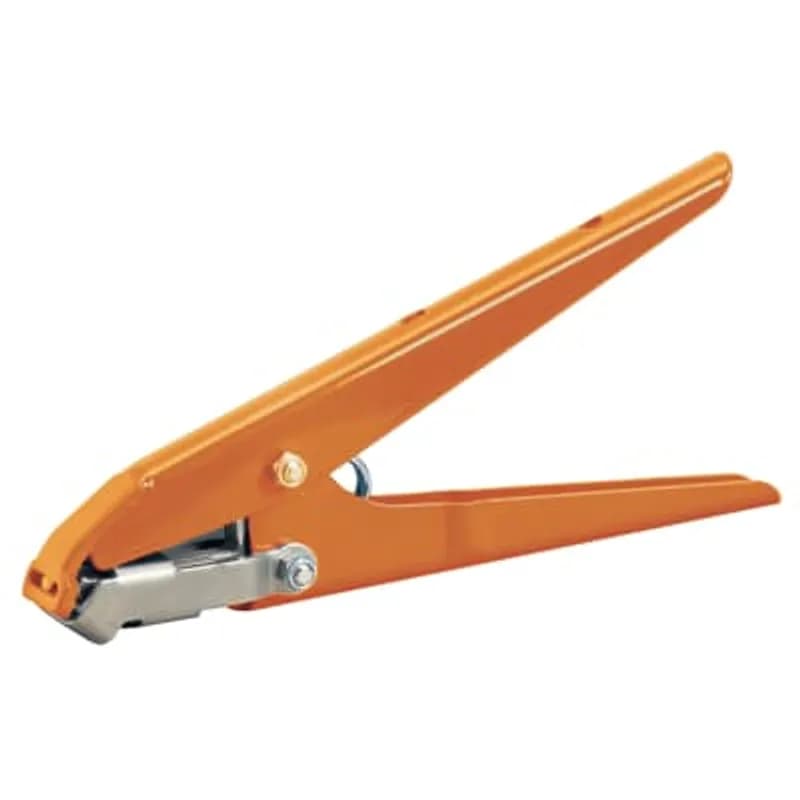

ABB Installation Products WTAE200 Hand Tool For Reusable and Multi-lok Stainless Steel Cable Ties

UPC: 786210915883


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Installation Products WTAE200 is a precision hand tool engineered for the tensioning and cutting of reusable and Multi-lok stainless steel cable ties. This tool ensures consistent, secure tensioning without over-tightening, minimizing the risk of cable damage in critical applications such as wiring harnesses, panel assemblies, and machinery installations. Designed for compatibility with Type TYS Multi-Lok stainless steel cable ties, the WTAE200 is an efficient solution for high-volume industrial and commercial environments, including manufacturing, construction, and maintenance sectors. Its ergonomic design promotes operator comfort during extended use, enhancing installation efficiency and repeatability. Constructed from durable Nylon 6.6, the WTAE200 is available in natural and UV-resistant black finishes, conforming to AH-2 Plenum Rated, UL94 V-2, and Type 21S standards. As part of ABB’s Installation Products line, the WTAE200 offers a reliable and cost-effective method for professional cable management. SKU: WTAE200.
  • Precision hand tool for tensioning and cutting stainless steel cable ties
  • Ensures consistent tensioning without over-tightening, preventing cable damage
  • Compatible with Type TYS Multi-Lok stainless steel cable ties
  • Durable Nylon 6.6 construction for industrial environments
  • Ergonomic design for improved operator comfort and efficiency

Specifications

Application
Cable Tie installation
Cable Tie Material
Stainless Steel
Cable Tie Width
up to 0.5 in , 12.7 mm
Color
Orange
Handle Type
Palm Grip
Material
Stainless Steel
Material
Metal
Type
Stainless Steel Hand Tool
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.7000 L
Package Weight (Metric)
0.3180 kg
Hand Tool for Free-end Stainless Steel Cable Ties 1/4 Inch to 5/8 Inch Band Width

WTC075

Hand Tool for Free-end Stainless Steel Cable Ties 1/4 Inch to 5/8 Inch Band Width
Light Duty Hand Tool for Nylon Cable Ties 18-50 Pounds, 0.094 Inches (2.39mm) - 0.184 Inches (4.67mm) Cable Tie Width

WT1-TB

Light Duty Hand Tool for Nylon Cable Ties 18-50 Pounds, 0.094 Inches (2.39mm) - 0.184 Inches (4.67mm) Cable Tie Width
Light Duty Hand Tool for Nylon Cable Ties 50-120 Pounds, 0.184 Inches (4.67mm) -0.301 Inches (7.65mm) Cable Tie Width

WT2-TB

Light Duty Hand Tool for Nylon Cable Ties 50-120 Pounds, 0.184 Inches (4.67mm) -0.301 Inches (7.65mm) Cable Tie Width
Heavy Duty Hand Tool for Nylon Cable Ties 18-50 Pounds, 2.39mm (0.094 Inches) - 4.67mm (0.184 Inches) Cable Tie Widths

L-400-C

Heavy Duty Hand Tool for Nylon Cable Ties 18-50 Pounds, 2.39mm (0.094 Inches) - 4.67mm (0.184 Inches) Cable Tie Widths
Heavy Duty Hand Tool for Nylon Cable Ties 120-175 lbs. - .301-.345 Cable Tie Width

L300-FR

Heavy Duty Hand Tool for Nylon Cable Ties 120-175 lbs. - .301-.345 Cable Tie Width
Hand Installation and Tensioning Tool, Manual Twist Cutting, for Ball-Lock Stainless Steel Cable Ties, Width up to 8mm

L-600

Hand Installation and Tensioning Tool, Manual Twist Cutting, for Ball-Lock Stainless Steel Cable Ties, Width up to 8mm
Cable Tie Installation Tool, Economic Tensioning Tool, for Ladder Type or Strap Type or Ball-lock Type, Stainless Steel, Cut-off By Hand Activated Lever. Width up to 12mm (0.47 inch).

CT3

Cable Tie Installation Tool, Economic Tensioning Tool, for Ladder Type or Strap Type or Ball-lock Type, Stainless Steel, Cut-off By Hand Activated Lever. Width up to 12mm (0.47 inch).
HAND TOOL, NYL CABLE TIES 18-50LBS

WT199

HAND TOOL, NYL CABLE TIES 18-50LBS

Frequently Asked Questions

How does the WT3D tool secure and cut cable ties?

The WT3D tool applies tension, locks the tie with its ball lock mechanism, and cuts off the band flush with the buckle's top surface.

What cable tie widths does the WT4D tensioning tool support?

The WT4D tensioning tool is suitable for Ball-Lock Ties and Multi-Lock Ties with widths ranging from 0.30-0.40 in.

What cable tie widths does the WT3D tensioner support?

The WT3D Cable Tie Tensioner is designed for tensioning Ball-Lock and Multi-Lock Ties with widths ranging from 0.25-0.30 in.

What types of cable ties are compatible with the WT3D tensioner?

The WT3D Cable Tie Tensioner is compatible with Ball-Lock Ties and Multi-Lock Ties.

What is the maximum cable tie width for the WT3D tool?

The WT3D Stainless Steel Cable Tie Installation Tool can be used for cable ties up to 0.30 in wide.

What is the WT3D tool used for?

The WT3D is a pistol-grip installation tool for stainless steel cable ties, featuring adjustable tension settings. It applies tension, locks the tie, and cuts the band flush.

What types of cable ties are compatible with the WT3D tensioner?

The WT3D Cable Tie Tensioner is compatible with Ball-Lock Ties and Multi-Lock Ties.

What is the WT3D tool used for?

The WT3D is a pistol-grip installation tool for stainless steel cable ties, featuring adjustable tension settings. It applies tension, locks the tie, and cuts the band flush.

What is the maximum cable tie width for the WT3D tool?

The WT3D Stainless Steel Cable Tie Installation Tool can be used for cable ties up to 0.30 in wide.

What cable tie widths does the WT3D tensioner support?

The WT3D Cable Tie Tensioner is designed for tensioning Ball-Lock and Multi-Lock Ties with widths ranging from 0.25-0.30 in.

How to Install Type TYS Multi-Lok Stainless Steel Cable Ties

This guide provides step-by-step instructions for properly installing Type TYS Multi-Lok Stainless Steel Cable Ties, which are self-locking and non-reusable, using either the WTAE200 or WTAE201 tensioning tools.

Estimated time: 5m

Tools needed:

WTAE201 Hand Held Tensioning Tool, WTAE200 Tensioning Tool

Supplies needed:

Type TYS Multi-Lok Stainless Steel Cable Ties

  1. Observe Safety Precautions

    Before commencing installation, especially if working near electrical components, be aware of the risk of shock. Always disconnect power before installation if applicable to your specific application.

  2. Position the Cable Tie

    Wrap the Multi-Lok Cable Tie around the object you wish to secure, ensuring that the buckle ears are oriented upwards. Push the free end (tail) of the cable tie through the slot opening in the buckle.

  3. Tension and Secure the Cable Tie

    Select the appropriate tensioning tool: either the WTAE201 hand-held tool or the WTAE200 tool. If using WTAE201, squeeze the handles to tighten the tie. If using WTAE200, insert the tool end into the hole of the tail and pull tight until the cable tie is securely fastened.
