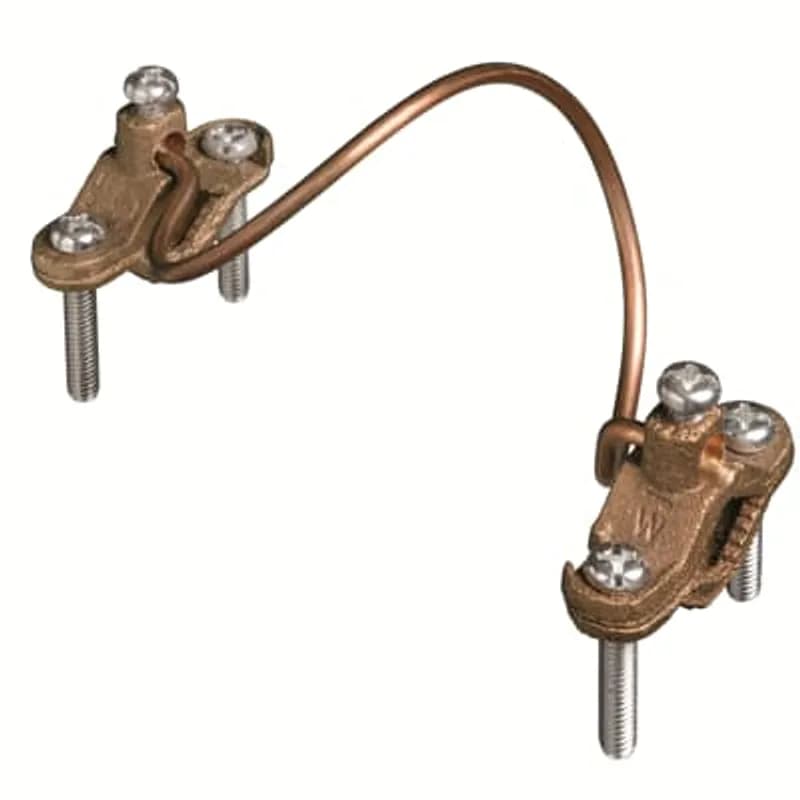

ABB - Installation Products WHMBONDINGKIT-B1-5 - Water Heater / Meter Bonding Kit. Contains (2) 1/2 inch to 1 Inch Brass Ground Clamps and 24 Inches of Copper Conductor #6 AWG Solid Wire. Bonds Water Heater Pipes to Reduce Galvanic Corrosion Inside the Tank. Bonds Water Meter Maintaining Continuity Across the Meter. Commercial and Residential Applications.
ABB - Installation Products

WHMBONDINGKIT-B1-5

UPC: 075114258609

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Overview

The ABB WHMBONDINGKIT-B1-5 is a comprehensive kit designed for essential electrical bonding applications in both commercial and residential settings. This kit addresses two critical areas: water heater pipe bonding and water meter continuity. For water heaters, the kit includes two 1/2 inch to 1 Inch Brass Ground Clamps and 24 inches of solid #6 AWG Copper Conductor wire. This configuration is specifically engineered to bond water heater pipes. By establishing a secure electrical connection, it effectively reduces galvanic corrosion that can occur inside the tank, extending the lifespan of the water heater and preventing potential damage. Proper bonding is a key step in maintaining the integrity of plumbing systems. Furthermore, the WHMBONDINGKIT-B1-5 is utilized to bond water meters. This application ensures continuity across the meter, which is vital for accurate readings and maintaining the overall electrical grounding path. The use of brass clamps provides reliable contact and corrosion resistance in plumbing environments. Key components of the ABB WHMBONDINGKIT-B1-5: * (2) 1/2 inch to 1 Inch Brass Ground Clamps * 24 Inches of #6 AWG Solid Copper Conductor Wire
  • Bonds water heater pipes to reduce galvanic corrosion inside the tank.
  • Bonds water meter to maintain continuity across the meter.
  • Includes (2) 1/2 inch to 1 Inch Brass Ground Clamps.
  • Contains 24 Inches of #6 AWG Solid Copper Conductor Wire.
  • Suitable for commercial and residential applications.

Specifications

Application
Bonds Water Heater Pipes to Reduce Galvanic Corrosion Inside the Tank. Bonds Water Meter Maintaining Continuity Across the Meter. Commercial and Residential Applications
Connection
Mechanical
Insulation
None
Material
Brass
Material
Brass, Copper
Size
1/2 inch to 1 Inch (clamps), #6 AWG (wire)
Special Features
Includes 24 inches of Copper Conductor #6 AWG Solid Wire
Type
Ground Clamp
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.5100 L
Package Weight (Metric)
0.2310 kg
