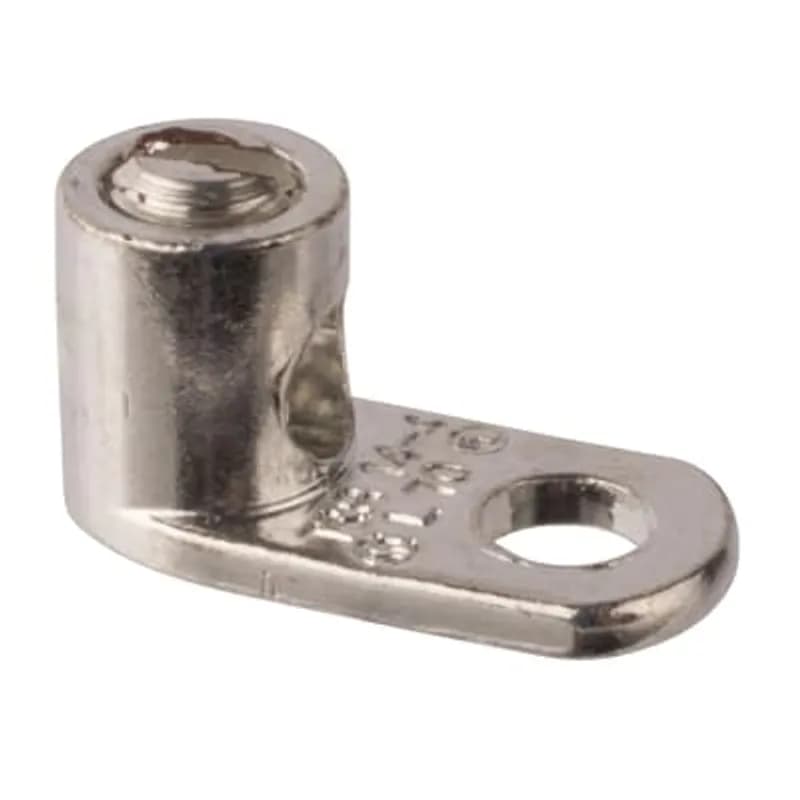

ABB - Installation Products L70P-GS - Copper Mechanical Lug with 1/4 Inch Bolt Hole, Wire Range 14-4 AWG, Green Slotted Screw, Tin Plated, 600 Volts, 100 Minimun

ABB Installation Products L70P-GS Copper Mechanical Lug with 1/4 Inch Bolt Hole, Wire Range 14-4 AWG, Green Slotted Screw…

UPC: 075114426527


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB L70P-GS is a tin-plated copper mechanical lug designed for reliable electrical connections. This lug accommodates wire sizes ranging from 14 to 4 AWG, making it suitable for a variety of industrial wiring applications. It features a 1/4 inch bolt hole for secure mounting and a green slotted screw for positive engagement. With a voltage rating of 600 volts, this component is built to withstand standard industrial electrical loads. The copper construction ensures excellent conductivity, while the tin plating provides enhanced corrosion resistance, crucial for maintaining connection integrity in diverse environments. Each lug is manufactured to meet stringent electrical standards, ensuring safe and efficient power distribution. The L70P-GS is a fundamental component for electrical contractors and maintenance professionals requiring dependable wire termination solutions. Its straightforward design and robust materials contribute to its longevity and consistent performance. The minimum order quantity is 100 units, facilitating bulk procurement for larger projects. This mechanical lug is a key element in electrical panels, junction boxes, and equipment connections where secure and durable wire termination is paramount. The UNSPSC code for this product is 39121408, categorizing it within electrical connectors and accessories. Trust ABB Installation Products for essential electrical components that deliver on performance and reliability.
  • Tin-plated copper construction for conductivity and corrosion resistance
  • Accommodates wire sizes from 14 to 4 AWG
  • 600 Volt rating for industrial applications
  • Features a 1/4 inch bolt hole for secure mounting
  • Includes a green slotted screw for positive connection

Specifications

Bolt Size
1/4 in
Connection
Mechanical
Finish
Tinned
Insulation
None
Material
Copper
Number of Mounting Holes
1
Special Features
Green Slotted Screw
Type
Mechanical Lug
Voltage Rating
600 V
Package Dimensions (L x W x H)
4.09 IN x 3.03 IN x 2.72 IN
Package Dimensions (L x W x H)
10.3886 cm x 7.6962 cm x 6.9088 cm
Package Weight (Imperial)
0.0400 L
Package Weight (Metric)
0.0180 kg
