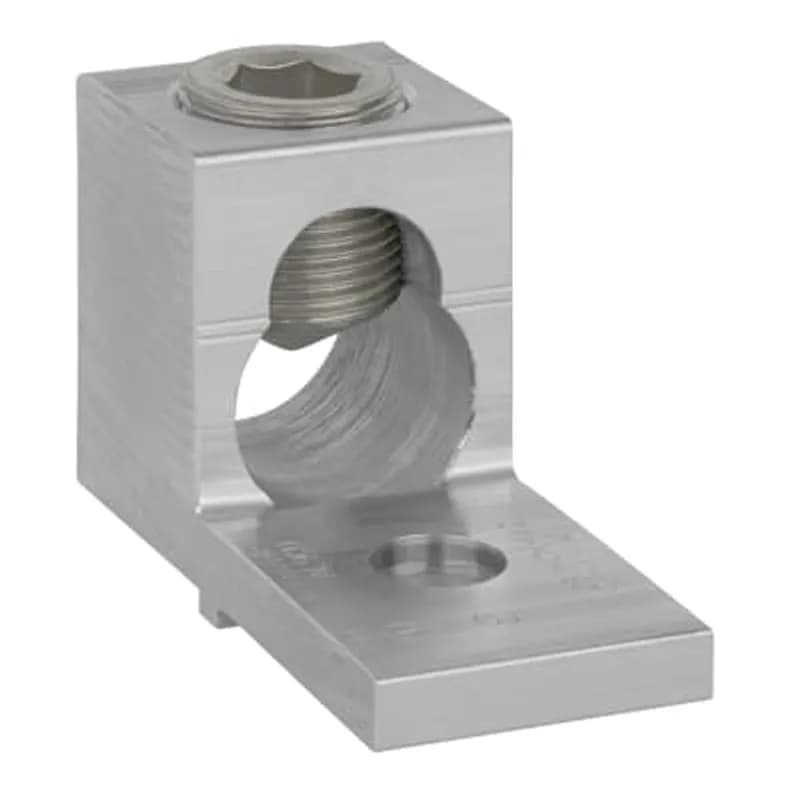

ABB Installation Products ADR6004-AR Tin Plated Aluminum Mechanical Lug with 1/2 inch Bolt Hole. AL9CU. Wire Range 600 kcmil…
UPC: 075114418102
Documents & Media
Contact for Pricing
Minimum Qty: 6
Multiplier: 6
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Tin Plated Aluminum construction for corrosion resistance
- Accommodates wire range from 600 kcmil to #4 AWG
- Rated for 600 Volts and 7800 Amps minimum
- Anti-rotational design for secure and stable installation
- Features a 1/2 inch bolt hole for easy mounting
Specifications
Bolt Size | 1/2 in |
Connection | Mechanical |
Finish | Tinned |
Insulation | None |
Material | Aluminum |
Special Features | Anti-Rotational |
Type | Mechanical Lug |
Package Dimensions (L x W x H) | 4 IN x 4 IN x 3 IN |
Package Dimensions (L x W x H) | 10.16 cm x 10.16 cm x 7.62 cm |
Package Weight (Imperial) | 0.2800 L |
Package Weight (Metric) | 0.1270 kg |
TS350-2
2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
PCSB4-3S-12Y
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
8H3-UNASSEMBLED
Silicone Bronze Split Bolt Connector for Three Wires, Wire Range #8 Stranded - #12 Solid AWG, 600 Volts, Bolt Head 3/8 inch, Bolt Length 29/32 inch, Center Spacing 0.146 inch, Nut Width 1/2 inch. Thread size as 3/8-24 UNS-3A. 1,000 Min. The Three Pieces are Unassembled and Packaged Separately.
Frequently Asked Questions
What is the wire range for this mechanical lug?
The ADR6004-AR mechanical lug supports a wire range from 600 kcmil down to #4 AWG.
What is the voltage rating of the ADR6004-AR lug?
This ABB mechanical lug is rated for 600 Volts.
What material is the ADR6004-AR lug made from?
The ADR6004-AR lug is constructed from tin-plated aluminum.
What is the bolt hole size on this lug?
The mechanical lug features a 1/2 inch bolt hole.
Does this lug have an anti-rotational feature?
Yes, the ADR6004-AR is designed with an anti-rotational mounting feature.
What is the minimum current rating for this lug?
The lug has a minimum current rating of 7800 amps.
What are the physical dimensions of the lug?
The lug measures 3 inches in length, 1-3/8 inches in width, with a 5/16 inch thick pad.
