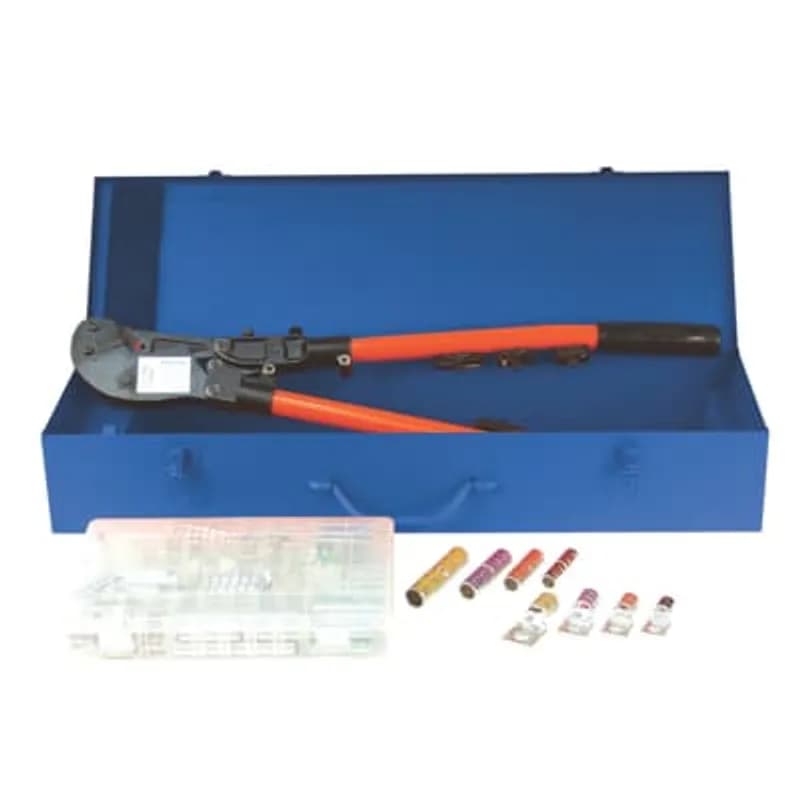

ABB Installation Products TBM5KIT Included in the Kit - Catalog Number 54104, Cable Size #8, One Hole Lug. 25 54105 #6 One…
UPC: 786210296326
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Comprehensive kit with one-hole lugs and 2-way connectors
- Supports a wide range of cable sizes from #8 AWG to 250 kcmil
- Includes multiple catalog numbers for specific cable gauge requirements
- Manufactured by ABB Installation Products for reliable electrical connections
- Ideal for industrial and commercial wiring applications
Specifications
Handle Color | Blue |
Material | Metal |
Special Features | Includes: 54104, 54105, 54106, 54107, 54108, 54109, 54110, 54111, 54112, 54811, 54812,5481 and TBM5 |
Type | Tool and Die Kit |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 30.6700 L |
Package Weight (Metric) | 13.9120 kg |
KA12-250
U-Type Crimping Die 250 MCM Aluminum - Red U-Shaped Crimping Dies are for use with the N1240 Crimping Tool and Other Tools.
CT-920CH
When partnered as a complete Panduit set, the Panduit BlackFin Crimping Tool provides continuous crimping operation. Plus, the open C-crimp head design allows easy loading of crimping dies and connectors, saving time. The crimp tool has a force of 12 tons and crimps #8 AWG 750 kcmil copper code, #8 AWG 535 kcmil copper flex, #6 AWG - 600 kcmil aluminum, 10mm2 400 mm2 copper class 2 metric, 10mm2 300mm2 copper class 5f and 6f metric and #6 AWG - 250 kcmil copper code Direct Burial Grounding connectors. Includes Parker type quick-connect fitting and heavy duty carrying bag. Recommended for use with Panduit CT-902HP hydraulic pump with CT-900HPH hydraulic hose and CD-920 or CD-930 crimp dies, sold separately.
CM2000C
For All Single Crimp Insulated Female / Male Disconnect Wire Sizes 22-16 AWG, 16-14 AWG, 12-10 AWG
RSK-LEHRE
One Piece Shield-Kon Selection Gauge, to Help Quickly Select the Appropriate Connector and Die for a Cable
ERG4000KE
Ergonomic Hand Tool, with Interchangeable Dies to Cover a Wide Range of Shield Diameters in the Hexagonal Range, Shure-Stake Mechanism, Length 265mm
HM-250 TOOL
Mechanical Single Indent Dieless Crimper Tool, Manually operated single-indent compression tool. For copper wire #8 to 250 kcmil, for Alumimum wire #8 to 4/0.
Frequently Asked Questions
What is the SKU for this ABB terminal block kit?
The SKU for the ABB TBM5KIT terminal block kit is TBM5KIT.
Who is the manufacturer of the TBM5KIT?
The TBM5KIT is manufactured by ABB - Installation Products.
What cable sizes are supported by the TBM5KIT one-hole lugs?
The TBM5KIT one-hole lugs support cable sizes from #8 AWG up to 250 kcmil, including specific options for #8, #6, #4, #2-#3, #1, 1/0, 2/0, 3/0, 4/0, and 250 kcmil.
What cable sizes are covered by the TBM5KIT 2-way connectors?
The TBM5KIT 2-way connectors are available for cable sizes ranging from #8 AWG to 250 kcmil, with specific connectors for #8, #6, #4, #2-#3, #1, 1/0, 2/0, 3/0, 4/0, and 250 kcmil.
