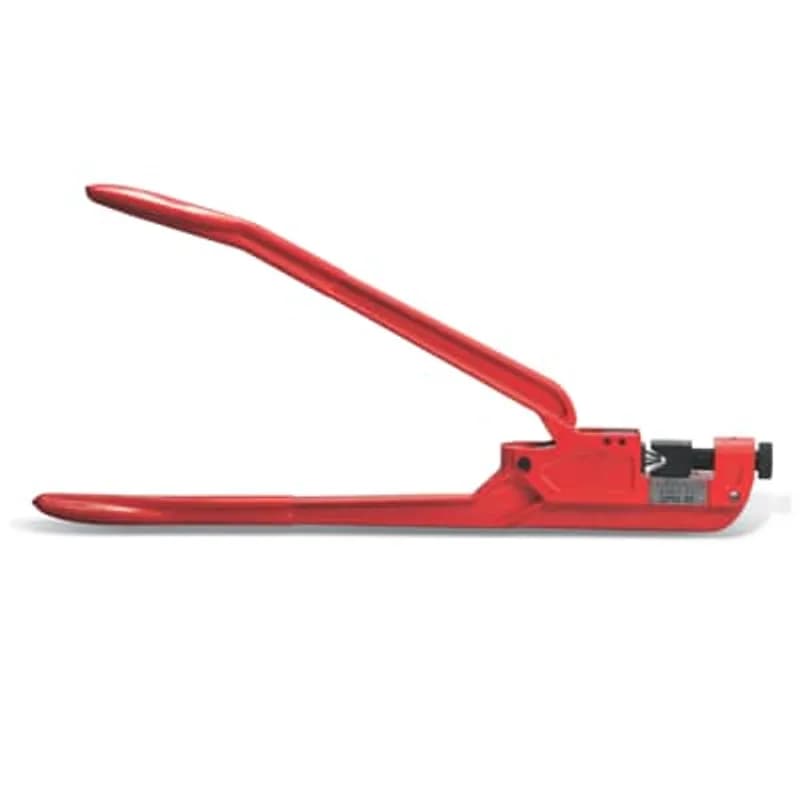

ABB Installation Products HM-250 TOOL Mechanical Single Indent Dieless Crimper Tool, Manually operated single-indent…
UPC: 783786732036
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Manually operated single-indent compression tool
- Supports copper wire #8 to 250 kcmil
- Supports aluminum wire #8 to 4/0
- Dieless design eliminates need for interchangeable dies
- Ideal for field installations and confined spaces
Specifications
Handle Color | Red |
Type | Mechanical Single Indent Dieless Crimp Tool |
Wire Size | CU 8-250 AWG , AL 8-4/0 AWG |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 6.6400 L |
Package Weight (Metric) | 3.0120 kg |
OD581
Mechanical Crimp Tool with 5/8 Inch Nose Die APPLICATIONS: Designed for use with wide range and H-Tap connectors. It has fiberglass handles and comes with "O" and "D" Nose Dies. It has an output of 4.5 tons.
OD58
Mechanical Crimp Tool with 5/8 Inch Nose Die APPLICATIONS: The Mechanical Crimp Tool is designed for use with wide range and H-Tap connectors. It has fiberglass handles and comes with Nose Dies. It has an output of 4.5 tons.
OD59
Mechanical Crimp Tool w/ O and D Nose Dies APPLICATIONS: Designed for use with wide range and H-Tap connectors. It has fiberglass handles and comes with "O" and "D" Nose Dies. It has an output of 4.5 tons.
RDC1/0
Ratchet Drive Crimping Tool APPLICATIONS: Ratchet Drive Crimping Tool is for non-insulated terminals from 6 to 1/0 AWG and insulated terminals from 22 to 8 AWG. Rugged, compact, and lightweight. Requires minimum effort due to ratchet action, ensuring an excellent crimp every time. FEATURES: TYPE: Insulated and Uninsulated ACTION: Ratchet INSULATED USE: Terminals 22 to 8 AWG NON-INSULATED USE: Terminals 6 to 1/0 AWG MANUFACTURER: NSi Industries PART NUMBER: RDC 1/0 UPC: 662381055309
M22-250-3V-S
22-18 AWG Vinyl Insulated Male Disconnect with 0.250 Stud - 30 Count Vinyl Insulated Male Disconnects are entirely covered in an insulating vinyl. Electro tin plated, vinyl (PVC). 300V, 75 degrees C. FEATURES: STYLE: Male Disconnect MATERIAL: Vinyl QUANTITY: 30 Count WIRE SIZE: 22-18 STUD SIZE: 0.250 BRAND EQUIVALENT: Morris 10214 Ideal 83-9971 Ilsco 45101-B10 Penn Union MT4A250Frequently Asked Questions
Is the HM-250 TOOL manually operated?
Yes, the HM-250 TOOL is a manually operated single-indent compression tool.
What wire sizes does the HM-250 TOOL support?
The HM-250 TOOL supports copper wire from #8 to 250 kcmil and aluminum wire from #8 to 4/0.
Does the HM-250 TOOL require dies?
No, the HM-250 TOOL is a dieless design, eliminating the need for interchangeable dies.
Can the HM-250 TOOL crimp both copper and aluminum wires?
Yes, the HM-250 TOOL is compatible with both copper and aluminum conductors.
What applications is the HM-250 TOOL suitable for?
The HM-250 TOOL is suitable for electrical distribution, renewable energy systems, and industrial machinery applications.
