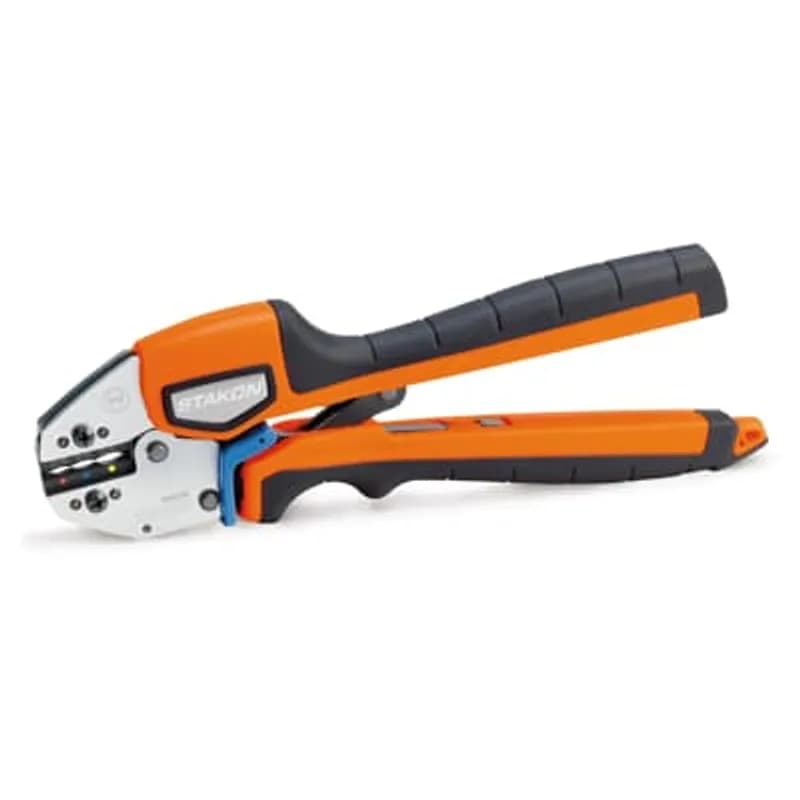

ABB - Installation Products ERG4000KE - Ergonomic Hand Tool, with Interchangeable Dies to Cover a Wide Range of Shield Diameters in the Hexagonal Range, Shure-Stake Mechanism, Length 265mm

ABB Installation Products ERG4000KE Ergonomic Hand Tool, with Interchangeable Dies to Cover a Wide Range of Shield Diameters…

UPC: 786209999986


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB ERG4000KE is an ergonomic hand tool designed for efficient and reliable crimping operations. Manufactured by ABB - Installation Products, this tool (SKU: ERG4000KE) features interchangeable dies, allowing it to accommodate a wide range of shield diameters within the hexagonal crimping range. This versatility makes it suitable for various electrical installation and maintenance tasks where secure and consistent crimps are essential. The tool incorporates ABB's Shure-Stake mechanism, a critical component engineered to ensure a complete crimp cycle. This mechanism prevents the tool from opening prematurely, guaranteeing that each crimp is fully formed before the tool can be released. This feature is vital for maintaining the integrity and performance of electrical connections, particularly in demanding industrial applications. With a length of 265mm, the ERG4000KE offers a balanced design for comfortable handling during extended use. The ergonomic construction minimizes user fatigue, contributing to increased productivity and reduced risk of strain injuries. The interchangeable die system is a key benefit, providing flexibility without the need for multiple specialized tools. Users can quickly swap dies to match different wire gauges and connector types, streamlining workflows and reducing tool inventory.
  • Ergonomic hand tool for efficient crimping operations
  • Interchangeable dies cover a wide range of shield diameters
  • Hexagonal crimping range for versatile application
  • Shure-Stake mechanism ensures complete crimp cycle
  • 265mm length for balanced handling and reduced fatigue

Specifications

Handle Type
Palm Grip
Overall Length
10.43 in
Overall Length
265 mm
Size
265mm
Type
Hand Tool
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.6500 L
Package Weight (Metric)
0.7480 kg
