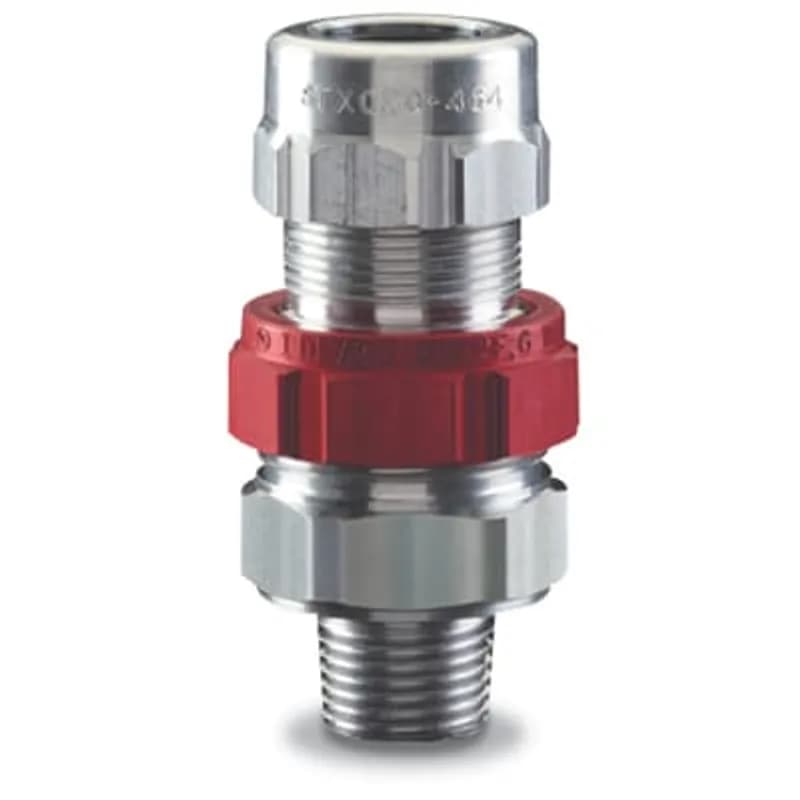

ABB Installation Products STX250-475S Steel fitting with a hub size of 2-1/2 inches and the outer jacket diameters from 2.3 to…
UPC: 786209996916
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Hub size: 2-1/2 inches (63.5 mm)
- Outer jacket diameter range: 2.3 to 2.565 inches (58.4 to 65.15 mm)
- Integral sealing chamber eliminates need for cement sealants
- Disconnectable design for quick cable adjustments and replacements
- Certified for Class I, Division 1 & 2 hazardous locations
Specifications
Application | For Hazardous Locations |
Color | Red;Silver |
Material | Steel |
Series | STAR TECK XP |
Size | 2-1/2 Inches |
Standard | CSA 23086 |
Type | Teck Cable Fittings |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 6.4900 L |
Package Weight (Metric) | 2.9440 kg |
CCOP250
One piece strut clamp with saddle designed to secure rigid/EMT conduit or cable perpendicular to strut. It is made of steel with a galvanized finish. The clamp fits 2-1/2 in EMT and 2-1/2 in RMC and has a static load rating of 350 lbs.
ST200-476SPVC
Steel PVC coated fitting with a hub size of 2 inches and will handle outer jacket diameters from 2.5 to 2.75 inches.STX350-480S
Steel Star Teck XP hazardous location jacketed cable fitting hub size 3-1/2 inches PVC coated.
HLT050DATA
Aluminum liquidtight fitting for tray cable. Hub size N.P.T. 1/2 inch Range over jacket is 0.25 to 0.310 inch.
8425-TB
1-1/4 Inch Set Screw Connector, Steel with Nylon Insulated Throat for Use with Rigid/IMC ConduitFrequently Asked Questions
What sealing compounds are required for installation?
The STX250-475S must be installed with either SC4-KIT-1 liquid compound or SC65 putty sealing compound, which are sold separately.
What hazardous location certifications does the product meet?
The product conforms to CSA 22.2-25/-30/-174/-94 and UL2225 for Class I Div1 ABCD, Class II Div1 EFG, and Class III Div1 hazardous locations.
How do I order the steel version or with PVC coating?
To order the steel version, add suffix "S" to the part number. To order with PVC coating, add suffix "PVC" (e.g., STX050-464SPVC), and contact your representative for availability.
What is the maximum sealing compound volume for STX250-475S?
The maximum volume of sealing compound required for the STX250-475S is 147cc.
What is the NPT thread size for the STX250-475S?
The NPT thread size for the STX250-475S is 2-1/2.
What are the cable jacket and armor ranges for STX250-475S?
For the STX250-475S, the cable jacket range is 2.300 in to 2.565 in, and the armor range is 2.190 in to 2.485 in.
Does the product comply with RoHS?
Yes, the product conforms to RoHS (Restriction of Hazardous Substances Directive) 2011/65/EU, incorporating the 2015/863 amendment to Annex II.
Is the product suitable for wet and dry locations?
Yes, the product conforms to UL514B and CSA C22.2-18.3, making it suitable for both wet and dry locations.
What is the ingress protection rating of the fitting?
The STX series fitting has an ingress protection rating of Type 4 / 4X.
What is the operating temperature range for the product?
The normal operating temperature range for the product is -40 to +90°C (-40 to +194°F).
How to Install the STX250-475S Cable Fitting
Instructions for installing the STX250-475S Star Teck™ cable fitting with integral seal.
Estimated time: 30m
Tools needed:
Hacksaw, Screwdriver
Supplies needed:
Sealing compound (SC4-KIT-1 or SC65), Fiber damming material
- Prepare the cable jacket and armor
Determine the working length of conductors. Remove a portion of the outer jacket to expose the armor. Cut the armor using a hacksaw, being careful not to nick the conductor insulation. Trim the outer jacket to the strip length indicated in the table.
- Feed cable through gland nut
Feed the cable through the gland nut opening and push until the cable armor hits the end stop.
- Tighten gland nut
Tighten the gland nut until an appropriate seal is obtained or to the maximum torque specified in the table. Ensure the bushing and collar ring seal evenly around the cable's outer jacket and are flush with the gland nut face. Keep the cable centered for an optimal seal.
- Disassemble fitting components
Loosen the union to disassemble the hub from the body sub-assembly. Unscrew the sealing chamber from the body sub-assembly.
- Prepare conductors
Trim the inner jacket to a length of 1/8"-3/8" to expose the conductor bundle. For shielded data cables, remove the outer shield and filler materials, taking care not to damage inner shields.
- Apply sealing compound
Depending on the sealing compound used (SC4-KIT-1 liquid or SC65 putty), follow the specific instructions in Section 3 or Section 4 of the manual. This involves packing fiber damming material, mixing and applying the compound, and ensuring all voids are filled around the conductors. For SC4-KIT-1, larger fittings require a two-stage fill with a waiting period. For SC65, ensure the compound is mixed thoroughly and applied at or above 70°F (21°C).
- Reassemble and mount fitting
Screw the sealing chamber back onto the body sub-assembly until it is completely seated. Mount the hub in the desired location. Once the sealing compound has solidified (approximately 1 hour), place the encapsulated assembly into the hub and secure by tightening the union until metal-to-metal contact is achieved. Remove any excess compound from the outside of the sealing chamber with a damp cloth.
