ABB - Installation Products 8425-TB - 1-1/4 Inch Set Screw Connector, Steel with Nylon Insulated Throat for Use with Rigid/IMC Conduit

ABB Installation Products 8425-TB 1-1/4 Inch Set Screw Connector, Steel with Nylon Insulated Throat for Use with Rigid/IMC…

UPC: 786210357591


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

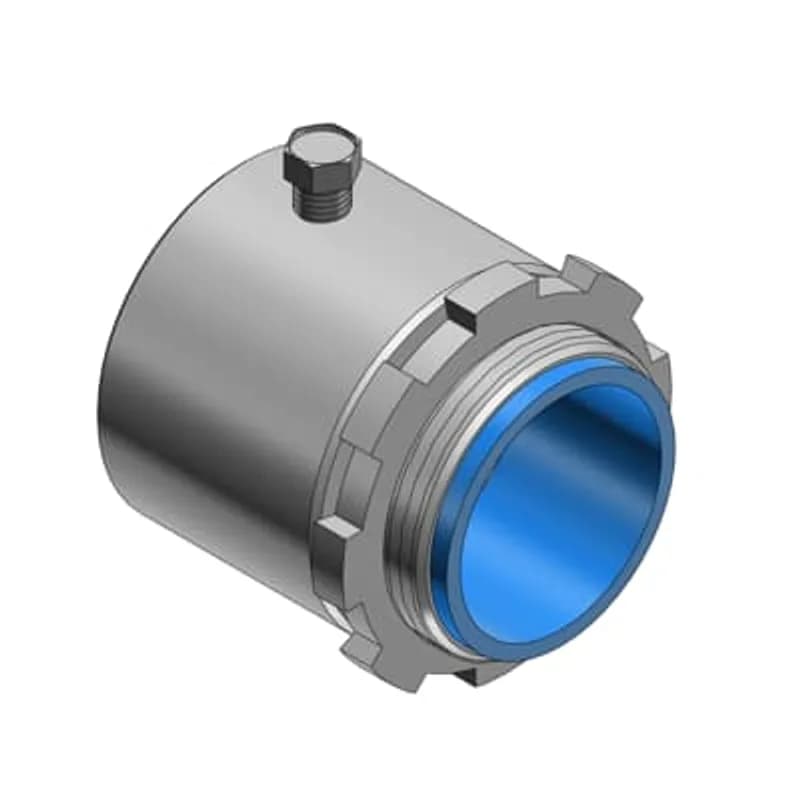

The ABB 8425-TB is a 1-1/4 inch trade size set screw connector constructed from thickwall steel for robust conduit connections. This connector eliminates the need for conduit threading, simplifying installation. It features a hardened hex head cup point screw designed for a high-quality electrical bond, and the screw is captivated to prevent loosening from vibration. The nylon insulated throat significantly reduces wire pulling effort by up to 50%, preventing insulation thinning and first thread damage. This connector is suitable for concrete-tight applications and is capable of carrying ground fault currents up to 10,000 amps RMS for sizes 1/2" through 1-1/4". Standard material includes a steel body and hardened steel locknut and screw, with a nylon insulator. The standard finish is electro zinc plated and chromate coated. Compliances include UL 514B, CSA C22.2 No. 18, NEMA FB1, and Federal Specification A-A-50533. Manufacturer: ABB Installation Products. SKU: 8425-TB.
  • Thickwall steel body for durability
  • Hardened hex head cup point screw for high-quality bond
  • Captive screw design prevents loosening from vibration
  • Nylon insulated throat reduces wire pulling effort by up to 50%
  • Suitable for concrete-tight applications
  • Capable of carrying ground fault currents up to 10,000 amps RMS (1/2"-1-1/4" sizes)
  • Meets UL 514B, CSA C22.2 No. 18, NEMA FB1 standards

Specifications

Application
To Connect and Effectively Bond Threadless Rigid Metal Conduit/Intermediate Metal Conduit to a Box or Enclosure, or to Couple Ends of Threadless Conduit
Connection Type
Set Screw
Current Rating
10000 A RMS
Finish
Electro Zinc Plated
Material
Steel
Material
Steel with Nylon
Series
8425
Size
1-1/4 Inch
Standard
UL E23018, CSA
Type
Set Screw Connector
Package Dimensions (L x W x H)
6 IN x 5 IN x 4 IN
Package Dimensions (L x W x H)
15.24 cm x 12.7 cm x 10.16 cm
Package Weight (Imperial)
0.5200 L
Package Weight (Metric)
0.2360 kg
