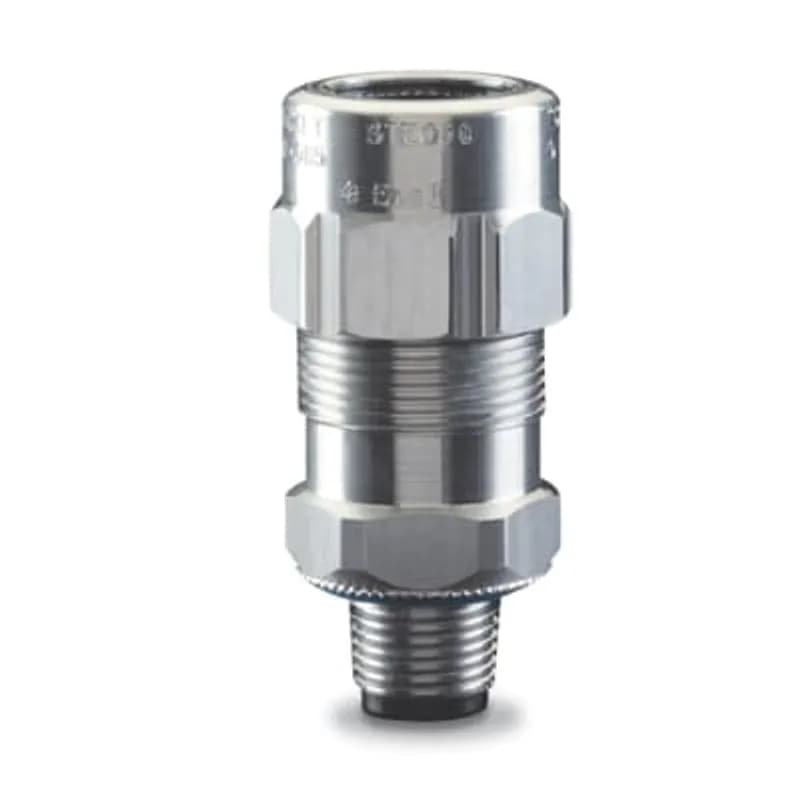

ABB Installation Products STE400S Star Teck Extreme steel jacketed cable fitting. Hub size of 4 inches. Range over jacket…
UPC: 786210996936
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Single fitting replaces three conventional hub sizes (range-taking design)
- Accommodates cable jackets from 3.665 to 4.340 inches in diameter
- 4-inch hub size for compatibility with standard installations
- Removable armour stop feature for tool-free adjustment
- Part of ABB Installation Products line for steel-jacketed cable systems
Specifications
Color | Silver |
Material | Steel |
Series | STAR TECK EXTREME |
Size | 4 Inches |
Standard | UL E38947, CSA 23086, CSA 4484 |
Type | Teck Cable Fittings |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 12.8000 L |
Package Weight (Metric) | 5.8060 kg |
SPL63/200/M
Liquid Tight Oil Resistant Covered Steel Flexible Conduit, Nominal Conduit Size 63mm, 2 Inch US Conduit Size, Outside Diameter 59.7mm, Inside Diameter 51.6mm, Static Bend Radius 345mm, Reel Length 200 Meters, PVC Covered Galvanised Steel, Black
95138
Clamp-on service entrance cap for 4-inch EMT and rigid/IMC conduit. It is made of aluminum with a silver color and no additional finish. The enclosure is listed as Weatherhead.
STEX250
Star Teck Extreme hazardous location aluminum jacketed cable fitting. Hub size of 2-1/2 inch. Range over jacket from 1.825 - 2.375 inches.STEX400
Star Teck Extreme hazardous location aluminum jacketed cable fitting. Hub size of 4 inch. Range over jacket from 3.220 - 3.870 inches.STEX350
Star Teck Extreme hazardous location aluminum jacketed cable fitting. Hub size of 3-1/2 inch. Range over jacket from 2.670 - 3.270 inches.
STX050-464S
Star Teck hazardous location steel jacketed cable fitting. Hub size of 1/2 inch. Range over jacket from 0.600 - 0.760 inch.Frequently Asked Questions
What is the hub size of the STE400S fitting?
The hub size of the STE400S is 4 inches.
Which manufacturer produces the STE400S fitting?
The STE400S is manufactured by ABB - Installation Products.
What is the range of jacket diameters for the STE400S?
The fitting accommodates cable jackets from 3.665 to 4.340 inches in diameter.
What hub sizes does the STE400S replace?
The STE400S replaces three conventional STAR TECK fitting hub sizes with a single range-taking fitting.
Is the armour stop on the STE400S removable?
Yes, the STE400S features a removable armour stop, which has become an industry standard.
How to Install Star Teck Extreme STE Cable Fittings
This guide provides step-by-step instructions for preparing armored cable and properly installing Star Teck Extreme STE series cable fittings to ensure a secure and sealed connection, in accordance with national and local electrical codes.
Estimated time: 15m
Tools needed:
Hacksaw, Wire strippers, Torque wrench, Screwdriver
Supplies needed:
Star Teck Extreme STE series cable fitting, Armored cable
- Disconnect Power and Select Fitting
WARNING: Risk of shock, disconnect all power to the circuit before beginning installation. CAUTION: This product must be installed by a qualified electrician in accordance with national and local electrical codes. Select the appropriate Star Teck Extreme STE series cable fitting that matches the enclosure and the armored cable you are using.
- Prepare the Armored Cable
Determine the required working length of conductors inside the enclosure or device. Carefully remove a portion of the cable's outer jacket to expose the armor. Using a hacksaw, cut the armor to the specified strip length from the provided table (Figure 1). Trim the outer jacket to match the exposed armor strip length, ensuring the strip length is the same as the length of the gland nut (Figure 2). CAUTION: Do not nick or cut the conductor insulation during this process.
- Insert Cable into Fitting
Feed the prepared cable through the gland funnel entry of the fitting. Push the cable until its armor firmly contacts the internal armor stop (Figure 3). Ensure proper positioning to prevent improper cable armor grounding. If the inner conductor bundle does not pass through, unscrew and discard the armor stop (Figure 6), then re-insert the cable.
- Secure the Cable Fitting
Tighten the gland nut to the maximum torque specified in the table (Figure 4) or until an appropriate seal is achieved. Verify that the bushing and collar ring seal evenly around the cable's outer jacket and are flush with the gland nut face (Figure 5). Ensure the cable remains centered within the fitting to obtain an optimal seal.
