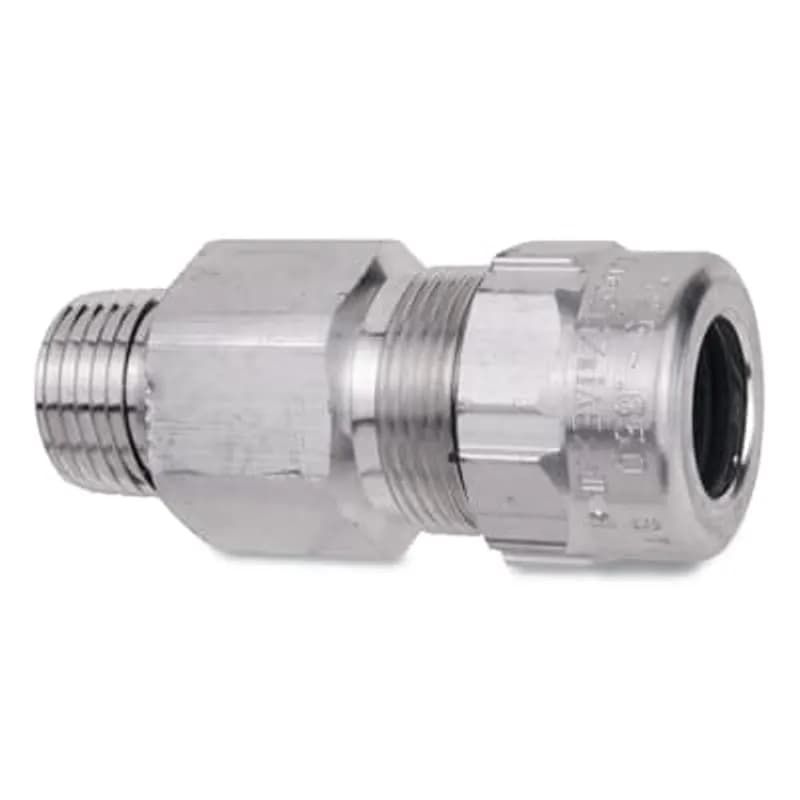

ABB Installation Products ST050-466 Star Teck aluminum jacketed cable fitting. Hub size of 1/2 inch. Range over jacket from…
UPC: 786210712857
Contact for Pricing
Minimum Qty: 20
Multiplier: 20
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 1/2" NPT hub size for secure threading into enclosures
- Accommodates cable jacket diameters from 0.825 to 0.985 inches
- Aluminum construction for inherent corrosion resistance
- Pop-on design eliminates disassembly during installation
- Splined gland and stainless steel retaining ring for enhanced grip and durability
- Non-magnetic power-grip grounding ring provides 360° long-term grounding
- Tapered bushing ensures watertight seal in vertical installations
- Low-profile gland nut with screwdriver grooves and wrench flats for tool compatibility
- Reusable design with funnel entry for easy cable insertion
- Suitable for Class 1 Div. 2, Class II Div. 2, and Class III hazardous locations
Specifications
Color | Silver |
Material | Aluminum |
Series | 10464 Series |
Series | STAR TECK |
Size | 1/2 Inch |
Size | 1/2 inch hub, 0.825-0.985 inch jacket range |
Standard | UL E38947, CSA 23086, CSA 4484 |
Type | Teck Cable Fittings |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.2100 L |
Package Weight (Metric) | 0.0950 kg |
MAVI-M20/01
Special 45 Degree Elbow Adapter, Metric Thread - Thread Inside/Outside M20x1.5/M20x1.5, Nickel-Plated Aluminum
95138
Clamp-on service entrance cap for 4-inch EMT and rigid/IMC conduit. It is made of aluminum with a silver color and no additional finish. The enclosure is listed as Weatherhead.
ST150-473SPVC
Star Teck steel jacketed fitting PVC coated. Hub size of 1-1/2 inch. Range over jacket from 1.900 - 2.187 inches.
STX200-473S
Star Teck hazardous location steel jacketed cable fitting. Hub size of 2 inches. Range over jacket from 1.900 - 2.187 inches.
UNY 105-TB
1/2 Inch UNY Male Union, Steel Electro Galvanized, 3 Piece for Hazardous and Non Hazardous Locations
CI808
Fitting, Two Screw, Trade Size 1 Inch, Clamping Range 0.50 Inch-1.04 Inch, Width 2 Inches, Zinc Alloy, Suggested Application NMD90 4/2-2/2, 8/3-4/3
CI810
Fitting, Two Screw, Trade Size 1-1/4 Inch, Clamping Range 0.56 Inch-1.06 Inch, Width 2-3/16 Inches, Zinc Alloy, Suggested Application NMD90 4/2-2/2, 8/3-4/3Frequently Asked Questions
What materials are used in the ST050-466 connector?
The body and gland nut are aluminum, grounding and retaining rings are stainless steel, the bushing is silicone, and the O-ring is nitrile.
What are the overall dimensions of the ST050-466?
The overall length ("A") is 2.13 inches, the dimension across corners ("B") is 1 21/32 inches, and the NPT thread length ("C") is 0.620 inches.
What hazardous locations is ST050-466 suitable for?
It is suitable for Class I, Class II Group EFG, Class III, and Class I, Zone 1, AEx E II hazardous locations. It is also suitable for Class I, II, III Div 2 per NEC.
What is the minimum throat diameter of ST050-466?
The minimum throat diameter for the ST050-466 cable connector is 0.612 inches.
What is the armor diameter range for ST050-466?
The range over the cable armor for ST050-466 is from 0.632 inches to 0.905 inches.
What is the jacket diameter range for ST050-466?
The range over the cable jacket for ST050-466 is from 0.825 inches to 0.985 inches.
What is the NPT hub size for ST050-466?
The NPT hub size for the ST050-466 cable connector is 1/2-14.
What is the armor diameter range for ST050-466?
The range over the cable armor for ST050-466 is from 0.632 inches to 0.905 inches.
What hazardous locations is ST050-466 suitable for?
It is suitable for Class I, Class II Group EFG, Class III, and Class I, Zone 1, AEx E II hazardous locations. It is also suitable for Class I, II, III Div 2 per NEC.
What materials are used in the ST050-466 connector?
The body and gland nut are aluminum, grounding and retaining rings are stainless steel, the bushing is silicone, and the O-ring is nitrile.
How to Install a Star Teck ST050-466 Cable Fitting
This guide provides step-by-step instructions for preparing your armored cable and properly installing the Star Teck ST050-466 cable fitting to ensure a secure and sealed connection.
Estimated time: 15m
Tools needed:
Hacksaw, Wrench
Supplies needed:
Armored cable, Star Teck ST050-466 cable fitting
- Prepare for Installation and Select Fitting
WARNING: Disconnect all power before beginning installation to prevent risk of electric shock. Ensure the product is installed by a qualified electrician in accordance with national and local electrical codes. Select the appropriate Star Teck cable fitting (ST050-466) that matches your enclosure and the armored cable being used.
- Prepare the Armored Cable
Determine the required working length of the conductor inside the enclosure or device. Carefully remove a portion of the cable's outer jacket to expose the armor. Use a hacksaw to cut the armor, then trim the outer jacket to achieve the exposed armor strip length specified in the product table for the ST050-466 fitting. CAUTION: Avoid nicking or cutting the conductor insulation during this process.
- Insert the Cable into the Fitting
Feed the prepared armored cable through the gland nut opening of the fitting. Push the cable until its armor firmly contacts the internal end stop of the fitting.
- Secure and Seal the Cable Fitting
Tighten the gland nut until an appropriate seal is achieved around the cable's outer jacket, or tighten to the maximum torque specified in the product table for the ST050-466 fitting. Ensure the cable remains centered within the bushing to obtain an optimal and even seal.
