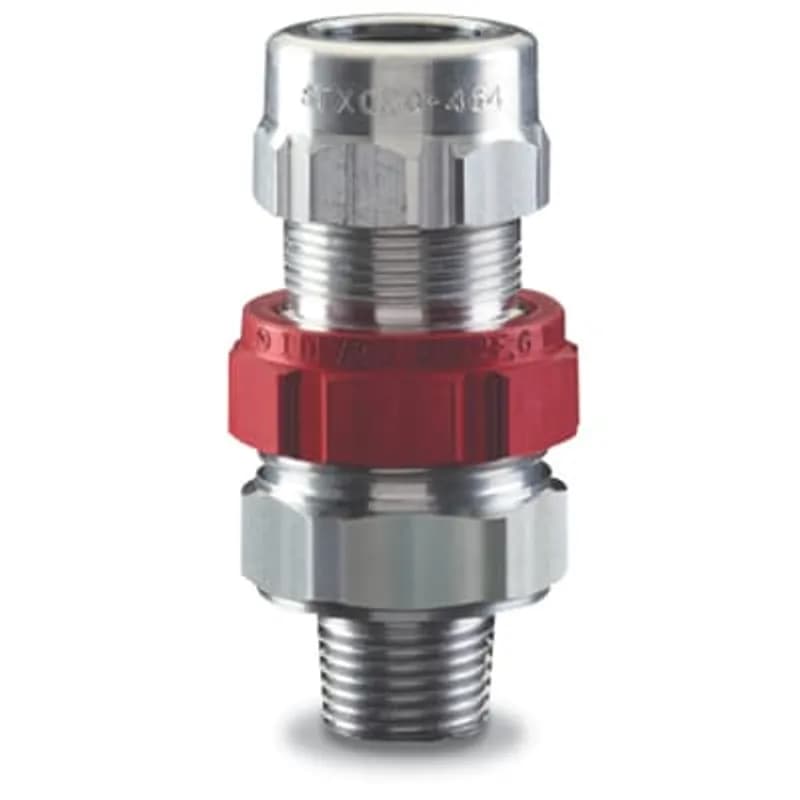

ABB - Installation Products STX200-473S - Star Teck hazardous location steel jacketed cable fitting. Hub size of 2 inches. Range over jacket from 1.900 - 2.187 inches.

ABB Installation Products STX200-473S Star Teck hazardous location steel jacketed cable fitting. Hub size of 2 inches. Range…

UPC: 786210309644


Documents & Media
Installation InstructionsSpecification SheetVideo ClipManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB STX200-473S Star Teck steel jacketed cable fitting is a hazardous location-rated termination solution designed for secure cable entry into enclosures in explosive atmospheres. Part of ABB Installation Products' STAR TECK XP series, this fitting features a 2-inch NPT hub and accommodates jacketed metal-clad cables with outer diameters ranging from 1.900 to 2.187 inches. Engineered for Class I, Division 1 hazardous locations (Groups A, B, C, D), Class II, Division 1 (Groups E, F, G), and Class III environments, it meets NEMA 4, 4X (stainless steel), and 6P enclosure ratings. Key features include a removable armor-stop for expanded cable range compatibility, an integral sealing chamber for simplified liquid or putty sealant application, and a disconnectable construction that reduces cable preparation time. The fitting incorporates a Powergrip grounding ring for continuous armor grounding and an elastomeric collar ring/bushing to enhance sealing performance. The gland nut is designed for tool-free tightening using a hammer and screwdriver, streamlining installation in field conditions. Compatible with JMC, MC-HL, and Teck cable types, the STX200-473S is constructed from steel with zinc plating for corrosion resistance. The fitting's design minimizes field mismatches by overlapping adjacent hub size ranges, ensuring reliable cable-to-fitting compatibility across installations. With a strip length specification and gland torque rating optimized for mechanical integrity, this fitting delivers durable performance in petrochemical, oil and gas, and other high-risk industrial environments where explosion-proof cable management is critical.
  • Working with engineers from the petrochemical, oil and gas industries, Thomas & Betts then introduced the STAR TECK XP fitting.
  • With an easy-to-fill, integral sealing chamber and a disconnectable design requiring minimal cable preparation, this fitting became the benchmark for ease of installation in hazardous environments.
  • A line of liquid and putty sealants was also developed at the same time, eliminating the need for the cement sealants used up to this point.
  • Integral sealing chamber for liquid/putty sealants (replaces cement methods)
  • Powergrip grounding ring and tool-free gland nut tightening

Specifications

Application
For Hazardous Locations
Color
Red;Silver
Material
Steel
Series
STAR TECK XP
Size
2 Inches
Standard
CSA 23086
Type
Teck Cable Fittings
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
4.4000 L
Package Weight (Metric)
1.9960 kg
Connector, Adjustable Endstop, MC Feeder Cable, Two Screw, Steel, 1-1/2 Inch

685-UI

Connector, Adjustable Endstop, MC Feeder Cable, Two Screw, Steel, 1-1/2 Inch
PVC Coated Conduit Body Cover, Form 7, Size 1 Inch/27 Metric, Stamped Steel, Dark Gray

370-G1

PVC Coated Conduit Body Cover, Form 7, Size 1 Inch/27 Metric, Stamped Steel, Dark Gray
KIT GREASE FITTING WITH EXTENSION

GF 250 ODE-W22

KIT GREASE FITTING WITH EXTENSION
Fitting, Two Screw, Trade Size 1 Inch, Clamping Range 0.50 Inch-1.04 Inch, Width 2 Inches, Zinc Alloy, Suggested Application NMD90 4/2-2/2, 8/3-4/3

CI808

Fitting, Two Screw, Trade Size 1 Inch, Clamping Range 0.50 Inch-1.04 Inch, Width 2 Inches, Zinc Alloy, Suggested Application NMD90 4/2-2/2, 8/3-4/3
Fitting, Two Screw, Trade Size 1-1/4 Inch, Clamping Range 0.56 Inch-1.06 Inch, Width 2-3/16 Inches, Zinc Alloy, Suggested Application NMD90 4/2-2/2, 8/3-4/3

CI810

Fitting, Two Screw, Trade Size 1-1/4 Inch, Clamping Range 0.56 Inch-1.06 Inch, Width 2-3/16 Inches, Zinc Alloy, Suggested Application NMD90 4/2-2/2, 8/3-4/3
Fitting, Two Screw, Trade Size 3/4 Inch, Clamping Range 0.41 Inch-0.82 Inch, Width 1-3/16 Inch, Zinc Alloy. Suggested application NMD90 (loomex) 8/2-6/3.

CI806

Fitting, Two Screw, Trade Size 3/4 Inch, Clamping Range 0.41 Inch-0.82 Inch, Width 1-3/16 Inch, Zinc Alloy. Suggested application NMD90 (loomex) 8/2-6/3.
Nipple, 3/4 Inch Offset, Trade Size 1/2 Inch, Zinc Alloy

CI8104

Nipple, 3/4 Inch Offset, Trade Size 1/2 Inch, Zinc Alloy
Nipple, 3/4 Inch Offset, Trade Size 3/4 Inch, Zinc Alloy

CI8106

Nipple, 3/4 Inch Offset, Trade Size 3/4 Inch, Zinc Alloy

How to Install the STX200-473S Star Teck Cable Fitting

This guide provides step-by-step instructions for preparing the cable, installing the STX200-473S Star Teck fitting, and sealing it with liquid compound. This product must be installed by a qualified electrician in accordance with national and local electrical codes.

Estimated time: 1h 30m

Tools needed:

Hacksaw, Wire strippers, Wrench or Torque Wrench, Damp cloth

Supplies needed:

STX200-473S Cable Fitting, SC4-KIT-1 LIQUID SEALANT (3 units), Fiber damming material, Gloves

  1. Prepare the Cable for Installation

    WARNING: Risk of electrical shock. Before installing or performing maintenance, verify that all circuits are de-energized. Determine the working length of conductors required inside the enclosure. Remove a portion of the outer jacket to expose the armor, then cut the armor using a hacksaw. CAUTION: Do not nick or cut the conductor insulation. Trim the outer jacket to adjust the exposed armor strip length as indicated in the product documentation.

  2. Install Cable into Gland Nut and Tighten

    Feed the prepared cable through the gland nut opening and push until the cable armor hits the end stop. Tighten the gland nut until you obtain an appropriate seal or to the maximum torque of 1600 IN-LBS for the STX200-473S fitting. Ensure the bushing and collar ring seal evenly around the cable’s outer jacket and are flush with the gland nut face. Ensure the cable remains centered to obtain an optimal seal.

  3. Disassemble Fitting and Prepare Inner Cable

    Disassemble the hub from the body sub-assembly by loosening the union. Unscrew the sealing chamber from the body sub-assembly. Trim the inner jacket to a length of 1/8”-3/8” to expose the conductor bundle. If working with shielded data cables, additionally remove the outer (overall) shield and filler materials, taking care not to nick or damage any inner shields.

  4. Prepare Sealing Chamber for Compound Application

    Pack the fiber damming material tightly into all voids between the conductors and the body. Spread the strands of any uninsulated grounding conductor where applicable. Screw the sealing chamber back onto the body subassembly until it completely seats on the body.

  5. Apply Liquid Sealing Compound (SC4-KIT-1)

    Position the cable/fitting into a vertical orientation. Mix the SC4-KIT-1 liquid sealing compound following the instructions provided on its package. Dispense the sealing compound into the end of the sealing chamber until the level of compound stabilizes and fills to the top, as required for STX200-473S fittings. CAUTION: Remove all excess compound material from outside of the sealing chamber with a damp cloth. Do not use abrasive cleaners that may damage the flame path.

  6. Complete Final Assembly and Allow to Cure

    Mount the hub in the desired location. Allow the sealing compound to solidify for approximately 1 hour. Once the sealing compound is solidified, place the encapsulated assembly into the hub and secure it in position by tightening the union until it bottoms (metal to metal contact).

Frequently Asked Questions about ABB - Installation Products

How are Thomas and Betts products typically installed?

Thomas and Betts products are installed using a variety of methods tailored to specific applications, including the use of flexible cords and cable fittings, non-metallic cable glands, and armored cable fittings. Proper selection of fittings is crucial to match the cable type and installation environment, ensuring durability and preventing physical damage. Tools such as the Blackburn® Comfort Crimp® and HEX-FLEX® systems enhance installation efficiency and reliability, reducing labor time and ensuring secure connections.

What accessories are available for Thomas and Betts products?

Thomas and Betts offers a comprehensive range of accessories for their products, including various cord and cable fittings, non-metallic cable glands, service entrance cable fittings, and armored cable fittings. Their accessories are designed to enhance installation efficiency and ensure compatibility with different cable types and environmental conditions, providing reliable connections for a wide array of applications.

What environmental ratings do Thomas and Betts products have?

Thomas and Betts products feature robust environmental ratings, including NEMA Type 1, 2, 3, 4, 4X, 12, and 13 certifications, as well as IEC 60529 IP66 protection. These ratings ensure that their products are designed to withstand harsh industrial environments, with capabilities to resist dust, water, and corrosion, and operate effectively in a wide temperature range.

What communication protocols do Thomas and Betts products support?

Thomas and Betts products support a wide range of industrial communication protocols, including Ethernet, DeviceNet, PROFIBUS, Modbus, CANopen, and others. This extensive compatibility ensures seamless integration and reliable communication across various industrial automation systems, catering to diverse application needs.

What are the key features of Thomas and Betts products?

Thomas and Betts products are known for their innovative designs, high performance, and compliance with industry standards such as the National Electrical Code and Underwriters' Laboratories. They offer a comprehensive range of rugged and reliable electrical fittings, including liquidtight and dust-tight connections, which enhance installation efficiency and reduce overall project costs. Their products are engineered for durability in harsh environments, ensuring long-term reliability and lower installed costs.

What are the main product lines offered by Thomas and Betts?

Thomas and Betts offers a comprehensive range of product lines including electrical connectors, cable management systems, grounding and bonding solutions, and industrial automation components. Their products are designed for durability and reliability in demanding industrial environments, ensuring optimal performance and safety across various applications.

What technical support does Thomas and Betts offer?

Thomas and Betts offers comprehensive technical support, including access to field application engineers for onsite training and installation assistance. Their technical support staff is available to address inquiries related to product specifications and installation practices, ensuring optimal performance and safety of electrical systems. Additionally, they provide a variety of training programs to enhance the knowledge and skills of users in the field.

What industries and applications are Thomas and Betts products used for?

Thomas and Betts products are utilized across various industries including electrical construction, industrial automation, telecommunications, and utilities. Their extensive range of cord and cable fittings, electrical boxes, and metal framing systems are designed for applications that require durability and reliability in harsh environments, ensuring optimal performance in both permanent and temporary installations.

What certifications and standards do Thomas and Betts products comply with?

Thomas and Betts products comply with critical international certifications including UL (Underwriters Laboratories), CSA (Canadian Standards Association), and CE (European Community). Our products are designed to meet rigorous industrial standards such as NEMA enclosure ratings and IEC 60529 IP ratings, ensuring safety and reliability across various industrial applications.
