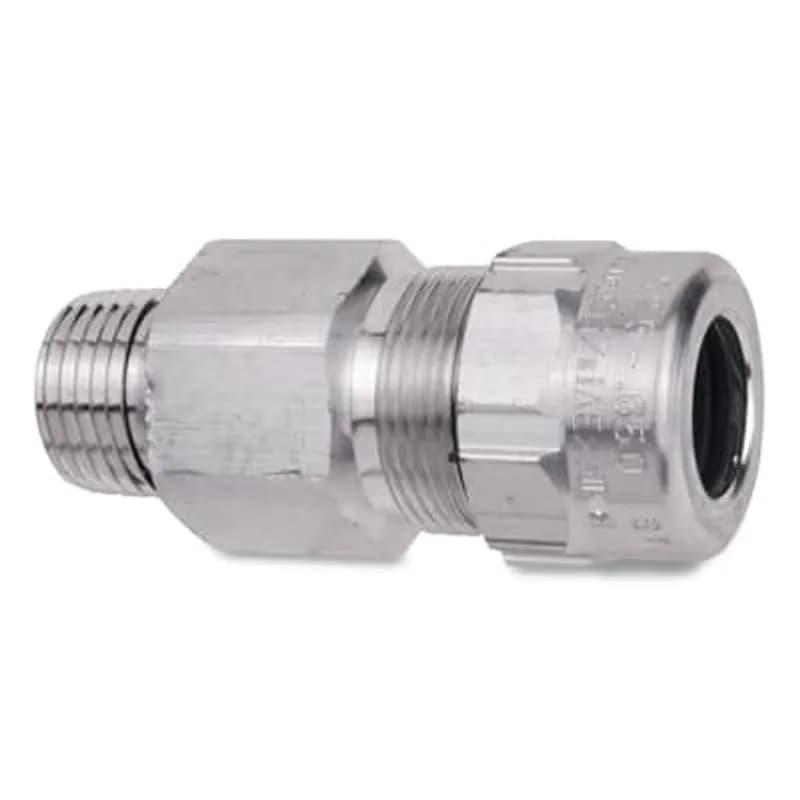

ABB Installation Products ST050-464S Star Teck steel jacketed cable fitting with sealing ring. Hub size of 1/2 inch. Range…
UPC: 786210877280
Contact for Pricing
Minimum Qty: 20
Multiplier: 20
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 1/2" NPT hub size for standard conduit connections
- Accommodates jacket diameters from 0.600" to 0.760"
- Stainless steel retaining ring and Power-Grip grounding ring for corrosion resistance and 360° grounding
- Tapered bushing design prevents water cupping in vertical installations
- Low-profile gland nut with screwdriver grooves and wrench flats for easy installation in tight spaces
Specifications
Color | Silver |
Material | Steel |
Size | 1/2 Inch |
Standard | UL E38947, CSA 23086, CSA 4484 |
Type | Teck Cable Fittings |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.3600 L |
Package Weight (Metric) | 0.1630 kg |
STE350S
Steel fitting with a hub size of 3-1/2 inches This fitting will terminate outer jacket diameters from 3.22 to 3.87 inches.
95138
Clamp-on service entrance cap for 4-inch EMT and rigid/IMC conduit. It is made of aluminum with a silver color and no additional finish. The enclosure is listed as Weatherhead.
ST050-465SS
Star Teck stainless steel jacketed cable fitting PVC coated. Hub size of 1/2 inch. Range over jacket from 0.725 - 0.885 inch.ST050-462SS
Star Teck stainless steel jacketed cable fitting. Hub size of 1/2 inch. Range over jacket from 0.525 - 0.650 inch.ST050-465
Star Teck aluminum jacketed cable fitting. Hub size of 1/2 inch. Range over jacket from 0.725 - 0.885 inch.ST050-464
Star Teck aluminum jacketed cable fitting. Hub size of 1/2 inch. Range over jacket from 0.600 - 0.760 inch.Frequently Asked Questions
What NEMA Type rating does the ST050-464S have?
The ST050-464S, with its zinc plated steel body and gland, has a Type 4 rating.
Is this connector suitable for metal clad cables?
Yes, the connector is listed for Metal Clad Cables (Type MC).
What certifications does this cable connector hold?
The connector is certified for Class I, Class II Group EFG, Class III, Ex E IIC, and Class I, Zone 1, AEx E II. It is also suitable for Class I, II, III Div 2 per NEC.
What type of bushing is used in the ST050-464 connector?
The ST050-464 connector uses a silicone bushing, as it falls within the ST050 to ST150 range.
What is the minimum throat diameter for the ST050-464?
The minimum throat diameter for the ST050-464 connector is 0.485 inches.
What is the cable armor range for the ST050-464?
The ST050-464 connector is designed for a cable armor range from 0.505 inches to 0.680 inches.
What is the cable jacket range for the ST050-464?
The ST050-464 connector accommodates a cable jacket range from 0.600 inches to 0.760 inches.
What is the NPT hub size for the ST050-464 connector?
The ST050-464 connector has an NPT hub size of 1/2-14.
What is the minimum throat diameter for the ST050-464?
The minimum throat diameter for the ST050-464 connector is 0.485 inches.
Is this connector suitable for metal clad cables?
Yes, the connector is listed for Metal Clad Cables (Type MC).
How to Install a Star Teck ST050-464S Cable Fitting
This guide provides step-by-step instructions for safely installing a Star Teck ST050-464S cable fitting, including proper cable preparation and securing for an optimal seal.
Estimated time: 15m
Tools needed:
Wire strippers, Hacksaw, Wrench, Torque wrench
Supplies needed:
Star Teck ST050-464S Cable Fitting, Armored Cable
- Ensure Safety and Qualified Installation
WARNING: Disconnect all power to the electrical system before beginning installation to prevent risk of shock. CAUTION: This product must be installed by a qualified electrician in strict accordance with all national and local electrical codes.
- Prepare the Cable for Fitting
Determine the required working length of the conductor inside the enclosure or device. Using wire strippers, carefully remove a portion of the cable's outer jacket to expose the armor. Cut the exposed armor to the appropriate strip length using a hacksaw, as indicated in the product table. Trim the outer jacket to adjust the exposed armor strip length. CAUTION: Exercise extreme care to avoid nicking or cutting the conductor insulation during this process.
- Feed Cable Through Gland Nut
Insert the prepared cable through the opening of the gland nut. Push the cable firmly until its armor makes contact with the internal end stop of the fitting. The fitting is designed not to require disassembly for this step.
- Tighten Gland Nut for Optimal Seal
Tighten the gland nut securely until an appropriate seal is achieved around the cable's outer jacket. Refer to the product table for the maximum torque specification for your specific fitting (e.g., ST050-464S). Ensure the bushing seals evenly and the cable remains centered within the fitting to achieve an optimal and watertight seal.
