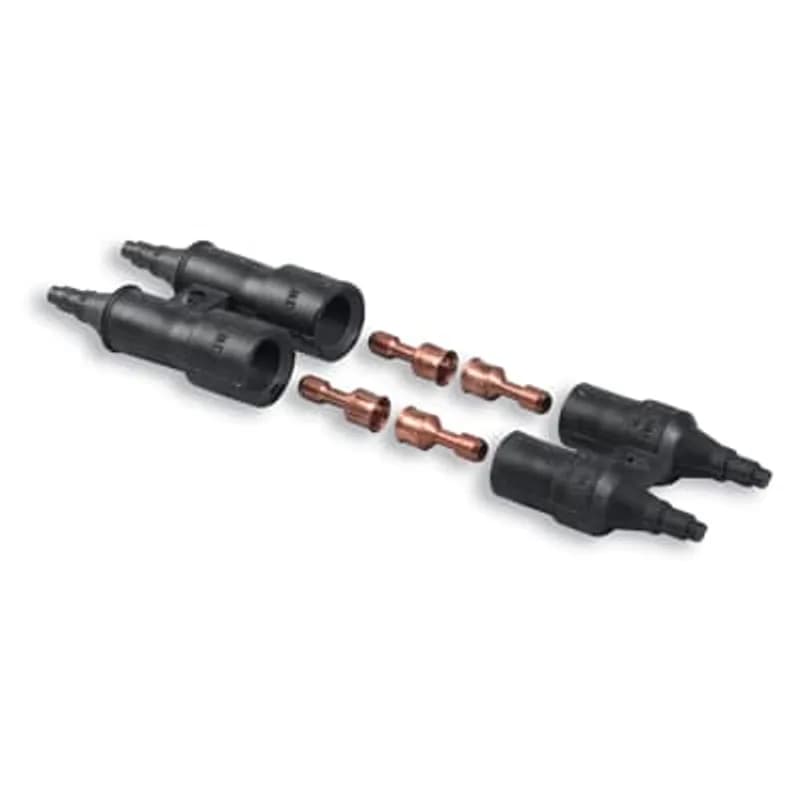

ABB Installation Products SLT 6 Copper Flood-Seal Street and Highway Lighting Compression Fuse Kits - In-Line, Twin…
UPC: 783786752461
Documents & Media
Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Call (262) 252-1600 or email [email protected] for pricing and availability.
Overview
- In-line compression fuse kit for street and highway lighting
- Supports stranded 14-6 AWG and solid 14-4 AWG copper wire
- Copper flood-seal design prevents moisture ingress and corrosion
- Twin housing construction for secure compression connections
- Compatible with NEMA and IEC lighting system standards
Specifications
Application | Rated 600 Volts, 30 Amps Maximum, perfect for heavy-duty applications |
Conductor Range | #14 to #6 STR AWG , #14 to #4 SOL AWG |
Connection | Compression |
Insulation | True |
Material | Copper |
Material | EPDM-Rubber Housing |
Number of Conductors | 4 |
Series | SLT |
Size | stranded 14-6 and solid 14-4 |
Special Features | EPDM Rubber housing ensures a fully insulated, watertight and submersible connection. Safe separations - fuse or connecting link stays in load side when separated. Breakaway design separates under tension so wires don't break |
Type | Breakaway Street Light Kit Fused |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.3800 L |
Package Weight (Metric) | 0.1720 kg |
SLK 6
Copper Flood-Seal Street and Highway Lighting Compression Fuse Kits - In-Line, Single Housing, wire size stranded 14-6 and solid 14-4
USK 2/0
Aluminum Flood-Seal Mechanical Splice Two-Wire Kits, conductor range 14-2/0 connector length 1-1/2 inch, slotted screw, screws per side 1
USK 350-12 DS
Aluminum Flood-Seal Mechanical Splice Two-Wire Kits, conductor range 6-350 connector length 12 inch, screws per side 2
USK 350
Aluminum Flood-Seal Mechanical Splice Two-Wire Kits, conductor range 6-350 connector length 2-9/16 inch, screws per side 1USK 350-12
Aluminum Flood-Seal Mechanical Splice Two-Wire Kits, conductor range 6-350 connector length 12 inch, screws per side 1
FYU 6
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits - Y Line mechanical run Compression Kits, fused, conductor range main 14-2 tap 14-6How to Install the Flood-Seal In-Line Fuse/Disconnect Kit
This guide provides step-by-step instructions for the safe installation and assembly of the Flood-Seal In-Line Fuse/Disconnect Kit, applicable to models like SLT 6, including cable preparation, crimping, and housing assembly.
Estimated time: 1h
Tools needed:
Crimp Tool (T&B WT 111M or TBM-20S), Wire Strippers
Supplies needed:
Line End Housing, Load End Housing, Fuse Clips, Silicone Grease, Assembly Dowel, Fuse (13/32 x 1-1/2 inch, 600V max, non-glass), Connecting Link (for SDK/SDT kits), Copper Wire (#14-2 AWG)
- Prepare for Installation and Ensure Safety
Identify Line and Load side wires and match housing body parts before installing. All associated wires and working area must be de-energized to prevent electric shock. Ensure installation is performed by trained installers in accordance with all applicable local, state, and national electrical codes, installation standards, and safety rules. Verify that only copper wire within the #14-2 AWG range is used. Confirm the use of a 13/32” x 1-1/2” fuse (600V max) and do not use a glass body fuse.
- Prepare Line End Housing and Cable
Select the correct cut-off ring on the Line End housing for the cable being used. Cut off the end of the housing at the tip of the arrow, leaving the correct cable size showing. Wipe the cable clean. Bevel the end of the cable insulation for ease of installation. Apply silicone grease to the end of the cable and to the cut opening of the Line End housing. Insert the cable until it extends 2” to 3” beyond the housing.
- Prepare Load End Housing and Cable
Repeat the preceding steps for the Load End housing: select the correct cut-off ring, cut the housing, clean the cable, bevel the insulation, apply silicone grease, and insert the cable until it extends 2” to 3” beyond the housing.
- Strip Cable Insulation and Crimp Fuse Clips
Strip 3/4” of insulation for 14 AWG to 10 AWG wires, or 3/8” of insulation for 8 AWG to 4 AWG wires. Do not pencil the insulation and do not exceed the specified strip length. Crimp a fuse clip onto each conductor (Line and Load) following the provided chart for recommended crimp tools and dies. For certain conductor sizes, perform two crimps rotated 90 degrees.
- Assemble Fuse Clips into Housings
Apply a small amount of silicone grease to each crimped fuse clip. Slide the Line End housing over its respective fuse clip until resistance is felt. Using the wood dowel as an assembly and depth gauge tool, insert the fuse clip to the depth indicated for the line side housing as marked on the dowel. DO NOT exceed this depth. Repeat this process for the Load End housing and its fuse clip, inserting it to the depth indicated for the load side.
- Insert Fuse or Connecting Link and Mate Housings
Insert the connecting link (if applicable for SDK/SDT kits) or the fuse into the Load End housing. Mate the Line End and Load End housings together firmly to establish the electrical connection.
