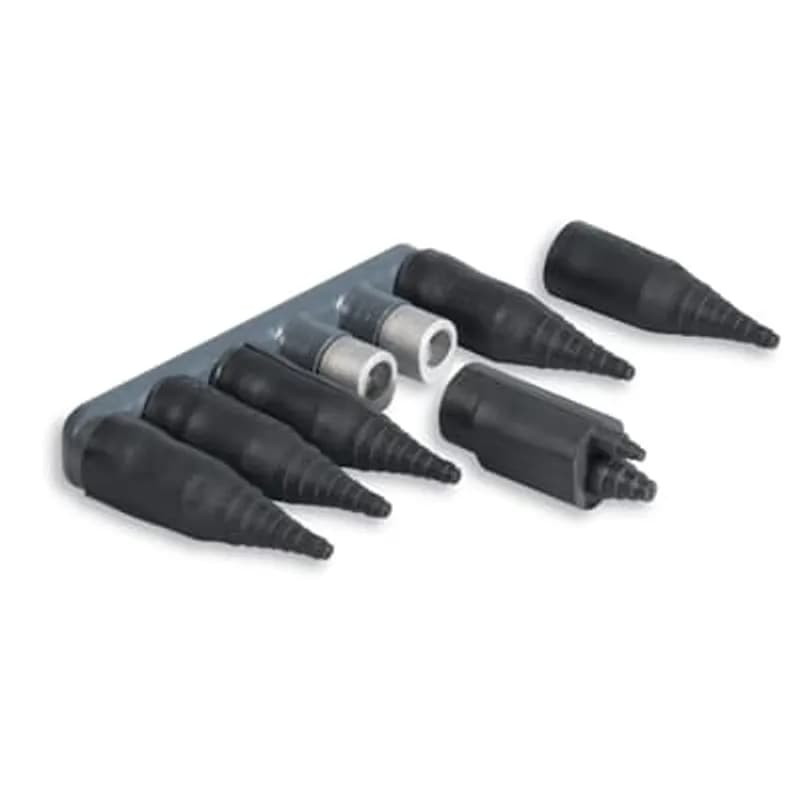

ABB Installation Products SHC 3 Aluminum Flood-Seal Mechanical Connectors with Streetlight option, dual rated, PVC…
UPC: 783786751808
Documents & Media
Contact for Pricing
Minimum Qty: 8
Multiplier: 8
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Dual-rated for feeder and streetlight outlets in one unit
- Mechanical compression design with flood-seal for watertight protection
- PVC insulation for dielectric strength and environmental resistance
- Accommodates cable ranges from 6 AWG to 350 AWG
- 5.25-inch length for compatibility with standard enclosures
Specifications
Application | Flood-Seal Mechanical Connector |
Color | Black |
Conductor Range | #6 to 350 kcmil |
Connection | Mechanical |
Connection Type | Mechanical |
Insulation | yes |
Material | Aluminum, PVC |
Material | Aluminum Connector |
Number Of Conductors | 3 |
Poles | 3 |
Size | 5-1/4 inch |
Size | 6-350 |
Special Features | Aluminum-alloy connector construction for High Strength and High Conductivity, Dual-rated for use with Copper or Aluminum Cables. All Connectors are 100 percent Hi-Pot tested at 4000 volts for 60 seconds |
Standard | ANSI C119.1 and C119.4 |
Type | Flood Seal Mechanical Connector |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.3900 L |
Package Weight (Metric) | 0.6310 kg |
SHC 4
Aluminum Flood-Seal Mechanical Connectors with Streetlight option, dual rated, PVC insulated, cable range feeder outlet S/L 6-350, outlets 4, length 7 inSHC 6
Aluminum Flood-Seal Mechanical Connectors with Streetlight option, dual rated, PVC insulated, cable range feeder outlet S/L 6-350, outlets 6, length 10-3/4 in
RXL 3 C
Aluminum Flood-Seal Multi-Port Santoprene Insulated Bus Connector - RXL 350 Series, Cable Range #12-350 kcmil, 4.3 X 4.0 X 2.63 inch, outlets 3, Oxide Inhibitor. Includes Cable Adapters, Plugs, Caps, Screws.RXL 6 C
Aluminum Flood-Seal Multi-Port Santoprene Insulated Bus Connector - RXL 350 Series, Cable Range #12-350 kcmil, 8.8 inch X 4.0 X 2.63 inch, outlets 6, Oxide Inhibitor. Includes Cable Adapters, Plugs, Caps, Screws.
RXL 600-31 C
Aluminum Flood-Seal Multi-Port EPDM Rubber Insulated Bus Connector - RXL 600 Series, Cable Range #6-600 kcmil, 4 Outlets - Side A has 3, Side B has 1. Oxide Inhibitor. 6.94 inch
UH 500-2 R
Aluminum Flood-Seal Twin-Screw Mechanical Connectors for 500 kcmil series - wire range 2-500 kcmil, length 3-7/8 inch, height 4-3/4 inch, outlets 2 with 2-Holes each. Black PVC Coating.
RAB 1/0-10
Aluminum Flood-Seal, Multi-Port Connector, RAB 1/0 Series, Conductor Range #14 - 1/0. Santoprene Coated. RUS Accepted. Total Outlets 10. Length 8-1/2 inch. Includes Caps and Screws.
How to Install Flood-Seal Mechanical Connector SHC 3-8 Series
This guide provides step-by-step instructions for the safe and correct installation of Thomas & Betts 'Flood-Seal' Mechanical Connectors, SHC 3 through SHC 8 Series. Installation must be performed by trained installers in accordance with all applicable local, state, and national electrical codes, installation standards, and safety rules.
Estimated time: 30m
Tools needed:
Wire strippers, Wire brush, Torque wrench (recommended), 5/16 inch allen wrench, 3/8 inch drive ratchet with allen adapter
Supplies needed:
SHC 3830 connector rocket (for feed cable), CS4197 connector rocket (for service cable), Electrical cable (feed or service), Silicone grease (included with rocket), Electrical compound
- Prepare the Connector Rocket
Identify the specific cable size you are using. For the feed cable, cut the SHC 3830 connector rocket as indicated. For the service cable, cut the CS4197 connector rocket as shown. Ensure you cut the rocket/cap ring at the tip of the arrow to expose the correct wire range for your cable size.
- Strip Cable Insulation
Carefully strip approximately 2-1/4 inches of insulation from the cable, exposing the conductor. While not strictly required, penciling the edge of the insulation is recommended for a smoother transition.
- Clean and Apply Compound to Conductor
Thoroughly wire brush the bare conductor to remove any surface oxides. After brushing, apply electrical compound and brush it into the conductor strands.
- Lubricate Cable and Install Rocket
Wipe the prepared cable clean. Apply the included silicone grease to the cable, then carefully slide the pre-cut connector rocket over the lubricated cable.
- Insert Conductor
Insert the prepared conductor into the connector outlet. Ensure that a maximum of 1/8 inch of bare conductor is visible after insertion.
- Position Rocket Sleeve
Slide the rocket sleeve over the connector outlet and onto the PVC shoulder. Continue sliding until the rocket firmly butts against the connector bar.
- Torque Setscrews
Tighten the setscrews onto the conductor to the specified torque. For wire sizes #12 to #2, apply 120 in-lbs (10 ft-lbs). For wire sizes 1/0 to 350 Kcmil, apply 360 in-lbs (30 ft-lbs). A torque wrench is recommended. If unavailable, use a 5/16” allen wrench or a 3/8” drive ratchet with an allen adapter. Do not use a 'T' handle wrench or 1/2” drive.
