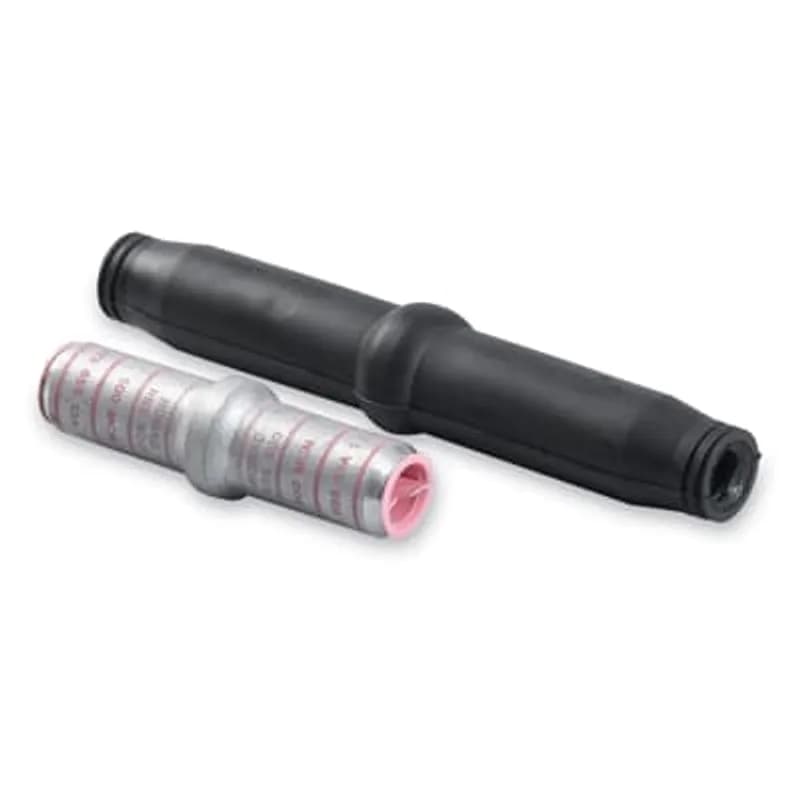

ABB - Installation Products RRK 4020-INS - Radiating Rib Splice System, Aluminum Compression Slice Kit, 4/0 to 2/0 AWG, Instruction Sheet included. For Aluminum Conductors Only.

ABB Installation Products RRK 4020-INS Radiating Rib Splice System, Aluminum Compression Slice Kit, 4/0 to 2/0 AWG, Instruction…

UPC: 075114176057


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Radiating Rib Splice System, SKU RRK 4020-INS, is a specialized aluminum compression splice kit designed exclusively for aluminum conductors. This system facilitates reliable and secure connections for conductor sizes ranging from 4/0 AWG to 2/0 AWG. The radiating rib design enhances heat dissipation and mechanical strength, ensuring a durable splice. Each kit includes a comprehensive instruction sheet to guide the installation process, emphasizing correct application for optimal performance. This product is engineered for electrical infrastructure and industrial applications where robust connections are paramount. The UNSPSC code for this product is 39121449. ABB Installation Products is the manufacturer. This splice kit is specifically for aluminum conductors, ensuring compatibility and preventing galvanic corrosion issues that can arise with dissimilar metals. The compression method provides a permanent, low-resistance electrical connection, crucial for maintaining system efficiency and preventing power loss. The included instructions detail the proper crimping procedure and tool requirements, ensuring a safe and effective installation. This system is a direct solution for joining aluminum conductors in power distribution, transmission, and industrial wiring projects.
  • Aluminum Compression Splice Kit for aluminum conductors only.
  • Accommodates conductor sizes from 4/0 AWG to 2/0 AWG.
  • Features a Radiating Rib design for enhanced heat dissipation.
  • Includes instruction sheet for proper installation.
  • Manufactured by ABB - Installation Products.

Specifications

Application
Dissipate Heat and Make Perfect Watertight Seals
Color
Pink/Gray
Conductor Range
4/0 to 2/0 AWG
Connection
Compression
Insulation
Yes
Material
Aluminum
Material
Aluminum Connector, EPDM Cover
Number Of Conductors
2
Series
RRK 4020
Size
4-1/4 inch Connector, 7-1/4 inch Cover
Size
4/0 to 2/0 AWG
Special Features
Prefilled with Oxide Inhibitor to Prevent Oxidation an Keep Out Moisture. Rubber Flood-Seal Insulating Cover fits Snugly for Maximum Heat Dissipation, No Tape Required. Compact Size. Radiating Rib Design Dissipated Heat, Centers the Watertight Insulating Cover and Seals Perfectly Every Time
Standard
ANSI C119.4
Type
Compression Splice Service Entrance Insulated
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.1900 L
Package Weight (Metric)
0.0860 kg
Aluminum Flood-Seal Compression Splice Kits, wire range 2/0, connector length 4-1/4 inch, insulator length 7-1/4 inch, dies 5/8 (7), color code Pink/Gray. For Aluminum Conductors Only.

RRK 4020

Aluminum Flood-Seal Compression Splice Kits, wire range 2/0, connector length 4-1/4 inch, insulator length 7-1/4 inch, dies 5/8 (7), color code Pink/Gray. For Aluminum Conductors Only.
Pre-Insulated Service Entry Sleeves 1/0 - 2 Str Pre-insulated service entry sleeves are used for fast and easy installation with standard tools. For combinations of aluminum-aluminum and aluminum-copper conductors. Meets the requirements of ANSI C119.4. Rated 600 Volts.

ISE135

Pre-Insulated Service Entry Sleeves 1/0 - 2 Str Pre-insulated service entry sleeves are used for fast and easy installation with standard tools. For combinations of aluminum-aluminum and aluminum-copper conductors. Meets the requirements of ANSI C119.4. Rated 600 Volts.
Aluminum splice, type SA, tin plated, 500 kcmil.

SA500-2

Aluminum splice, type SA, tin plated, 500 kcmil.
Radiating Rib Splice System, Aluminum Compression Slice Kit, 350 KCMIL to 4/0, Aluminum, Instruction Sheet included. For Aluminum Conductors Only.

RRK 35040-INS

Radiating Rib Splice System, Aluminum Compression Slice Kit, 350 KCMIL to 4/0, Aluminum, Instruction Sheet included. For Aluminum Conductors Only.
Aluminum Heat-Shrink Compression Splice Kits, wire range 350, connector length 4-1/2 inch, insulator length 7-1/2 inch, dies 840,TX,76,249,11A, no color code. For Aluminum Conductors Only.

RRK 350 HS

Aluminum Heat-Shrink Compression Splice Kits, wire range 350, connector length 4-1/2 inch, insulator length 7-1/2 inch, dies 840,TX,76,249,11A, no color code. For Aluminum Conductors Only.
Aluminum Heat-Shrink Compression Splice Kits, wire range 2/0, connector length 3 inch, insulator length 5-1/2 inch, dies 5/8 (5), color code Gray. For Aluminum Conductors Only.

RRK 20 HS

Aluminum Heat-Shrink Compression Splice Kits, wire range 2/0, connector length 3 inch, insulator length 5-1/2 inch, dies 5/8 (5), color code Gray. For Aluminum Conductors Only.
Aluminum Flood-Seal Compression Splice Kits, wire range 1, connector length 3 inch, insulator length 5-1/2 inch, dies 5/8 (5), color code Gray/Red. For Aluminum Conductors Only.

RRK 201

Aluminum Flood-Seal Compression Splice Kits, wire range 1, connector length 3 inch, insulator length 5-1/2 inch, dies 5/8 (5), color code Gray/Red. For Aluminum Conductors Only.
Aluminum Compression Splice Kit, Wire Range 4/0 ACSR STR Aluminum, Die 840, TX, 76, 249, 11A. Contains Oxide Inhibiting Compound. 10 inch long Connector Splice with 1.88 inch Deep Bores on each end. Includes (2) Santoprene Rockets and EPDM Rubber Liner and Silicon Grease.

FSK 4/0-10 W/FSS7141

Aluminum Compression Splice Kit, Wire Range 4/0 ACSR STR Aluminum, Die 840, TX, 76, 249, 11A. Contains Oxide Inhibiting Compound. 10 inch long Connector Splice with 1.88 inch Deep Bores on each end. Includes (2) Santoprene Rockets and EPDM Rubber Liner and Silicon Grease.

How to Install the RRK Series Radiating Rib Splice System

This guide provides step-by-step instructions for installing the RRK Series Radiating Rib Splice System, featuring Flood-Seal® EPDM insulation, to create a secure and insulated electrical connection. Installation must be performed by trained installers in accordance with all applicable local, state, and national electrical codes, installation standards, and safety rules.

Estimated time: 30m

Tools needed:

Crimping tool, Recommended crimping dies

Supplies needed:

RRK Series connector, EPDM rubber sleeve, Conductors, Grease

  1. Strip Cable Ends

    Strip the ends of the cables according to the following lengths: #2 to 2/0 cable requires 1-1/2 inches; 3/0 to 4/0 cable requires 2-1/4 inches; 250 to 350 mcm cable requires 2-1/2 inches; 500 mcm cable requires 2-3/4 inches.

  2. Prepare EPDM Rubber Sleeve

    Slide the EPDM rubber sleeve onto one of the conductors. If there is excess grease on the conductor, move it to the conductor insulation for later use in step 4.

  3. Insert and Crimp Conductors

    Insert the stripped conductors into the connector. Crimp the connector using the recommended dies marked on the connector. For 3/0 and 4/0 sizes, ensure you begin crimping at the designated 'BEGIN CRIMPING HERE' mark and avoid crimping at the 'DO NOT CRIMP HERE!' section.

  4. Spread Excess Grease

    Spread any excess grease, previously moved from the conductor in Step 2, over the crimped connector to ensure proper sealing and insulation.

  5. Position EPDM Rubber Sleeve

    Slide the EPDM rubber sleeve over the crimped connection until it locks firmly into position. Visually inspect the sleeve; a properly installed sleeve will show only one 'hump'.
