ABB - Installation Products RAB 65 C - Aluminum Flood-Seal Multi-Port Connectors - RAB 500 Series, cable range 12-500, length 9 inch, 229 mm, ports 6
More images

ABB Installation Products RAB 65 C Aluminum Flood-Seal Multi-Port Connectors - RAB 500 Series, cable range 12-500, length 9…

UPC: 783786745395


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

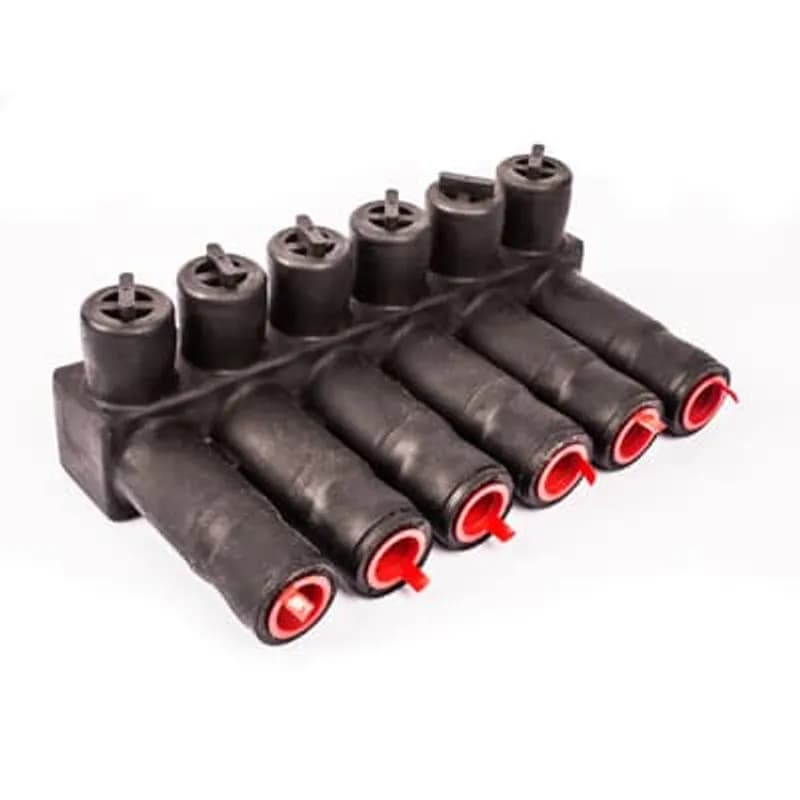

The ABB RAB 65 C, SKU RAB 65 C, is a 6-port aluminum flood-seal multi-port connector from ABB Installation Products. Designed for secure and waterproof cable terminations, this connector is part of the RAB 500 Series. It accommodates a broad cable range from 12 AWG to 500 AWG, making it suitable for heavy-duty power distribution, control systems, and motor wiring in industrial settings. The 9-inch (229 mm) length provides ample space for cable management and strain relief. The aluminum construction offers high conductivity and durability, contributing to reliable electrical connections. The RAB 65 C simplifies multi-cable terminations into a single, dependable connector. UNSPSC Code: 39121443.
  • 6-port aluminum flood-seal multi-port connector
  • Supports cable range: 12-500 AWG
  • Length: 9 inches (229 mm)
  • Durable aluminum construction for high conductivity

Specifications

Application
Direct-Burial, Pedestal or Vault Applications
Color
Black
Conductor Range
#12 AWG to 500 kcmil
Connection
Mechanical
Environmental Conditions
Waterproof
Insulation
yes
Material
Aluminum Connector, Santoprene Body
Material
Aluminum
Number of Conductors
6
Number of Poles
6
Poles
6
Series
RAB 500 Series
Size
length 9 inch, 229 mm
Size
9 inch, 229 mm
Special Features
Comapct Design, Built Touch for Rugged Conditions
Standard
ANSI C119.1 and C119.4 and Western Underground C.G. 2.5
Type
Aluminum Flood-Seal Multi-Port Connector RAB 500 Series
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.3800 L
Package Weight (Metric)
1.0800 kg
Multi Seal, Aluminum Insulated Bus Connector, #12 Solid - 350 kcmil, Aluminum and Copper, Four Conductor. Outward Rocket.

RAB 4 OR

Multi Seal, Aluminum Insulated Bus Connector, #12 Solid - 350 kcmil, Aluminum and Copper, Four Conductor. Outward Rocket.
Aluminum Flood-Seal Multi-Port Connectors - RAB 500 Series, cable range 12-500, length 12 inch, 305 mm, ports 8

RAB 85 C

Aluminum Flood-Seal Multi-Port Connectors - RAB 500 Series, cable range 12-500, length 12 inch, 305 mm, ports 8
Aluminum Flood-Seal Multi-Port Connectors - RAB 500 Series, cable range 12-500, length 6 inch, 152 mm, ports 4

RAB 45 C

Aluminum Flood-Seal Multi-Port Connectors - RAB 500 Series, cable range 12-500, length 6 inch, 152 mm, ports 4
Aluminum Flood-Seal Multi-Port EPDM Rubber Insulated Bus Connector - RXL 600 Series, Cable Range #6-600 kcmil, 6 Outlets - Side A has 4, Side B has 2. Oxide Inhibitor. 10.437 inch

RXL 600-42 C

Aluminum Flood-Seal Multi-Port EPDM Rubber Insulated Bus Connector - RXL 600 Series, Cable Range #6-600 kcmil, 6 Outlets - Side A has 4, Side B has 2. Oxide Inhibitor. 10.437 inch
Aluminum Flood-Seal Multi-Port Insulated Bus Connector - RXL 600 Series, Cable Range #6-600 kcmil, 6 Outlets all on Same Side.

RXL 600-6

Aluminum Flood-Seal Multi-Port Insulated Bus Connector - RXL 600 Series, Cable Range #6-600 kcmil, 6 Outlets all on Same Side.
Aluminum Flood-Seal Multi-Port Connectors - RMX Series, Cable entry one side only, length 21-3/4 inch, outlets 12

RXM 12

Aluminum Flood-Seal Multi-Port Connectors - RMX Series, Cable entry one side only, length 21-3/4 inch, outlets 12
Aluminum Flood-Seal Multi-Port Santoprene Insulated Bus Connector - RXL 350 Series, Cable Range #12-350 kcmil, 11.8 X 4.0 X 2.63 inch, outlets 8, Oxide Inhibitor. Includes Cable Adapters, Plugs, Caps, Screws.

RXL 8 C

Aluminum Flood-Seal Multi-Port Santoprene Insulated Bus Connector - RXL 350 Series, Cable Range #12-350 kcmil, 11.8 X 4.0 X 2.63 inch, outlets 8, Oxide Inhibitor. Includes Cable Adapters, Plugs, Caps, Screws.
Aluminum Flood-Seal Multi-Port Connectors - RMX Series, Cable entry from either side, length 7-1/4 inch, outlets 4

RXM 22

Aluminum Flood-Seal Multi-Port Connectors - RMX Series, Cable entry from either side, length 7-1/4 inch, outlets 4

Frequently Asked Questions

What cable sizes does the RAB 65 C support?

The RAB 65 C supports cable sizes ranging from 12 AWG to 500 AWG.

What is the length of the RAB 65 C connector?

The RAB 65 C has a length of 9 inches (229 mm).

How many ports does the RAB 65 C have?

The RAB 65 C features 6 ports for cable terminations.

What material is the RAB 65 C connector made of?

The RAB 65 C is constructed from aluminum for durability and high conductivity.

How to Install the RAB Submersible Set Screw Junction

This guide provides step-by-step instructions for installing the RAB series submersible set screw junction, including cable preparation, conductor insertion, and proper torquing of set screws.

Estimated time: 30m

Tools needed:

Wire brush, Torque wrench, Wire strippers, Screwdriver

Supplies needed:

RAB Submersible Set Screw Junction, Conductor cable, Silicone lubricant, Conductor cable seal sleeve, Set screw plug

  1. Prepare for Installation and Remove Sleeve

    WARNING: Disconnect all power before starting installation to prevent risk of shock. Ensure all apparatus are de-energized during installation or removal of parts. Remove the conductor cable seal sleeve from the bus as shown in the product diagram.

  2. Select and Cut Cable Seal Sleeve

    Select and cut the correct ring at the tip of the arrow on the sleeve based on conductor size and insulation diameter. Cut the sleeve straight across the end of the chosen ring. Specific cut points are provided for #4 to #2 (0.36”-0.46”), #12 to #6 (0.15”-0.35”), 3/0 to 4/0 (0.59”-0.72”), 250 to 350MCM (0.73”-0.90”), and #1 to 2/0 (0.47”-0.58”). For 400-500 kcmil wires, use the conductor port without a sleeve.

  3. Prepare Conductor Insulation

    Wipe the end of the conductor insulation clean. Apply silicone lubricant to the cleaned conductor insulation.

  4. Position Cable Seal Sleeve

    Slide the collar end of the prepared cable seal sleeve onto the cable, ensuring that 4 inches of the conductor insulation is exposed beyond the sleeve.

  5. Strip Conductor Insulation

    Strip the insulation from the conductor. Use a strip length of 1 3/8 inches, as indicated by the imprint on the bus cover.

  6. Clean Conductor

    Use a wire brush to thoroughly clean the conductor surface, breaking up any oxides present.

  7. Prepare Set Screw

    Back out the set screw sufficiently to create the necessary clearance for the conductor to be inserted.

  8. Insert Conductor

    Install the prepared conductor into the conductor port of the bus. Push the conductor until it firmly hits the bottom of the port. Verify full cable insertion by ensuring the sleeve tip is even with the end of the port.

  9. Torque Set Screws

    Torque the set screws according to the conductor size: #12 - 1/0 AWG/MCM to 110-120 inch-pounds; 2/0 - 4/0 AWG/MCM to 200-250 inch-pounds; 250 - 350 MCM to 300-400 inch-pounds; 400 - 500 MCM to 360-500 inch-pounds.

  10. Install Set Screw Plug

    Install the set screw plug into its designated port.

  11. Lubricate and Insert Sleeve

    Apply silicone lubricant to the outside of the cable seal sleeve on the ring marked 3/0-4/0. If this ring has been removed, apply lubricant to the 250-350 ring instead. Slide the lubricated sleeve into the port until its collar is flush against the end of the port.

  12. Repeat for Additional Conductors

    Repeat steps 2 through 11 for each additional conductor port requiring connection.
