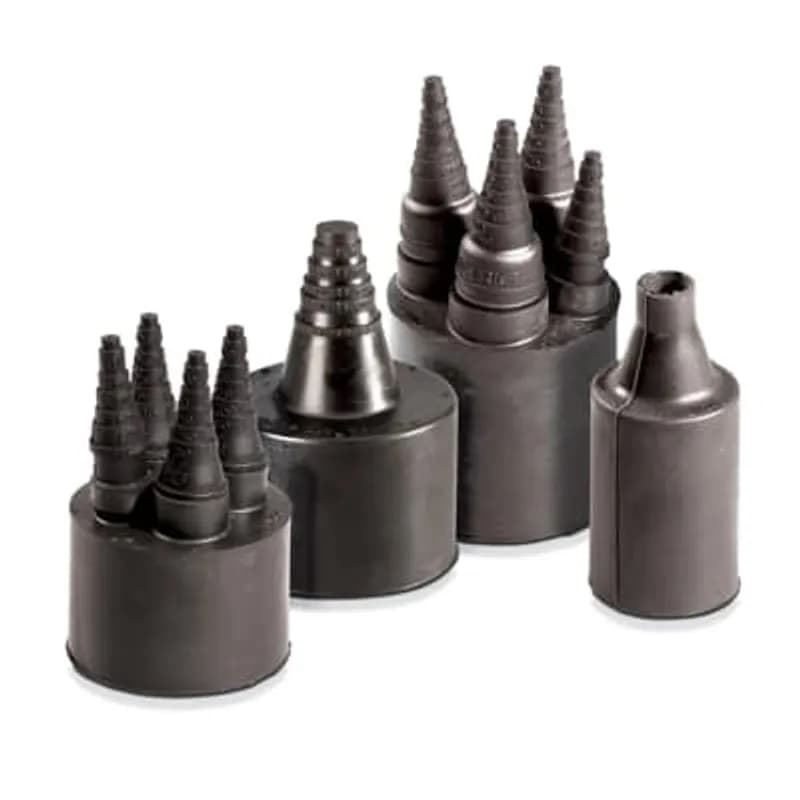

ABB - Installation Products PS 3 PIPE SEAL - Flood Seal, Pipe/Conduit Seal, Conductor Range (3) #14-350, (1)#14-250, Decimal Range (3) .160 inch - .980 inch, (1) .160 inch - .765 inch. 3 inch IPS (pipe size), Outside Body Length 13/16 inch

ABB Installation Products PS 3 PIPE SEAL Flood Seal, Pipe/Conduit Seal, Conductor Range (3) #14-350, (1)#14-250, Decimal Range…

UPC: 783786741687

Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB PS 3 PIPE SEAL is a flood seal designed for pipe and conduit applications, manufactured by ABB - Installation Products. This seal is engineered to provide a barrier against environmental ingress within 3-inch IPS (Iron Pipe Size) conduits. Its primary function is to prevent the passage of water and other contaminants, safeguarding the integrity of electrical conductors and connections within the conduit system. The PS 3 PIPE SEAL accommodates a range of conductor sizes. It supports up to three conductors in the #14 to #350 AWG range, and one conductor in the #14 to #250 AWG range. In decimal measurements, this translates to a capacity for three conductors with diameters from .160 inch to .980 inch, and one conductor with a diameter from .160 inch to .765 inch. The outside body length of the seal is 13/16 inch. This product is suitable for applications where conduit sealing is critical to maintaining operational reliability and preventing costly damage due to moisture or debris. The specific conductor ranges and pipe size compatibility make it a targeted solution for electrical installations requiring robust environmental protection. ABB's commitment to reliable installation products is evident in the precise specifications of the PS 3 PIPE SEAL, ensuring it meets the functional requirements for conduit sealing in various industrial settings.
  • ABB - Installation Products Flood Seal
  • Designed for 3-inch IPS pipe/conduit
  • Seals against water and environmental ingress
  • Accommodates multiple conductor sizes: (3) #14-350 AWG, (1) #14-250 AWG
  • Decimal conductor range: (3) .160"-.980", (1) .160"-.765"

Specifications

Material
EPDM Rubber
Outside Diameter
3-1/2 in
Size
Base Length 1-11/64 in
Special Features
Fits 3 inch Pipe, 4 Outlets with Rockets for Conductor Sizes (3) #14 AWG to 350 kcmil and (1) #14 AWG to 250 kcmil
Type
Pipe and Conduit Seal
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.3700 L
Package Weight (Metric)
0.1680 kg
FloodSeal Pipe/Conduit Seal, (3) #14 - 250, .160 - .785, 2 inch IPS, includes (1) Pipe Seal and (3) Caps - 2-55/64 inch long x 27/32 inch diameter, and Silicone Grease Packets.

PS 2 PIPE SEAL

FloodSeal Pipe/Conduit Seal, (3) #14 - 250, .160 - .785, 2 inch IPS, includes (1) Pipe Seal and (3) Caps - 2-55/64 inch long x 27/32 inch diameter, and Silicone Grease Packets.
Flood Seal, Pipe/Conduit Seal, Conductor Range (2) #14-350, (1)#14-250, Decimal Range (3) .160 inch - .980 inch, (1) .160 inch - .765 inch. 2-1/2 inch IPS (pipe size), Outside Body Length 13/16 inch

PS 25 PIPE SEAL

Flood Seal, Pipe/Conduit Seal, Conductor Range (2) #14-350, (1)#14-250, Decimal Range (3) .160 inch - .980 inch, (1) .160 inch - .765 inch. 2-1/2 inch IPS (pipe size), Outside Body Length 13/16 inch
Flood-Seal Pipe/Conduit Seals, pipe size 1-1/2, decimal range .720-1.200, outside body - length 1-3/8 inch

CIC 150

Flood-Seal Pipe/Conduit Seals, pipe size 1-1/2, decimal range .720-1.200, outside body - length 1-3/8 inch
Flood-Seal Pipe/Conduit Seals, pipe size 2, decimal range 1.093-1.562, outside body - length 2 inch

CIC 200

Flood-Seal Pipe/Conduit Seals, pipe size 2, decimal range 1.093-1.562, outside body - length 2 inch
Flood-Seal Pipe/Conduit Seals, pipe size 2, decimal range .937-1.145, outside body - length 4 inch

CIC 201

Flood-Seal Pipe/Conduit Seals, pipe size 2, decimal range .937-1.145, outside body - length 4 inch
Flood-Seal Pipe/Conduit Seals, pipe size 4, decimal range .830-2.234, outside body - length 3-1/8 inch

CIC 401

Flood-Seal Pipe/Conduit Seals, pipe size 4, decimal range .830-2.234, outside body - length 3-1/8 inch
Flood-Seal Pipe/Conduit Seals, pipe size 2, conductor range (1)14-400,(1)14-500, decimal range SL-.980, SL-.1.175, outside body - length 1-15/16 inch

C 5035

Flood-Seal Pipe/Conduit Seals, pipe size 2, conductor range (1)14-400,(1)14-500, decimal range SL-.980, SL-.1.175, outside body - length 1-15/16 inch
Flood Seal, Twin Tap EPDM Rubber Insulating Sleeve, #14 - 500 kcmil, Length 8-13/16 inch, 2-1/8 inch Outside Diameter.

CST 3136

Flood Seal, Twin Tap EPDM Rubber Insulating Sleeve, #14 - 500 kcmil, Length 8-13/16 inch, 2-1/8 inch Outside Diameter.

How to Install Flood-Seal Schedule 40 Internal Pipe Seals

This guide provides step-by-step instructions for trained installers to properly install Flood-Seal Schedule 40 Internal Pipe Seals, creating a fast, watertight seal around cables in pipe installations in accordance with all applicable electrical codes and safety rules.

Estimated time: 30m

Tools needed:

Utility knife

Supplies needed:

PS Series Pipe Seal body, Cable Sealing Rockets, Flood-Seal Rocket (for unused openings), Silicone grease, Insulated cables

  1. Train Cables

    Train insulated cables through the designated cable openings of the Pipe Seal body.

  2. Seat Pipe Seal Body

    Slip the Pipe Seal body over the cables and position it up to the pipe opening. Apply silicone grease generously to the pipe sealing portion of the body and to the cable openings. Firmly seat the Pipe Seal body into the open end of the pipe.

  3. Prepare Cable Sealing Rockets

    Select the appropriate cut-off ring on each Cable Sealing Rocket that matches the size of the cable it will seal and carefully cut it. Repeat this process for each cable sealing rocket being used. For single-phase applications, seal any unused openings with an uncut "Flood-Seal" Rocket.

  4. Apply Grease to Cables and Rockets

    Apply generous amounts of silicone grease to the cables and to the cut opening of each Cable Sealing Rocket.

  5. Install Cable Sealing Rockets

    Slide the appropriate greased Cable Sealing Rocket over each cable until it securely locks into the Pipe Seal body, ensuring a tight seal.
