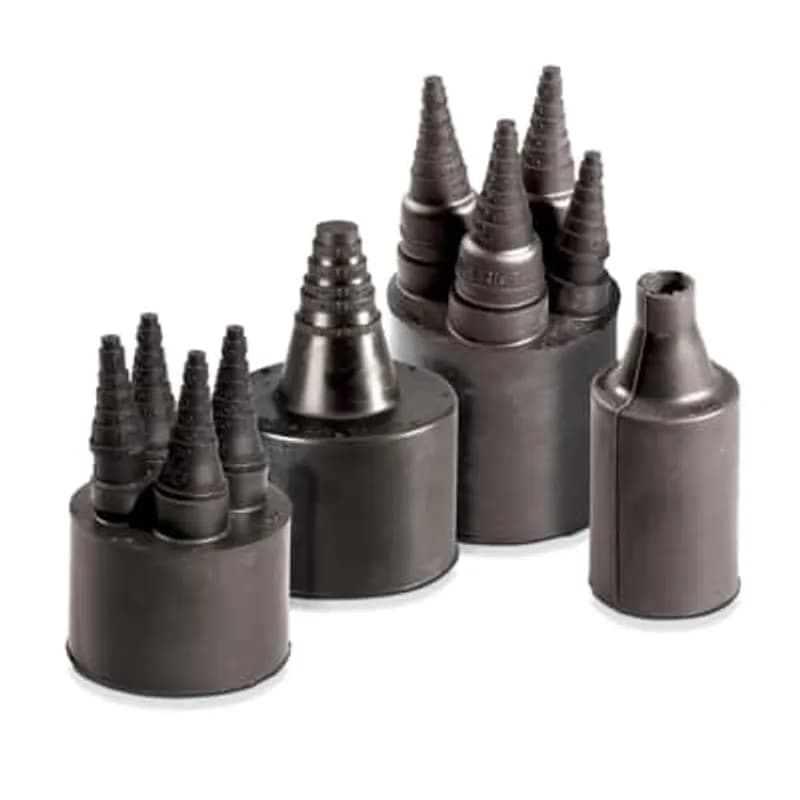

ABB - Installation Products PS 2 PIPE SEAL - FloodSeal Pipe/Conduit Seal, (3) #14 - 250, .160 - .785, 2 inch IPS, includes (1) Pipe Seal and (3) Caps - 2-55/64 inch long x 27/32 inch diameter, and Silicone Grease Packets.

ABB Installation Products PS 2 PIPE SEAL FloodSeal Pipe/Conduit Seal, (3) #14 - 250, .160 - .785, 2 inch IPS, includes (1) Pipe…

UPC: 783786741656

Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB FloodSeal Pipe/Conduit Seal (SKU: PS 2 PIPE SEAL) provides a reliable method for sealing 2-inch IPS (Iron Pipe Size) conduits. This system is designed to prevent the ingress of water, dust, and other contaminants, crucial for maintaining the integrity of electrical and communication systems in various industrial settings. The kit includes one primary pipe seal, specifically sized for 2-inch IPS conduit, and three accompanying caps. These caps are designed to accommodate wire fill ranges from #14 AWG to #250 kcmil conductors, with wire diameters ranging from .160 inches to .785 inches. The physical dimensions of the seal and caps are approximately 2-55/64 inches in length and 27/32 inches in diameter, ensuring a compact and effective seal. For ease of installation and to ensure a complete seal, the package also contains silicone grease packets. This product is manufactured by ABB - Installation Products, a recognized supplier in the electrical infrastructure market. The FloodSeal system is suitable for applications where environmental protection of conduit pathways is a priority, such as in outdoor installations, wet locations, or areas prone to dust accumulation. The UNSPSC code for this product is 31411901, categorizing it under electrical conduit fittings.
  • Seals 2-inch IPS conduit effectively.
  • Accommodates wire fill from #14 to #250 kcmil conductors.
  • Designed for wire diameters .160" to .785".
  • Includes (1) Pipe Seal, (3) Caps, and Silicone Grease Packets.
  • Compact dimensions: 2-55/64" L x 27/32" Dia.

Specifications

Application
For commercial pipes and conduits
Material
EPDM Rubber
Material
Silicone
Outside Diameter
2-3/8 in
Series
PS 2 PIPE SEAL
Size
Base Length 1-11/64 in
Size
Size #14 - 250, 0.160 - 0.785, 2 inch IPS
Special Features
Fits 2 inch Pipe, 3 Outlets with Rockets for Conductor Sizes #14 AWG to 250 kcmil
Type
Pipe and Conduit Seal
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.1900 L
Package Weight (Metric)
0.0860 kg
Flood-Seal Pipe/Conduit Seals, pipe size 2, conductor range (1)14-400,(1)14-500, decimal range SL-.980, SL-.1.175, outside body - length 1-15/16 inch

C 5035

Flood-Seal Pipe/Conduit Seals, pipe size 2, conductor range (1)14-400,(1)14-500, decimal range SL-.980, SL-.1.175, outside body - length 1-15/16 inch
Flood-Seal Pipe/Conduit Seals, pipe size 1-1/2, decimal range .720-1.200, outside body - length 1-3/8 inch

CIC 150

Flood-Seal Pipe/Conduit Seals, pipe size 1-1/2, decimal range .720-1.200, outside body - length 1-3/8 inch
Flood-Seal Pipe/Conduit Seals, pipe size 2, decimal range 1.093-1.562, outside body - length 2 inch

CIC 200

Flood-Seal Pipe/Conduit Seals, pipe size 2, decimal range 1.093-1.562, outside body - length 2 inch
Flood-Seal Pipe/Conduit Seals, pipe size 2, decimal range .937-1.145, outside body - length 4 inch

CIC 201

Flood-Seal Pipe/Conduit Seals, pipe size 2, decimal range .937-1.145, outside body - length 4 inch
Flood-Seal Pipe/Conduit Seals, pipe size 4, decimal range .830-2.234, outside body - length 3-1/8 inch

CIC 401

Flood-Seal Pipe/Conduit Seals, pipe size 4, decimal range .830-2.234, outside body - length 3-1/8 inch
Flood-Seal Pipe/Conduit Seals, pipe size 3, decimal range (all 3 outlets) 1.093 to 1.562 in, outside body - length 2-11/16 inch

CVC 3

Flood-Seal Pipe/Conduit Seals, pipe size 3, decimal range (all 3 outlets) 1.093 to 1.562 in, outside body - length 2-11/16 inch
Flood-Seal Pipe/Conduit Seals, pipe size 4, decimal range (all 3 outlets) 1.125 to 1.875 inch, outside body - length 3-3/16 inch

CVC 4

Flood-Seal Pipe/Conduit Seals, pipe size 4, decimal range (all 3 outlets) 1.125 to 1.875 inch, outside body - length 3-3/16 inch
Flood-Seal Pipe/Conduit Seals, pipe size 5, decimal range 1.250-2.00, outside body - length 3-7/16 inch

CVC 5

Flood-Seal Pipe/Conduit Seals, pipe size 5, decimal range 1.250-2.00, outside body - length 3-7/16 inch

How to Install the Flood-Seal Schedule 40 Internal Pipe Seal

This guide provides step-by-step instructions for installing the Flood-Seal Schedule 40 Internal Pipe Seal to create a watertight seal around cables in pipe installations, accommodating both single and three-phase applications.

Estimated time: 30m

Tools needed:

Utility knife

Supplies needed:

PS 2 PIPE SEAL body, Cable Sealing Rocket, Flood-Seal Rocket, Silicone grease, Insulated cables

  1. Train Cables Through Pipe Seal Body

    WARNING: Danger of Electric Shock! Installation must be performed by trained installers in accordance with all applicable local, state and national electrical codes, installation standards and safety rules. Carefully thread the insulated cables through the designated cable openings of the Pipe Seal body.

  2. Seat Pipe Seal Body into Pipe

    Slip the Pipe Seal body over the cables and position it up to the pipe opening. Apply silicone grease generously to the pipe sealing portion of the body and to the cable openings. Firmly seat the body into the open end of the pipe.

  3. Prepare Cable Sealing Rockets

    Select the cut-off ring on each Cable Sealing Rocket that precisely matches the size of the cable it will seal. Carefully cut off the selected ring. Repeat this process for every cable sealing rocket you intend to use.

  4. Seal Unused Openings (Single Phase)

    If installing for single-phase applications, seal any unused cable openings in the Pipe Seal body by inserting an uncut 'Flood-Seal' Rocket.

  5. Install Cable Sealing Rockets

    Apply generous amounts of silicone grease to the cables and to the cut opening of each prepared Cable Sealing Rocket. Slide the appropriate rocket over each cable until it securely locks into the Pipe Seal body, creating a positive seal.
