Contact for Pricing
Overview
- 600kV rated insulation for high-voltage disconnect switches
- Black thermoplastic rubber construction for UV/ozone resistance
- Precision fit for ABB MD-M and MD-F Disconnect Series (Body Size 3)
- Factory-tested dielectric strength and dimensional accuracy
- Meets IEC and ANSI standards for outdoor/indoor installations
Specifications
Application | Insulate motor lead disconnects |
Color | Black |
Material | Thermoplastic Rubber |
Material | Thermoplastic |
Series | MD-M and MD-F Disconnect Series |
Size | Body Size 3 |
Standard | UL E9809 |
Standard | UL E9809 / UL E9809 |
Type | Motor Disconnect Boot |
Voltage Rating | 600 kV |
Package Dimensions (L x W x H) | 2.56 IN x 1.81 IN x 4.9 IN |
Package Dimensions (L x W x H) | 6.5024 cm x 4.5974 cm x 12.446 cm |
Package Weight (Imperial) | 0.310 L |
Package Weight (Metric) | 0.141 kg |
MDBOOT-2
KUBE 600kV Insulator Boot for Disconnect Series MD-M and MD-F, Insulates Body Size 2, Black Thermoplastic RubberMDBOOT-1
KUBE 600kV Insulator Boot for Disconnect Series MD-M and MD-F, Insulates Body Size 1, Black Thermoplastic RubberMDBOOT-0
KUBE 600kV Insulator Boot for Disconnect Series MD-M and MD-F, Insulates Body Size 0, Black Thermoplastic Rubber

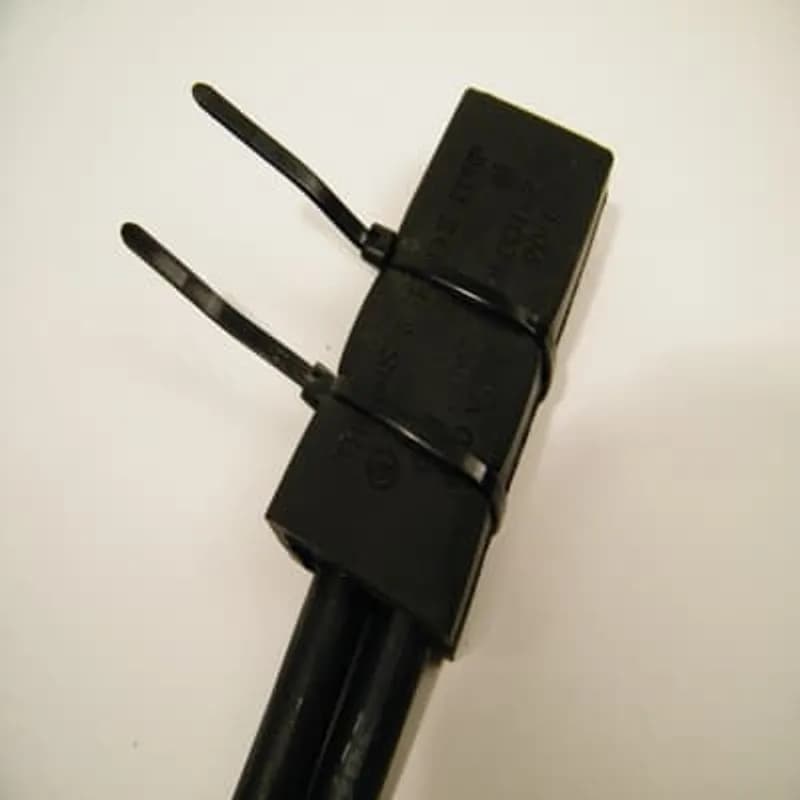

MDBOOT-4
KUBE 600kV Insulator Boot for Disconnect Series MD-M and MD-F, Insulates Body Size 4, Black Thermoplastic Rubber
LD2
2-Pole Luminaire Disconnect Kit Includes Two Male/Line Half and Two Female/Load Half of the Luminaire Diconnect Polybagged with Installation Instructions

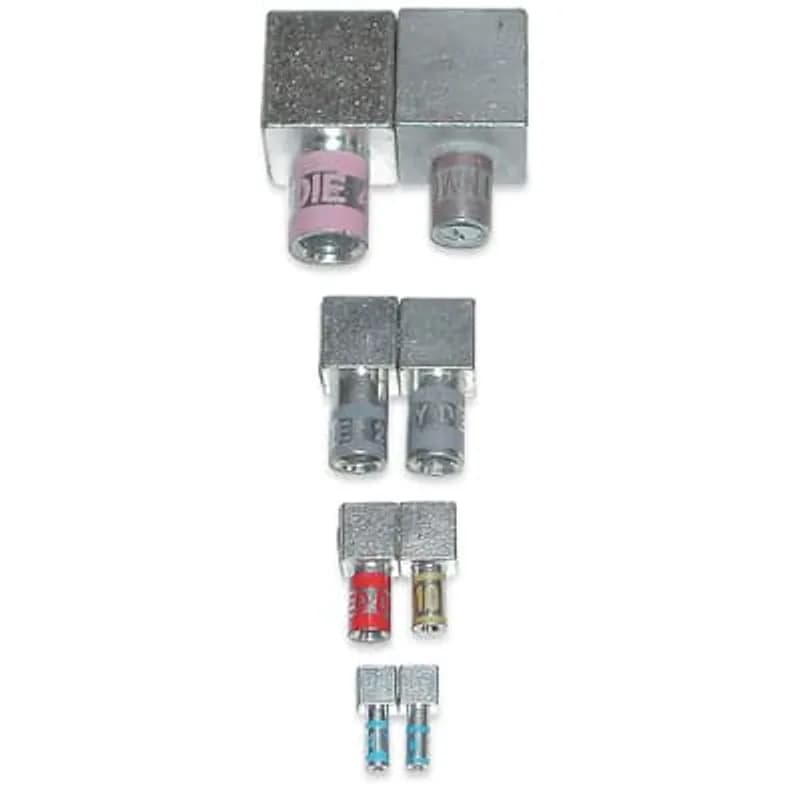

MD20F-3
KUBE Female Copper Motor Pigtail Disconnect, Wire Size 2/0 AWG, Body Size 3, Die Color Code BlackMD20M-3
KUBE Male (One Load) Copper Motor Pigtail Disconnect, Wire Size 2/0 AWG, Body Size 3, Die Color Code Black
ABC 6350 DS BB 11BLK
Aluminum Set Screw Bar Pedestal Connector, #12 - 350 kcmil, Aluminum-Copper, Six Conductor, Black
SS2 K
Storm-Safe Breakaway Service Entrance Kits- two service base kit, contact block - 1, assembly - 1 U-bolt, insulating rockets - 2 Flood-Seal , bolts - 3, bolt size - 1/2-13Frequently Asked Questions
What is the volume resistivity of MDBOOT-3?
MDBOOT-3 has a volume resistivity of 10^12 ohms-cm.
Which MDBOOT Motor Disconnect Boots are compatible with MDBOOT-3?
MDBOOT-3 should be used with MDBB-300, MDBB-400, MDBB-500, and MDBB-600 Motor Disconnect Boots.
Is MDBOOT-3 flame retardant?
Yes, MDBOOT-3 passes the UL 94 Vertical Flame Test.
What is the dielectric strength of MDBOOT-3?
MDBOOT-3 has a minimum dielectric strength of 300V/mil.
What is the chemical resistance of MDBOOT-3?
MDBOOT-3 resists acids, bases, and alcohols.
What are the dimensions of MDBOOT-3?
MDBOOT-3 has a width of 1.25 inches, a thickness of 0.05 inches, and comes in a standard roll length of 10 feet.
What is the service temperature range for MDBOOT-3?
MDBOOT-3 has a service temperature range of -40° F to 250° F.
What is the application temperature range for MDBOOT-3?
The application temperature range for MDBOOT-3 is 50° F to 200° F.
What is the MDBOOT-3 product?
MDBOOT-3 is a polybutene compound designed for sealing applications with MDBOOT Motor Disconnect Boots.
What is the application temperature range for MDBOOT-3?
The application temperature range for MDBOOT-3 is 50° F to 200° F.
How to Install the MDBOOT-3 Connector
This guide provides step-by-step instructions for installing the MDBOOT-3 connector, including wiring and securing connections.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Crimping tool, Multimeter
Supplies needed:
MDBOOT-3 connector, Mounting screws, Cable ties, Insulation boots
- Disconnect power
Ensure that the power is disconnected before starting the installation to prevent electric shock.
- Select and prepare connectors
Choose the appropriate MDBOOT-3 connectors based on the wire sizes. Strip the wires to the specified length as per Table III.
- Attach wires to connectors
Insert the stripped wires into the male and female connectors and crimp them securely using the appropriate crimping tool.
- Insert male pin into female barrel
Push the male pin into the female barrel until it is fully seated to create a secure connection.
- Slide on insulation boot
Slide the insulation boot onto the pigtail connectors until it stops, ensuring proper coverage.
- Secure the boot with cable ties
Fasten the first cable tie at the middle of the boot and the second tie 1/4 inch from the end. Cut off any excess tie material.
- Dress lead assemblies
Carefully dress the lead assemblies into the junction box, ensuring no wires are pinched or damaged.
- Verify connections
Use a multimeter to check the connections for continuity and ensure proper installation before restoring power.
