Contact for Pricing
Minimum Qty: 2000
Multiplier: 2000
*Contact for lower quantities*

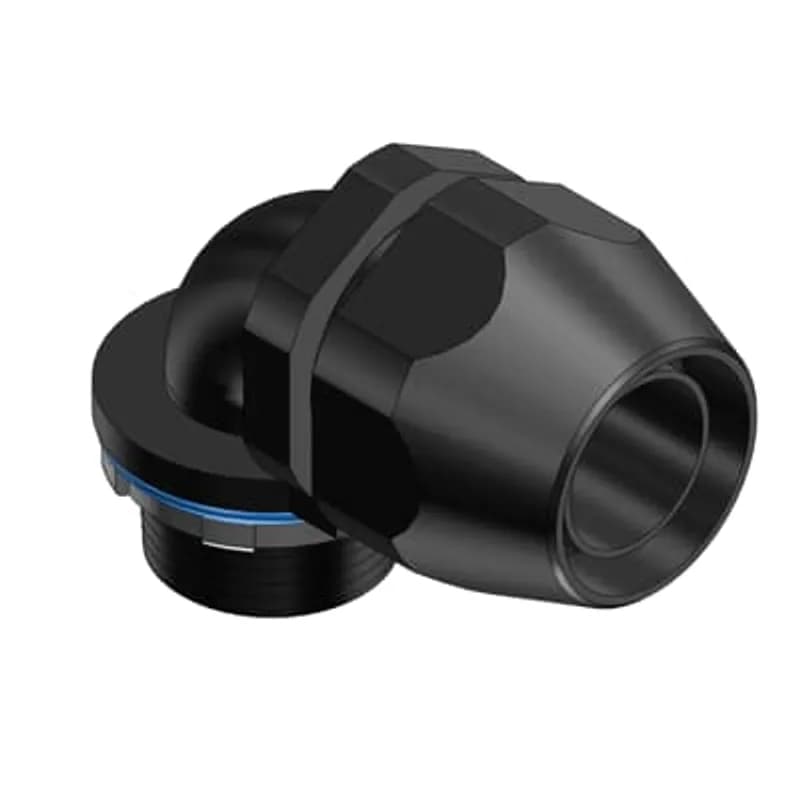

Overview
- 1/2 Inch Conduit Size
- 90 Degree Angle
- Non-Metallic Construction
- ISO Metric Thread Standard
- Liquidtight Seal
Specifications
Application | T&B Bullet liquidtight fitting and EFC non-metallic conduit are suited for OEM applications as in the machine tool industry where environments include continuous motion, vibration and exposure to moisture, oil, dirt and dust |
Material | Thermoplastic |
Size | 1/2 Inch |
Standard | E 23018 |
Type | ISO Metric Bullet-90 Degree |
Package Dimensions (L x W x H) | 6 IN x 5 IN x 4 IN |
Package Dimensions (L x W x H) | 15.24 cm x 12.7 cm x 10.16 cm |
Package Weight (Imperial) | 0.0900 L |
Package Weight (Metric) | 0.0410 kg |
LTA03810
3/8 Inch Steel Liquidtight Adapter, Thread Size 5/8 Inch-24 UNEF-2B, Rigid Conduit to Metric
LTA05014
1/2 Inch Steel Liquidtight Adapter, Thread Size 3/4 Inch-20 UNEF-2B, Rigid Conduit to Metric
035-72735-1
Retaining Ring for Straight Strain Relief Cord Connector Outer Diameter Diameter 0.83, Inner Diameter 0.41
035-72775-25
1-1/2 Inch Straight Die Cast Zinc Liquidtight Strain Relief Cord Connector, Cord Range 0.812 to 1.000Frequently Asked Questions
What is the minimum D dimension for the LT950PISO20 fitting?
The minimum D dimension for the LT950PISO20 fitting is 0.550 inches (13.97 mm).
What materials are used in the construction of the fitting?
The body and gland are weather-stabilized thermoplastic, the O-ring is Nitrile, and the locknut is electro zinc plated steel.
What is the operating temperature range for the product?
The product operates within a temperature range of -18°C to +105°C (-2°F to +221°F).
What type of conduit is compatible with this connector?
This connector is designed for liquid-tight non-metallic conduit (UL Type B) or non-metallic tubing.
Does the fitting provide a liquid-tight seal?
Yes, the connector is designed to provide a liquid-tight seal and meets watertight requirements for Type 4 and Type 6 enclosures.
What standards does this connector conform to?
It conforms to C.S.A. 22.2 No. 227.2 & No. 227.3, ANSI/UL514B, and Federal Standards H28 (NPT threads).
What is the material flammability rating?
The material flammability rating for the thermoplastic is UL94-V2.
What is the trade size and thread type for LT950PISO20?
The LT950PISO20 has a 1/2 inch trade size and 1/2 - 14 (20) NPT (ISO) thread.
What are the installation requirements for this product?
The product must be installed in accordance with applicable national and local electrical codes.
What is the material flammability rating?
The material flammability rating for the thermoplastic is UL94-V2.
