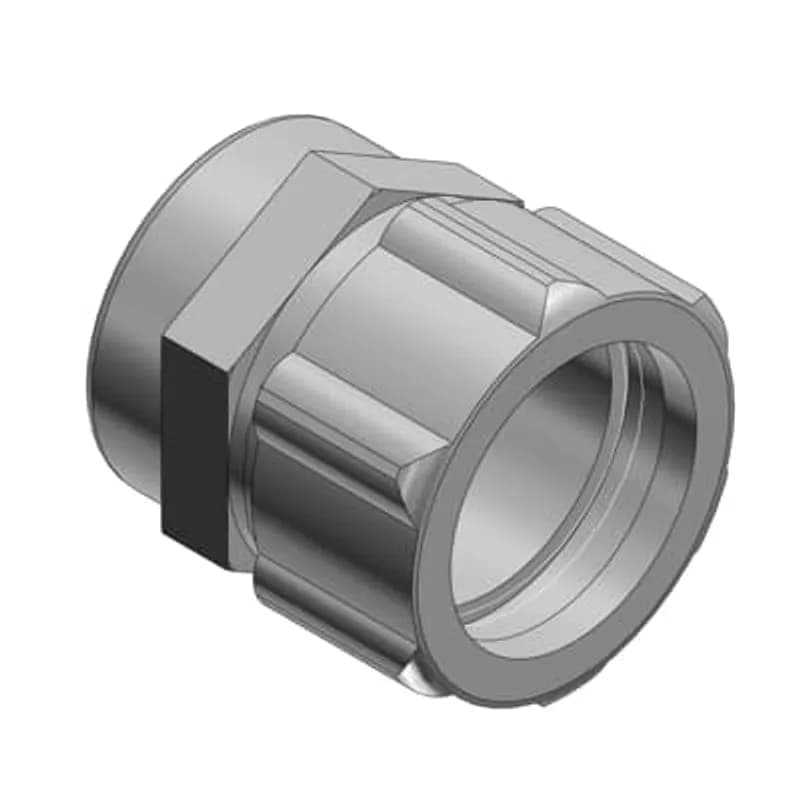

ABB Installation Products LTA05014 1/2 Inch Steel Liquidtight Adapter, Thread Size 3/4 Inch-20 UNEF-2B, Rigid Conduit to…
UPC: 786210793665
Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 1/2 inch trade size conduit entry for rigid conduit
- 3/4 inch-20 UNEF-2B internal thread for metric connections
- Steel construction for durability and physical protection
- Compatible with AN-MS connector shells (sizes 14, 14S)
- Dimensions: 1 5/16" (A) x 1 1/4" (B)
Specifications
Material | Steel |
Size | 1/2 Inch |
Standard | UL E23018, CSA |
Type | Adapters |
Package Dimensions (L x W x H) | 6 IN x 4 IN x 4 IN |
Package Dimensions (L x W x H) | 15.24 cm x 10.16 cm x 10.16 cm |
Package Weight (Imperial) | 0.1800 L |
Package Weight (Metric) | 0.0820 kg |
035-72735-1
Retaining Ring for Straight Strain Relief Cord Connector Outer Diameter Diameter 0.83, Inner Diameter 0.41
035-72775-25
1-1/2 Inch Straight Die Cast Zinc Liquidtight Strain Relief Cord Connector, Cord Range 0.812 to 1.000035-72775-22
1-1/4 Inch Straight Die Cast Zinc Liquidtight Strain Relief Cord Connector, Cord Range 1.065 to 1.205035-72775-2
1/2 Inch Straight Die Cast Zinc Liquidtight Strain Relief Cord Connector, Cord Range 0.250 to 0.375035-72775-30
2 Inch Insulated Watertight Strain Relief Connector, Straight, Cable Size 1.375 to 1.625 Inch, Steel, Zinc PlatedHow to Install T&B Liquidtight Connectors
This guide provides the proper method for installing T&B liquidtight connectors with flexible metallic conduit, ensuring high performance and reliability. Always read all instructions and safety information, disconnect power, and wear appropriate safety gear before beginning.
Tools needed:
Hacksaw, Power band saw (optional), Metal jig (optional), Smooth jaw wrench (for PVC coated connectors)
Supplies needed:
Liquidtight flexible metallic conduit, T&B 140 series locknuts (for knockout applications), 5260 series sealing gaskets (for knockout applications), PVC cement (if needed for PVC coated connectors)
- Prepare the Conduit
WARNING: Disconnect power before installation to prevent risk of shock. Cut the flexible conduit with a clean, square end cut. Use a metal jig, a 32 Tooth/In. sharp hacksaw, or a 24-32 Tooth/In. wavy set power band saw (not more than 400'/minute). Do not use an abrasive wheel.
- Assemble the Connector Components
For 5000, 7000, 9000, and PVC coated 3300 series connectors, slide the gland nut onto the conduit, followed by the nylon sealing ring. Then, thread the Safe Edge™ Cone into the connector body. For PVC coated connectors, use a smooth jaw wrench to avoid gouging; if metal is exposed, apply PVC cement. For knockout applications, use T&B 140 series locknuts and 5260 series sealing gaskets (purchased separately).
- Secure the Connector
Insert the connector body into the knockout box or desired opening. Secure the connector by tightening the gland nut to the body. Refer to the provided torque table for the correct tightening torque based on the fitting's trade size (e.g., 3/8" requires 200 lb.-in., 1/2" requires 300 lb.-in., up to 4" requiring 1600 lb.-in.). CAUTION: Product should be installed by a qualified electrician in accordance with national and local electrical codes. Wear hand and eye protection during installation.
