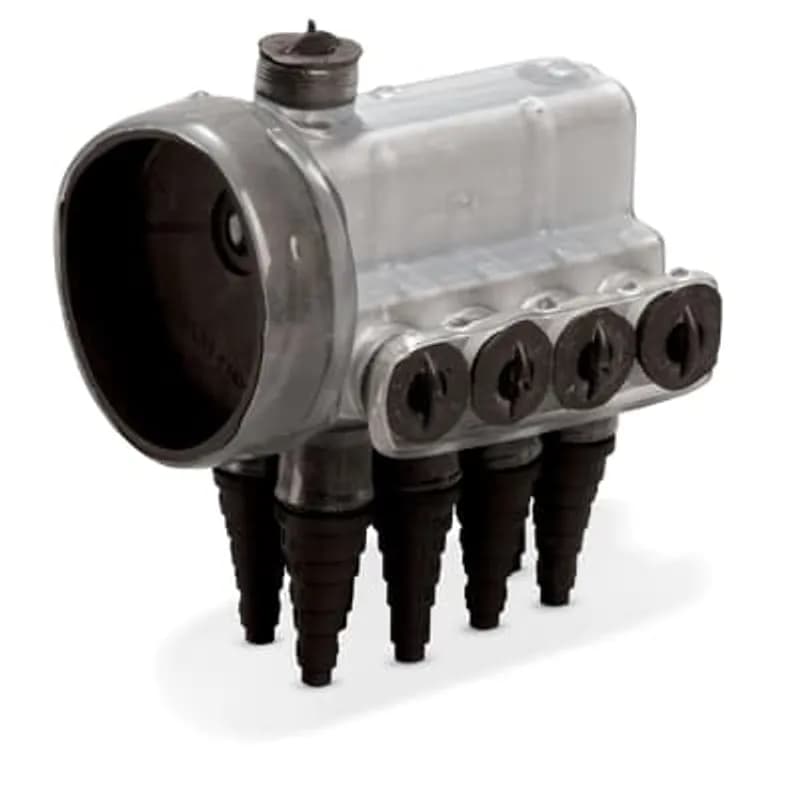

ABB - Installation Products LRT 44 UW - Aluminum Universal Quick Disconnect Transformer Connectors - LRT-UW Series, fully insulated, cable range 12-350, length 4 in, height 2-1/2 in, stud size 5/8 & 1, outlets 8

ABB Installation Products LRT 44 UW Aluminum Universal Quick Disconnect Transformer Connectors - LRT-UW Series, fully…

UPC: 783786738281


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 54

Multiplier: 54

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB LRT 44 UW, part of the LRT-UW Series, is a fully insulated aluminum universal quick disconnect transformer connector designed for reliable electrical connections. This connector accommodates a cable range from 12 to 350 AWG, offering versatility for various transformer applications. Its compact dimensions, with a length of 4 inches and a height of 2-1/2 inches, facilitate installation in confined spaces. The LRT 44 UW features multiple outlets, specifically 8, allowing for flexible wiring configurations. It is compatible with stud sizes of 5/8 inch and 1 inch, ensuring broad compatibility with standard transformer hardware. Manufactured by ABB - Installation Products, this connector is built for efficient and secure termination in electrical distribution systems. The universal design simplifies inventory and application, reducing complexity for installers and maintenance personnel. Its fully insulated construction enhances safety by minimizing the risk of accidental contact with live components. The robust aluminum construction provides excellent conductivity and corrosion resistance, ensuring long-term performance in industrial environments. This connector is suitable for use in transformer connections where quick and secure disconnect capabilities are essential for maintenance or operational changes.
  • Fully insulated aluminum construction for enhanced safety
  • Universal design for broad application compatibility
  • Accommodates cable range from 12 to 350 AWG
  • Features 8 outlets for flexible wiring
  • Compatible with 5/8" and 1" stud sizes

Specifications

Application
Transformer Connection
Conductor Range
#12 to 350 kcmil
Connection
Mechanical
Insulation
True
Material
Aluminum
Number of Conductors
8
Size
4 inch x 2-1/2 inch
Special Features
Compact Design halves Cantilever Stress and Doubles cable capacity, lessening the occurrence of leaky bushings. Fully Insulated Transformer connector to protect connections
Type
Stud-Mount Transformer Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.6200 L
Package Weight (Metric)
1.1880 kg
