UPC: 786209869760
Contact for Pricing
Minimum Qty: 2
Multiplier: 2
*Contact for lower quantities*
Overview

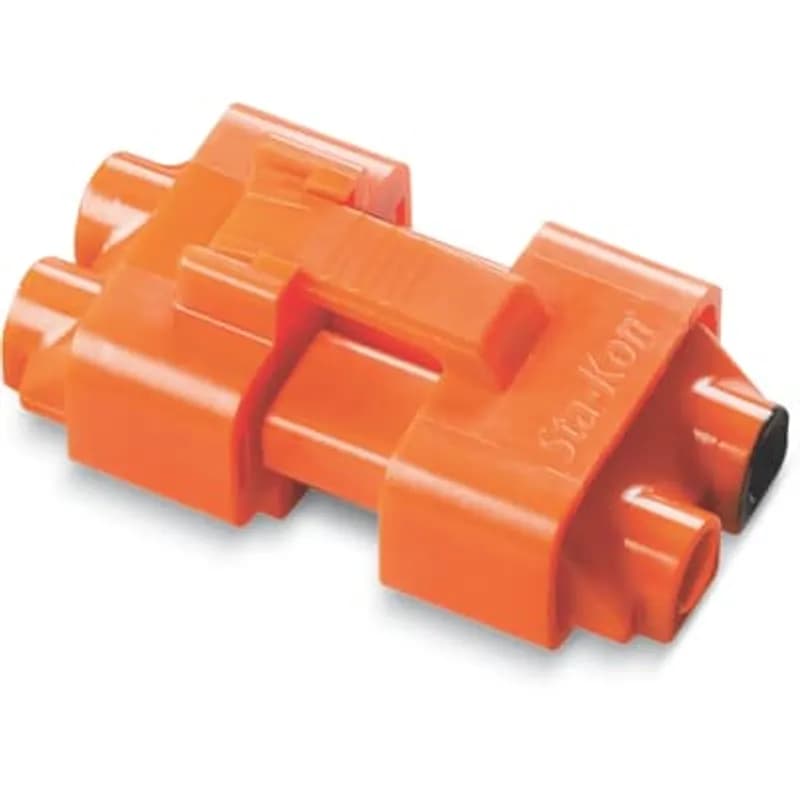

- Includes two male/line halves and two female/load halves for secure connections
- Polybagged with detailed installation instructions for ease of use
- Designed for commercial and industrial lighting applications
- Enhances maintenance efficiency and reduces downtime
- Manufactured by ABB—Installation Products for superior reliability
Specifications
Amperage Rating | 4 A |
Color | Orange |
Finish | Tin Plated |
Material | Brass |
Special Features | Oversized electrical contacts improve conductivity and reduce temperature rise. Integral wire leads ease installation. Fool-proof design enables mating halves to be installed in only one way. Finger-safe line side prevents installer from touching hot contacts. Rounded compact design small enough to be used in compact applications - fits through 1/2 knockout." |
Standard | UL E307134 |
Type | Disconnects |
Voltage Rating | 600 V |
Package Dimensions (L x W x H) | 1 IN x 4.34 IN x 10.25 IN |
Package Dimensions (L x W x H) | 2.54 cm x 11.0236 cm x 26.035 cm |
Package Weight (Imperial) | 0.120 L |
Package Weight (Metric) | 0.054 kg |
SF16-250-3-S
16-14 AWG Uninsulated Female Flag Terminal with 0.250 Stud - 20 Count Uninsulated Female Disconnects is made of electro tin plated copper. 600V, 105 degrees C. FEATURES: STYLE: Female Flag MATERIAL: Tin Plated Brass QUANTITY: 20 Count WIRE SIZE: 16-14 STUD SIZE: 0.250 BRAND EQUIVALENT: Morris Products 12424 Ideal 83-9401
RB23
Nylon Insulated Wristlock Disconnect, Length 1.70 Inches, Single Piece Length .99 Inches, Maximum Insulation .162, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated, 1,000 Pack
266-30490-316
T&B Method Traction Motor Disconnect Cast Copper Lug for Diesel-Electric Locomotives for Wire Size 775/24, 1 hole style, Bolt Size 1/2
M2D8M-2
KUBE Male (Two Load) Copper Motor Pigtail Disconnect, Wire Size 8 AWG, Body Size 2, Die Color Red
M2D2M-2
KUBE Male (Two Load) Copper Motor Pigtail Disconnect, Wire Size 2 AWG, Body Size 2, Die Color Brown
MD6M-2
KUBE Male (One Load) Copper Motor Pigtail Disconnect, Wire Size 6 AWG, Body Size 2, Die Color Code BlueHow to Install the LD3 Fluorescent Luminaire Disconnect
This guide provides step-by-step instructions for safely installing the LD3 Fluorescent Luminaire Disconnect, ensuring proper wiring and functionality.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Disconnect power
Ensure the power is disconnected to avoid electrical shock during installation.
- Access the ballast
Remove any lamps and access covers on the luminaire to gain access to the ballast and supply wires.
- Connect the male side
Using appropriate rated wiring connectors, attach the line (black leads) and neutral (white leads) of the male side of the disconnect to the corresponding ballast leads. Ensure the male side is marked 'load'.
- Connect the female side
Using appropriate rated wiring connectors, attach the line (black leads) and neutral (white leads) of the female side of the disconnect to the corresponding incoming supply leads. Ensure the female side is marked 'line'.
- Mate the disconnect halves
Before mating the two halves, ensure a positive latch by pressing the latching member on the female side down and then releasing it. Mate the male and female halves together until you hear an audible click.
- Reinstall covers and lamps
Reinstall any access covers and lamps that were removed during the installation process.
- Energize and test
Energize the circuit and confirm that the luminaire is functional. Use a multimeter to verify proper operation if necessary.
