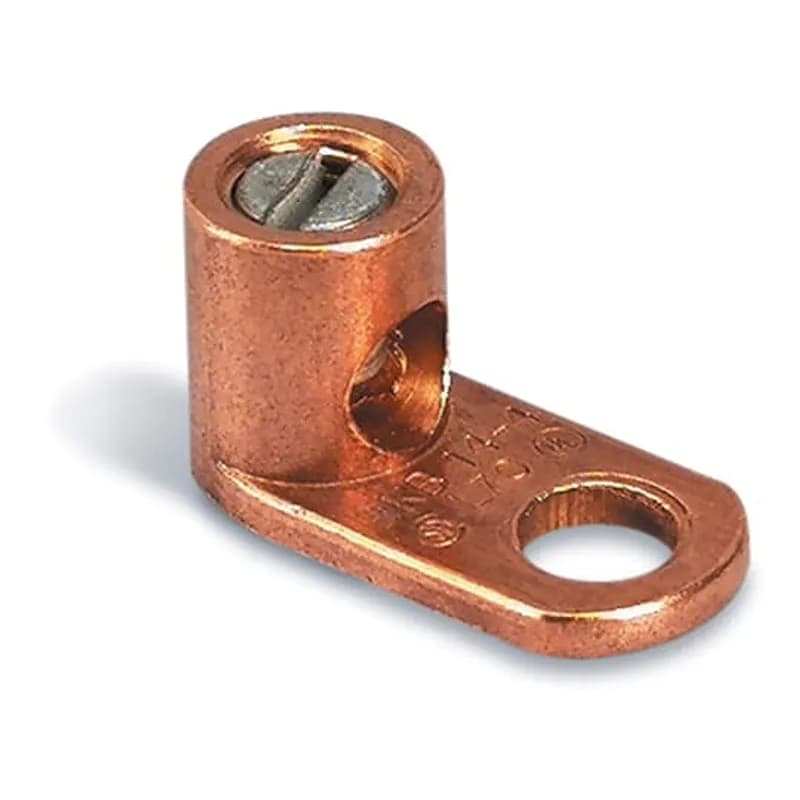

ABB - Installation Products L70-B2-5 - Type L,copper single conductor,one hole mount,for conductor range 14 Sol - 4 Str.

ABB Installation Products L70-B2-5 Type L,copper single conductor,one hole mount,for conductor range 14 Sol - 4 Str.

UPC: 783786070411

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB L70-B2-5 is a Type L single conductor lug, manufactured by ABB - Installation Products. This lug is specifically designed for terminating copper conductors, offering a reliable connection point for electrical systems. It features a one-hole mount configuration, ensuring secure attachment to busbars, equipment, or other mounting surfaces. The conductor range supported by the L70-B2-5 is from 14 AWG solid (Sol) to 4 AWG stranded (Str). This range makes it suitable for a variety of electrical wiring applications where single conductors need to be connected. The material is copper, known for its excellent conductivity and corrosion resistance, crucial for maintaining low resistance and long-term electrical integrity. The UNSPSC code for this product is 39121409, categorizing it under electrical connectors and terminals. This lug is a fundamental component for building and maintaining electrical infrastructure, providing a direct and secure interface for power distribution and equipment connections. Its straightforward design emphasizes functionality and dependability in electrical installations. The SKU for this specific model is L70-B2-5, facilitating easy identification and procurement within the ABB - Installation Products catalog. Ensure compatibility with your specific conductor size and application requirements before installation.
  • ABB - Installation Products Type L single conductor lug
  • Constructed from copper for superior conductivity
  • One-hole mount for secure installation
  • Accommodates conductor range: 14 AWG Solid to 4 AWG Stranded
  • Ideal for electrical termination and power distribution

Specifications

Housing Material
Copper
Mounting
Screw
Number Of Conductors
1
Type
Type L Copper Single Conductor
Wire Size
14-4 AWG
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.0700 L
Package Weight (Metric)
0.0320 kg
