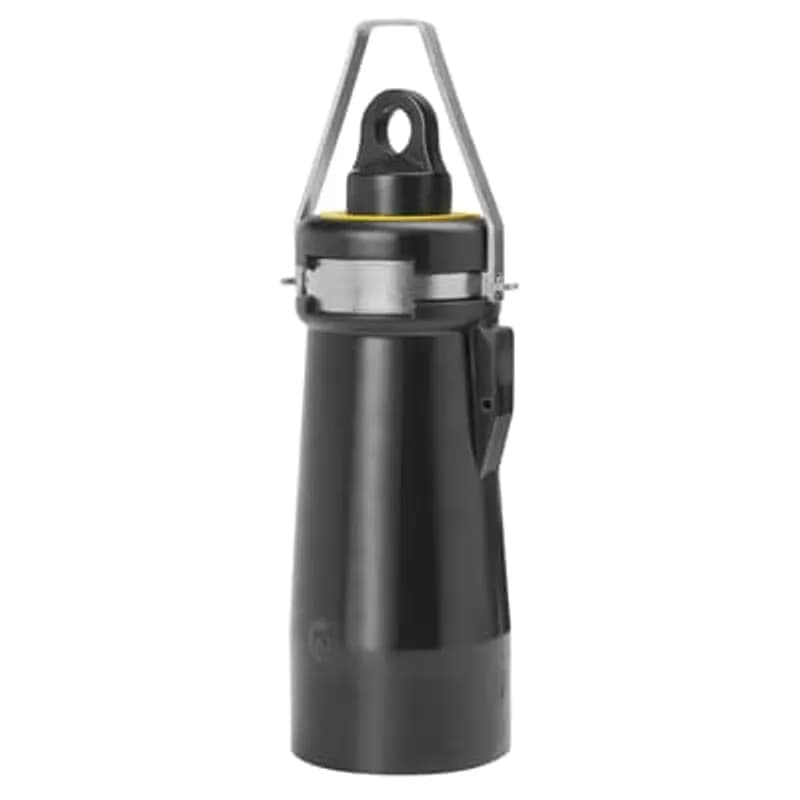

ABB - Installation Products K676BGADDR - 15/25kV, 600 Amps, Insulating Cap for Grounding Device with 1 inch (25.4mm) Ball. Mates with K671BGAD Grounding Accessory Device. Length Counting Bail 10 inch, Widest Diameter 3.46 inch.

ABB Installation Products K676BGADDR 15/25kV, 600 Amps, Insulating Cap for Grounding Device with 1 inch (25.4mm) Ball. Mates…

UPC: 075114144520


Documents & Media
BrochureInstallation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB K676BGADDR is a 15/25kV, 600 Amp insulating cap engineered for medium-voltage grounding applications as part of ABB Installation Products' Elastimold® series. Designed to mate with the K671BGAD Grounding Accessory Device, this cap provides critical insulation and safety during grounding operations in electrical distribution systems. The cap features a 1-inch (25.4mm) ball diameter, a 10-inch length-counting bail, and a maximum diameter of 3.46 inches, ensuring comprehensive coverage for grounding points. Rated for continuous operation at 600 Amps and capable of withstanding momentary fault currents up to 25kA for 10 cycles, the K676BGADDR delivers reliable performance in medium-voltage environments. It meets ANSI/IEEE Standard 386-2006, with voltage ratings of 8.3kV phase-to-ground and 14.4kV phase-to-phase for 15kV class systems, and 16.2kV phase-to-ground and 28kV phase-to-phase for 25kV class systems. The cap includes a capacitive test point for verifying voltage presence before grounding operations, enhancing safety during maintenance. Key applications include utility substations, industrial power distribution, and any scenario requiring safe and reliable grounding. Its robust construction and precise dimensions ensure compatibility with the K671BGAD Grounding Device, streamlining installation and maintenance processes. The 600 Amp rating and 25kA momentary fault current capacity contribute to the overall resilience of electrical infrastructure, while the 15/25kV voltage rating supports a broad spectrum of medium-voltage applications. The cap's design prioritizes personnel safety by preventing unintended current flow during fault conditions.
  • 15/25kV voltage rating for medium-voltage applications
  • 600 Amp continuous current rating with 25kA momentary fault capacity
  • 1-inch (25.4mm) ball diameter and 10-inch length-counting bail
  • Capacitive test point for voltage verification before grounding
  • Meets ANSI/IEEE Standard 386-2006 with 8.3kV/14.4kV (15kV) and 16.2kV/28kV (25kV) ratings

Specifications

Amperage Rating
600 A
Application
15/25 kV, 600 Amps
Conductor Material
Copper , EPDM Rubber
Connection
Push-In
Current Rating
600 A
Insulation
EPDM Rubber
Length
9.15 in
Material
Insulating cap (Elastimold® series)
Series
Elastimold®
Size
1 inch (25.4mm) ball, 10 inch length-counting bail, 3.46 inch widest diameter
Special Features
Fits 1 inch Ball
Standard
ANSI/IEEE Standard 386
Type
Grounding Device Insulating Cap
Voltage Rating
15/25 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
15-25kV, 600 Amp Grounding Device Cap without Test Point, fits 1 inch Ball

K675BGADDR

15-25kV, 600 Amp Grounding Device Cap without Test Point, fits 1 inch Ball
Intersystem grounding and bonding bridge for wall mount applications. Accomodates #6 to #2 Ground Electrode Conductors and #14 to #4 bonding conductors (4 each). Includes snap in place plastic cover.

IGB-WM

Intersystem grounding and bonding bridge for wall mount applications. Accomodates #6 to #2 Ground Electrode Conductors and #14 to #4 bonding conductors (4 each). Includes snap in place plastic cover.
Heavy-Duty C-Taps, Run 2/2 Tap 4/8, Polished, Copper

DGT1

Heavy-Duty C-Taps, Run 2/2 Tap 4/8, Polished, Copper
1/4" x 2" x 12" Grounding Busbar.

GB2D0008TPI-1

1/4" x 2" x 12" Grounding Busbar.
15/25kV, 600 Amp Series Grounding Device with 1 inch diameter Ball - Hot Line Clamp Grounding Bus. Conforms to IEEE Standard 386. Mates with K676BGADDR insulated Receptacle. Use 1 inch Hex for Assembly.

K671BGAD

15/25kV, 600 Amp Series Grounding Device with 1 inch diameter Ball - Hot Line Clamp Grounding Bus. Conforms to IEEE Standard 386. Mates with K676BGADDR insulated Receptacle. Use 1 inch Hex for Assembly.
U-Bolt Copper Ground Clamp, Stainless Steel U-Bolt, Wire Range 2/0 - 250, Rod Size 2 to 2-3/8 Inches, IPS Pipe Size Max 2 Inches, Length 4-7/16 Inches, Width 3-11/16 Inches, Depth 1-9/16 Inches, Tin Plated

GUV2025TP

U-Bolt Copper Ground Clamp, Stainless Steel U-Bolt, Wire Range 2/0 - 250, Rod Size 2 to 2-3/8 Inches, IPS Pipe Size Max 2 Inches, Length 4-7/16 Inches, Width 3-11/16 Inches, Depth 1-9/16 Inches, Tin Plated
Waterpipe Malleable Iron Ground Clamp for Wire Range Six to Two, Fits Steel Galvanized Water Pipe Size Six. IPS 6 inch. Width 8-1/16 inch, Inside U-Bolt Diameter 6.688 inch, IPS 6 inch, U-Bolt Size 3/8 inch.

6-TB

Waterpipe Malleable Iron Ground Clamp for Wire Range Six to Two, Fits Steel Galvanized Water Pipe Size Six. IPS 6 inch. Width 8-1/16 inch, Inside U-Bolt Diameter 6.688 inch, IPS 6 inch, U-Bolt Size 3/8 inch.
Waterpipe Malleable Iron Ground Clamp for Wire Range 6 - 2, Steel Galvanized Water Pipe Size 2-1/2 inch, 3 inch or 3-1/2 inch. U-Bolt Size 3/8 inch. Width 5-1/2 inch, Inside U-Bolt Diameter 4.062 inch.

4-TB

Waterpipe Malleable Iron Ground Clamp for Wire Range 6 - 2, Steel Galvanized Water Pipe Size 2-1/2 inch, 3 inch or 3-1/2 inch. U-Bolt Size 3/8 inch. Width 5-1/2 inch, Inside U-Bolt Diameter 4.062 inch.

Frequently Asked Questions

What types of ground clamps are compatible with the GAD?

The GAD is available with straight or ball receptacles for ground clamp flexibility. The BGAD and BGADDR series are specifically designed for ball-stud ground connections.

What are the available voltage classes for the GAD?

The Elastimold GAD is available in 15, 25, and 35 kV system classes.

What type of elbow connector is compatible with the GAD?

The Elastimold GAD easily installs in the rear interface of a 600 A series elbow connector (T-body).

What fault current can the GAD withstand?

The Elastimold GAD is rated for a short circuit withstand up to 25 kA. It provides a direct 600 A or 900 A ground connection.

What is the Elastimold GAD used for?

The Elastimold grounding-aid device (GAD) provides a permanent, reliable, direct 600 A or 900 A, 25 kA rated ground connection in underground systems when fault currents exceed 10 kA.

What types of ground clamps are compatible with the GAD?

The GAD is available with straight or ball receptacles for ground clamp flexibility. The BGAD and BGADDR series are specifically designed for ball-stud ground connections.

What are the available voltage classes for the GAD?

The Elastimold GAD is available in 15, 25, and 35 kV system classes.

What type of elbow connector is compatible with the GAD?

The Elastimold GAD easily installs in the rear interface of a 600 A series elbow connector (T-body).

What fault current can the GAD withstand?

The Elastimold GAD is rated for a short circuit withstand up to 25 kA. It provides a direct 600 A or 900 A ground connection.

What is the Elastimold GAD used for?

The Elastimold grounding-aid device (GAD) provides a permanent, reliable, direct 600 A or 900 A, 25 kA rated ground connection in underground systems when fault currents exceed 10 kA.

How to Install the K671GAD Grounding Device and K676GADDR Insulated Cap

This guide provides step-by-step instructions for the safe installation of the K671GAD Deadbreak Grounding Device and the K676GADDR Insulated Cap with Test Point. Ensure all high-voltage apparatus are de-energized before proceeding.

Estimated time: 45m

Tools needed:

600ATM Assembly Tool, Torque Wrench, Hotstick (2 required)

Supplies needed:

K671GAD Grounding Device, K676GADDR Insulating Cap, Lubricant (supplied with product), No. 14 AWG (2.55mm) Copper Wire

  1. De-energize Apparatus and Prepare Elbow

    DANGER: Ensure all apparatus are completely de-energized during installation or removal of parts. Failure to follow this instruction will result in serious or fatal injury. Verify that the 600Amp elbow is correctly installed onto the apparatus bushing according to its specific instructions. Do not install any insulating plug or cap onto the elbow at this stage.

  2. Install the K671GAD Grounding Connector

    Clean and lubricate the K671GAD Grounding Connector interface and the 600Amp elbow interface using only the supplied lubricant; do not substitute. Insert the K671GAD Grounding Connector into the 600Amp elbow and rotate it clockwise to engage the stud. Insert the 600ATM assembly tool into the K671GAD, and using a torque wrench, continue rotating clockwise. When the K671GAD stops rotating, tighten it to 55-60 foot-pounds torque. Remove the 600ATM tool.

  3. Connect the K671GAD to System Ground

    Take a separate No. 14 AWG (2.55mm) copper wire. Insert one end of the copper wire through the grounding eye on the K671GAD Grounding Connector and twist it tightly, taking care not to damage the eye. Connect the free end of this grounding wire securely to the system ground.

  4. Prepare for K676GADDR Insulating Cap Installation

    Take a separate No. 14 AWG (2.55mm) copper wire. Insert one end through the grounding eye of the K676GADDR insulated cap, make a small loop, and twist tightly, taking care not to damage the grounding eye. Connect the free end of this grounding wire to the system ground. The wire length should be equivalent to the distance from the grounding point to the grounding eye of the insulated cap plus enough to wrap around the insulated cap approximately 10 times (90 inches) during assembly. Clean and lubricate the K676GADDR insulating cap and the K671GAD interface with the supplied lubricant; do not substitute.

  5. Install the K676GADDR Insulating Cap

    Attach the first hotstick tool to the insulated cap's assembly/disassembly bail. Push the insulated cap receptacle onto the K671GAD bushing interface until it stops. With a second hotstick, engage the grounding wire (prepared in Step 4) and establish slight tension, wrapping it loosely around the center of the insulated cap. While pushing against the bushing interface with the first hotstick, rotate the cap clockwise until the threads between the bushing and the cap engage. Discontinue pushing against the bushing interface and continue turning until resistance is felt. DO NOT OVERTIGHTEN; the maximum torque is 15 ft-lb. Remove the second hotstick.
