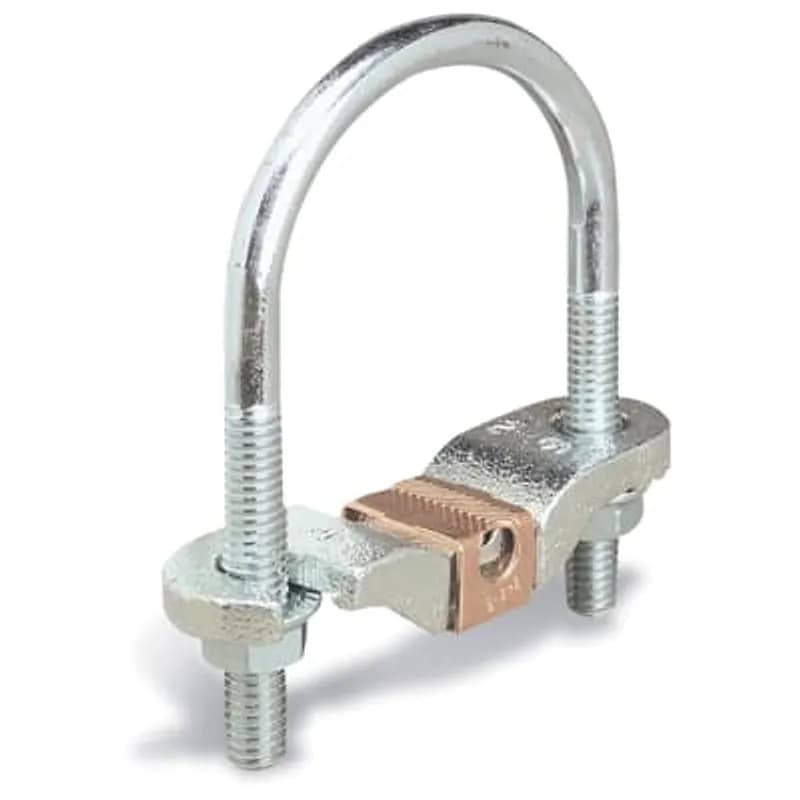

ABB - Installation Products 4-TB - Waterpipe Malleable Iron Ground Clamp for Wire Range 6 - 2, Steel Galvanized Water Pipe Size 2-1/2 inch, 3 inch or 3-1/2 inch. U-Bolt Size 3/8 inch. Width 5-1/2 inch, Inside U-Bolt Diameter 4.062 inch.

ABB Installation Products 4-TB Waterpipe Malleable Iron Ground Clamp for Wire Range 6 - 2, Steel Galvanized Water Pipe…

UPC: 075114425995

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 2

Multiplier: 2

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 4-TB Waterpipe Malleable Iron Ground Clamp (SKU: 4-TB) is engineered for reliable grounding connections to steel water pipes. Constructed from durable malleable iron, this clamp is designed to accommodate steel water pipe sizes ranging from 2-1/2 inches to 3-1/2 inches in diameter. It securely fastens grounding conductors within the #6 to #2 AWG wire range. The clamp features a galvanized steel finish for enhanced corrosion resistance, making it suitable for outdoor and industrial applications. The U-bolt size is 3/8 inch, and the clamp width measures 5-1/2 inches, with an inside U-bolt diameter of 4.062 inches, ensuring a robust mechanical connection. This clamp is ideal for grounding metallic water distribution systems, fire protection piping, and HVAC installations where a secure electrical path is critical. The malleable iron body provides high tensile strength, while the galvanized coating protects against rust and oxidation in challenging environments. Installation is straightforward, requiring only basic tools to position the clamp around the pipe and tighten the U-bolt. The ABB 4-TB meets industry standards for grounding hardware and is a dependable choice for commercial and residential applications requiring consistent electrical continuity. This product is part of ABB's Installation Products line, known for its quality and reliability in electrical infrastructure.
  • Malleable iron construction for strength and durability.
  • Galvanized steel finish provides corrosion resistance.
  • Accommodates steel water pipe sizes: 2-1/2", 3", or 3-1/2".
  • Designed for grounding conductors from #6 to #2 AWG.
  • U-bolt size: 3/8 inch; Clamp width: 5-1/2 inch.

Specifications

Conductor Material
Iron
Conductor Size
#6-#2
Insulation
None
Material
Malleable Iron
Size
2-1/2 inch, 3 inch or 3-1/2 inch
Standard
UL E3060
Type
Ground Clamp
Package Dimensions (L x W x H)
8 IN x 5 IN x 4 IN
Package Dimensions (L x W x H)
20.32 cm x 12.7 cm x 10.16 cm
Package Weight (Imperial)
0.8400 L
Package Weight (Metric)
0.3810 kg
