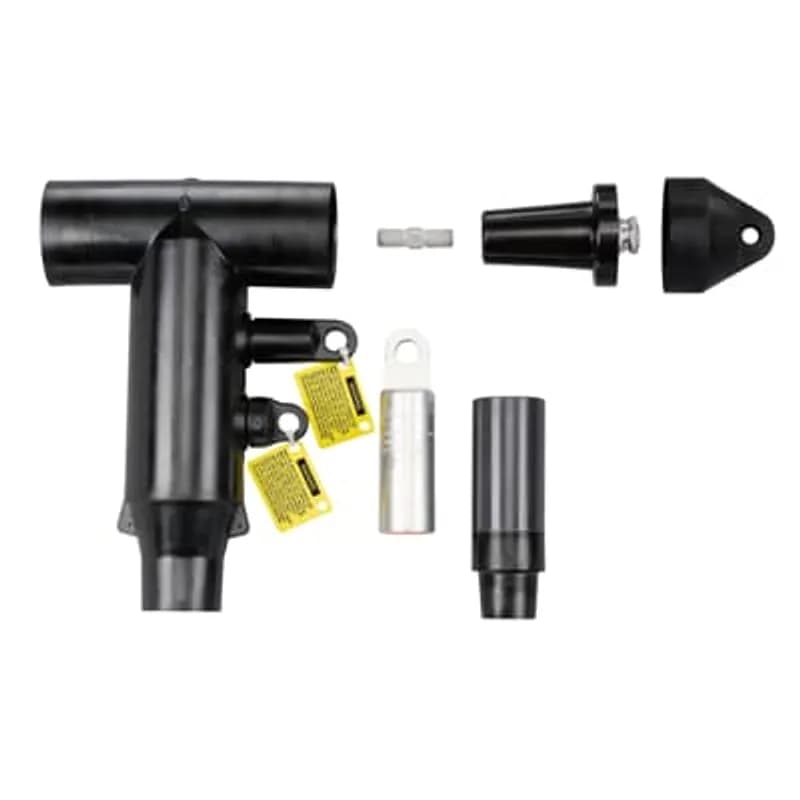

ABB - Installation Products K656DLR-N0410-S - 600 Amp, 15/25kV, 600 Series Deadbreak Direct Test Elbow with Test Point, (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Conductor Size kcmil Compressed Stranded 1000. Cold Shrinkable Jacket Seal.

ABB Installation Products K656DLR-N0410-S 600 Amp, 15/25kV, 600 Series Deadbreak Direct Test Elbow with Test Point, (with…

UPC: 075114402637


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB K656DLR-N0410-S is a 600 Amp, 15/25kV 600 Series Deadbreak Direct Test Elbow designed for reliable electrical connections in demanding industrial applications. This elbow connector features a direct test capability, allowing for efficient and safe testing without disconnecting the primary circuit. It is engineered to accommodate cable insulation diameters ranging from 1.515 inches to 1.780 inches, making it suitable for a variety of medium-voltage cable sizes. The K656DLR-N0410-S is constructed with an aluminum compression lug for secure conductor termination, supporting conductor sizes up to 1000 kcmil compressed stranded aluminum. The cold shrinkable jacket seal ensures a robust and environmentally resistant connection, protecting against moisture and contaminants. This direct test elbow is a critical component for substations, power distribution systems, and industrial facilities requiring dependable and accessible medium-voltage termination points. The 600 Series designation signifies its compatibility within ABB's established product ecosystem. The inclusion of an insulated plug, cap, stud, and cable adapter provides a complete termination solution, simplifying installation and ensuring proper sealing. The K656DLR-N0410-S from ABB Installation Products offers a high-current, high-voltage solution for critical power infrastructure, emphasizing safety, performance, and ease of use in medium-voltage applications.
  • 600 Amp current rating
  • 15/25 kV voltage rating
  • Direct test elbow with test point
  • Accommodates 1.515" to 1.780" cable insulation diameter
  • Aluminum compression lug for 1000 kcmil stranded conductor

Specifications

Amperage Rating
600 A
Application
15/25kV, 600 Amps
Color
Black
Conductor Range
1000 kcmil
Connection
Compression
Environmental Conditions
All Weather Conditions, Fully Submersible
Insulation
True
Length
13 in
Length
330.2 mm
Material
Housing - EPDM-Rubber
Special Features
Cold Shrinkable jacket Seal. Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators. Direct conductor test point equipped elbow
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Deadbreak Direct Test Elbow with Test Point
Voltage Rating
15 to 25 kV
Width
10.36 in
Width
263.144 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
15-25kV 600 Series Deadbreak Separable Wye Joint Package (3-Way) with Test Point, with 3 X ( Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000. )

K656CYP0410P0410P041

15-25kV 600 Series Deadbreak Separable Wye Joint Package (3-Way) with Test Point, with 3 X ( Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000. )
15kV, 600 Amps, Combo T Elbow with Bus Stud, Cable Adapter and Lug. Cable Insulation Diameter 1.515-1.780 inches, Tin Plated Aluminum ShearBolt Lug, Conductor Size 750 to 1250 kcmil Stranded/Compressed and Solid/Compact. Cold Shrinkable Jacket Seal.

656CETP-NAC04-DRG-S

15kV, 600 Amps, Combo T Elbow with Bus Stud, Cable Adapter and Lug. Cable Insulation Diameter 1.515-1.780 inches, Tin Plated Aluminum ShearBolt Lug, Conductor Size 750 to 1250 kcmil Stranded/Compressed and Solid/Compact. Cold Shrinkable Jacket Seal.
25kV, 600 Amp, Deadbreak, Elbow with Test Point, (includes Insulated Plug, Cap, Stud, Lug and Cable Adapter), No Sealing Kit, Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000. Any Customer Specific Modifications CS871 - CSA Die Compatibility.

K656LR-N0410-CS871

25kV, 600 Amp, Deadbreak, Elbow with Test Point, (includes Insulated Plug, Cap, Stud, Lug and Cable Adapter), No Sealing Kit, Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000. Any Customer Specific Modifications CS871 - CSA Die Compatibility.
15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Conductor Size Compressed/Stranded 500, No Sealing Kit

K656LR-N0330

15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Conductor Size Compressed/Stranded 500, No Sealing Kit
15/25kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Conductor Size AWG or kcmil, Compressed Stranded 900 /Compacted Solid 1000 /mmSquared Compact 500. Any Customer Specific Modifications - CS471 - CSA Die Compatibility.

K656LRN0400-CS871

15/25kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Conductor Size AWG or kcmil, Compressed Stranded 900 /Compacted Solid 1000 /mmSquared Compact 500. Any Customer Specific Modifications - CS471 - CSA Die Compatibility.
15-25kV 600 Series Deadbreak Separable Straight Joint Package (2-Way) with Test Point. Aluminum Compression Lug. Cable Insulation Diameter 1.370 inch to 1.630 inch. Conductor Size Compressed Stranded 700/750 kcmil or Compacted Solid 900 kcmil. Cold Shrinkable Jacket Seal. Also includes Spiking Aid Appendage and Insulated Cap.

K656ISL-M0380-S

15-25kV 600 Series Deadbreak Separable Straight Joint Package (2-Way) with Test Point. Aluminum Compression Lug. Cable Insulation Diameter 1.370 inch to 1.630 inch. Conductor Size Compressed Stranded 700/750 kcmil or Compacted Solid 900 kcmil. Cold Shrinkable Jacket Seal. Also includes Spiking Aid Appendage and Insulated Cap.
600 Amp Separable Cable Joints, Straight Receptacle, 15/25KV, Dead Break, Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 350 or Solid 400 or mmSquared 177

K655YSR-H0300

600 Amp Separable Cable Joints, Straight Receptacle, 15/25KV, Dead Break, Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 350 or Solid 400 or mmSquared 177
600 Amp, 15/25kV, Separable H Joint Kit, 4-Way with Test Point. Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #1 or Compacted Solid 1/0.

K656CH-G0230

600 Amp, 15/25kV, Separable H Joint Kit, 4-Way with Test Point. Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #1 or Compacted Solid 1/0.

Frequently Asked Questions

What is the voltage rating of this deadbreak elbow?

The ABB K656DLR-N0410-S has a voltage rating of 15/25 kV.

What is the maximum conductor size this elbow can accommodate?

This elbow can accommodate a compressed stranded aluminum conductor size of 1000 kcmil.

What is the cable insulation diameter range for this elbow?

The cable insulation diameter range for this elbow is 1.515 inch to 1.780 inch.

What type of lug material is used in this ABB elbow?

This ABB elbow uses an aluminum compression lug.

What is the current rating of the K656DLR-N0410-S?

The current rating for the K656DLR-N0410-S is 600 Amps.

How to Install K656/K676DLR Direct Test Elbow Connectors

This guide provides step-by-step instructions for the safe and proper installation of K656/K676DLR Direct Test Elbow Connectors, designed for fully shielded, submersible deadfront cable connections to high voltage apparatus, including a port for direct voltage measurement.

Estimated time: 1h 30m

Tools needed:

Crimping tool, Wire brush (for aluminum conductors), Torque wrench, Wire strippers

Supplies needed:

Elbow connector, Cable adapter, Compression lug, Lubricant, Threaded stud (if needed), Vinyl plastic tape (if applicable), Tape retainer (if applicable), Tape marker (if applicable), Grounding wire (No. 14 AWG copper or equivalent), Grounding connector, Insulating plug (if used)

  1. Prepare for Installation and Position Cable

    Check package contents and component fit. DANGER: Ensure all apparatus is de-energized before starting. Position the cable with enough slack for elbow removal and unwind concentric neutral wires if applicable. Cut the cable 1 3/4” (45mm) from the centerline of the mating product. Clean the outer surface of the cable for a distance of 24” (610mm).

  2. Prepare Cable and Install Cable Adapter

    Remove the outer jacket and prepare the shield (e.g., fold back shield wires, remove tape shield, or remove semi-con shield) according to your cable type and specified dimensions (e.g., 12 3/4” for outer jacket, 10 3/4” for tape shields, 9 3/4” for fabric/semi-con shields). Refer to specific instructions for UNISHIELD or lead sheath cables. Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4” (6mm) back. Thoroughly clean and lubricate the cable insulation, working towards the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker.

  3. Prepare Conductor and Install Compression Lug

    Remove protruding cable insulation, cutting it even with the end of the cable adapter. Ensure the exposed conductor length is between 4 3/8” to 4 11/16” (111mm to 119mm); otherwise, redo assembly. For aluminum conductors, wire brush the conductor immediately before insertion. Fully insert the conductor into the compression lug. Measure the “Check Dimension” before crimping (must be less than 6 1/2” / 165mm). Crimp the compression lug according to its instructions. Wipe off any excess inhibitor. Verify the distance from the lug end to the cable adapter is 6 1/2” to 7 1/4” (165mm to 184mm) after crimping; otherwise, redo assembly.

  4. Install Elbow and Connect to Mating Product

    Lubricate the cable adapter and the inside of the elbow cable entrance. Install the elbow onto the cable adapter until it cannot advance further, ensuring the cable adapter remains flush with the tape marker. Remove the tape marker. DANGER: Do not connect or disconnect mating products while energized, and do not energize while disconnected. Remove protective caps from the elbow and the mating part. If the mating part lacks a stud, hand tighten the supplied threaded stud into it. Clean and lubricate both the elbow and the mating part. Push the elbow onto the mating part, aligning the compression lug hole with the stud.

  5. Complete Connections and Grounding

    Clean and lubricate the mating part for the opposite end of the elbow (if applicable). Insert the mating part into the elbow, engage threads, and hand tighten. Torque the mating part according to its specific instructions. If an insulating plug is used as a mating part, clean and lubricate the inner surface of the voltage detection cap, then push it onto the elbow until it snaps into place. Insert a No. 14 AWG copper (or equivalent) grounding wire through the grounding eye, twist to form a small loop, and connect it to ground using a suitable connector. Ensure the cable shield is grounded. Waterproof the cable jacket to prevent moisture ingress.
