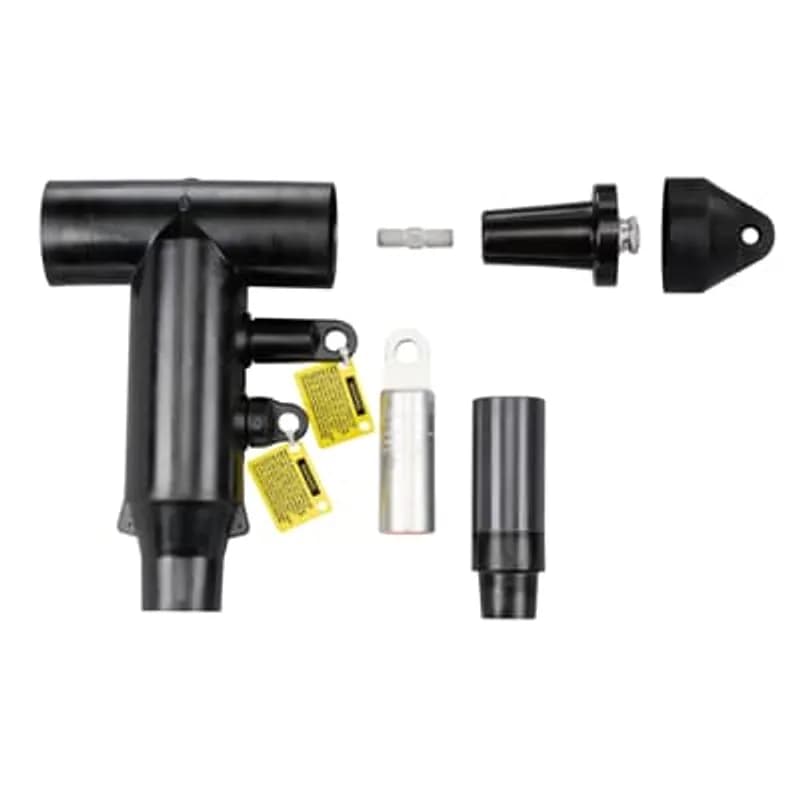

ABB Installation Products K656DLR-H0270 600 Amp, 15/25kV, 600 Series Deadbreak Direct Test Elbow with Test Point, (with…
UPC: 783786032846
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 600 Amp, 15/25kV deadbreak direct test elbow with integrated test point
- Compatible with 4/0 AWG compressed stranded or 250 kcmil compacted solid conductors
- Cable insulation diameter range: 0.850 inch to 1.050 inch
- Fully shielded, fully submersible molded rubber housing with 100% peroxide-cured EPDM materials
- Meets ANSI/IEEE Standard 386 with 600 Amp continuous and 25kA momentary ratings
Specifications
Amperage Rating | 600 A |
Application | 15/25kV, 600 Amps |
Color | Black |
Conductor Range | 4/0 STR/COMPR AWG , 250 kcmil |
Connection | Compression |
Connection Type | Compression Lug |
Current Rating | 600 A |
Environmental Conditions | All Weather Conditions, Fully Submersible |
Insulation | True |
Length | 13 in |
Length | 330.2 mm |
Material | Aluminum |
Material | Housing - EPDM-Rubber |
Series | 600 Series |
Size | 0.850-1.050 inch (cable insulation diameter) |
Size | Cable Insulation Diameter 0.850 inch to 1.050 inch |
Special Features | Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators. Direct conductor test point equipped elbow |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Direct Test Elbow with Test Point |
Voltage Rating | 15 to 25 kV |
Voltage Rating | 15/25 kV |
Width | 10.36 in |
Width | 263.144 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
K656DLR-F0260
600 Amp, 15/25kV, 600 Series Deadbreak Direct Test Elbow with Test Point, (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 0.640 inch to 0.820 inch. Conductor Size AWG or kcmil, Compressed Stranded 3/0 /Compacted Solid 4/0 /mmSquared Compact 95.
K656DLR-L0320-SG3
600 Amp, 15/25kV, 600 Series Deadbreak Direct Test Elbow with Test Point, (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size kcmil Compressed Stranded 450 or Compacted Solid 500/550. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.
M655YSR-K0240
600 Amp, 35kV, Separable Cable Joint, Straight Receptacle. Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 1/0 or Compacted Solid 2/0.K675SR-M2420
900 Amp, 15/25kV, 600 Series Straight Receptacle with Cable Adapter, Lug and Retaining Ring, Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Compression Lug. Conductor Size kcmil Compacted Solid 1250.2674-35
Submersible Control Cabinet, 15kv, 4 Ways, Way1- MVS3 with Motor and VS, Way2- MVI3, Way3- MVI3, Way4- MVS3 with Motor and VS, Spanish Labels and Instructions, Submersible Control with Two Source Ways Supported with SEL751A Control A) 4-Way Submersible Control (Setup for V.S. and Motors on 2 Ways Only). B) 40AH Submersible Battery. C) Submersible Handheld. D) 19-pin Handheld Cable 30 Foot. Includes Submersible Control Assembly with Spanish label. Flat Washers, Elastic Stop Nut, NamePlates and Labels, Fittings, Connector Ring DHPE, Cable Clamps, #10-32 Screw with Ext. Tooth Lockwasher, #10-32 SS Elastic Stop Nut, Cap and Chain Assemblies, Phillips Pan Head Machine Screws, Elastic Stop Nuts, 30 Inch Submersible Wire Harness, Settings Format, 18 AWG Wires - Blue, Red, Black, White, Green and Brown. Female Terminal 16-14 AWG, Insulated Ring Terminal 1/4. Ferrules 18 AWG Single and Twin, 7 Foot Ethernet Cable.
M650SL
15-25 kV, 600 Amps, Sacrificial Limb, Spiking Aid Appendage. Replaceable Cap that Provides a Convenient Place to Spike the Bus to Assure that it is De-Energized. This also Assures that all Cables Connected to the Bus are De-Energized. Meets ANSI/IEEE Standard 386. 5.06 inches Long X 1.96 inch Diameter. Includes IS-1296 Instruction Sheet.
J4-2226-15-L
4 Point Junction, with three 200 Amp Bushing Well Interfaces and one 600 Amp Bushing interface, 15kV, Left Parking Stand.Frequently Asked Questions
What items are included in the K656DLR-W0X kit?
Each kit contains an elbow connector housing, copper compression lug, stud, insulated plug with cap, lubricant, cable adapter, and installation instructions.
Can the elbow be connected or disconnected while energized?
No, the elbow can only be easily connected or disconnected using standard hand tools and equipment in a de-energized state.
What is the continuous current rating of this connector?
The K656DLR-W0X Direct Test Elbow has a continuous current rating of 600 Amps for both 15kV and 28kV classes.
What is the maximum operating voltage for the 28kV class?
For the 28kV class, the maximum phase-to-ground operating voltage is 16.2kV, and phase-to-phase is 28kV.
What is the maximum operating voltage for the 15kV class?
For the 15kV class, the maximum phase-to-ground operating voltage is 8.3kV, and phase-to-phase is 14.4kV.
What is the primary application of this elbow connector?
The K656DLR-W0X is a 15/25kV, 600 Amp Class deadbreak elbow connector used for isolation, testing, and grounding with the Elastimold Direct Test System.
What items are included in the K656DLR-W0X kit?
Each kit contains an elbow connector housing, copper compression lug, stud, insulated plug with cap, lubricant, cable adapter, and installation instructions.
Can the elbow be connected or disconnected while energized?
No, the elbow can only be easily connected or disconnected using standard hand tools and equipment in a de-energized state.
What is the continuous current rating of this connector?
The K656DLR-W0X Direct Test Elbow has a continuous current rating of 600 Amps for both 15kV and 28kV classes.
What is the maximum operating voltage for the 28kV class?
For the 28kV class, the maximum phase-to-ground operating voltage is 16.2kV, and phase-to-phase is 28kV.
How to Install K656/K676DLR Direct Test Elbow Connectors
This guide provides step-by-step instructions for the safe and proper installation of K656/K676DLR and 656/676DLR Direct Test Elbow Connectors, including cable preparation, component assembly, and grounding procedures for 15kV and 25kV class systems.
Estimated time: 2h
Tools needed:
Wire strippers, Crimping tool, Wire brush (for aluminum conductors), High voltage insulated hot stick, Appropriate HV meters with T&B Elastimold series 200TC-1, 200TC-2, 200TC-4 or approved adapters, Vinyl plastic tape (if using flat metallic tape shield), Suitable connector for grounding wire, Torque wrench
Supplies needed:
Elbow connector (K656DLR or K676DLR), Cable Adapter, Compression Lug, Insulating Plug (if used), Lubricant (supplied with kit), Stud Prepack (supplied with kit), No. 14 AWG copper wire (or equivalent) for grounding, Tape marker, Tape retainer (if using fabric tape shield), Waterproofing material (for cable jacket, recommended)
- De-energize and Position Cable
Before starting, ensure all apparatus is de-energized. Position the cable in its final assembled location, allowing enough slack to remove elbows. If applicable, unwind concentric neutral wires. Cut the cable 1 3/4 inches (45mm) from the centerline of the mating product. DANGER: All apparatus must be de-energized during installation or removal. Failure to follow this instruction will result in serious or fatal injury.
- Prepare the Cable for Connection
Clean the outer surface of the cable for a distance of 24 inches (610mm) or up to the bent-back concentric neutral wires. Refer to specific instructions for your cable type (e.g., outer jacket, shield wires, metallic tape, fabric tape, corrugated shield, Unishield, lead sheath, or semi-con shield) to remove the outer jacket and shield to the specified dimensions. Do not cut or nick the cable insulation.
- Install Cable Adapter and Compression Lug
Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4 inch (6mm) back. Thoroughly clean and lubricate the cable insulation, working towards the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker. Remove protruding cable insulation, cutting it even with the end of the cable adapter, ensuring the exposed conductor is between 4 3/8 and 4 11/16 inches (111mm to 119mm). Fully insert the conductor into the compression lug (wire brush aluminum conductors immediately before insertion). Crimp the compression lug according to its supplied instructions, then wipe off any excess inhibitor. Verify the final lug-to-adapter distance is between 6 1/2 to 7 1/4 inches (165mm to 184mm).
- Install the Elbow Connector
Lubricate the cable adapter and the inside of the elbow cable entrance. Install the elbow onto the cable adapter until it cannot advance further. Ensure the cable adapter remains flush with the tape marker. Remove the tape marker.
- Connect Elbow to Mating Products
Remove protective caps from both the elbow and the mating part. If the mating part lacks a stud, hand tighten the supplied threaded stud into it. Clean and lubricate both the elbow and the mating part. Push the elbow onto the mating part, aligning the compression lug hole with the stud. For the opposite end, clean and lubricate the mating part, insert it into the elbow, engage threads, hand tighten, and then torque according to the mating part's instructions. If an insulating plug is used, clean and lubricate the voltage detection cap's inner surface, then place it on the elbow and push until it snaps into place. DO NOT CONNECT OR DISCONNECT MATING PRODUCTS WHILE ENERGIZED. DO NOT ENERGIZE WHILE DISCONNECTED.
- Ground the Cable Shield
Insert one end of a minimum No. 14 AWG copper wire through the grounding eye and twist to form a small loop, taking care not to damage the eye. Connect this wire to ground using a suitable connector. The cable shield must be grounded according to the instructions supplied with any grounding device, or via an alternate method if no device is used. It is recommended to waterproof the cable jacket at this point to prevent moisture ingress.
- Perform Direct Voltage Test (Optional)
If performing a direct voltage test, use only the appropriate direct voltage test port adapter and meter (e.g., 200TC-1, 200TC-2, 200TC-4 adapters with compatible meters). Read and understand the separate operating instructions for the specific test adapter and meter before proceeding. The cap on the direct access port should be installed at all other times. DANGER: Insertion of any object, other than the appropriate direct voltage test port adapter and meter, into the direct test port or in close proximity to it can result in electric shock which will cause serious or fatal injury.
