Overview

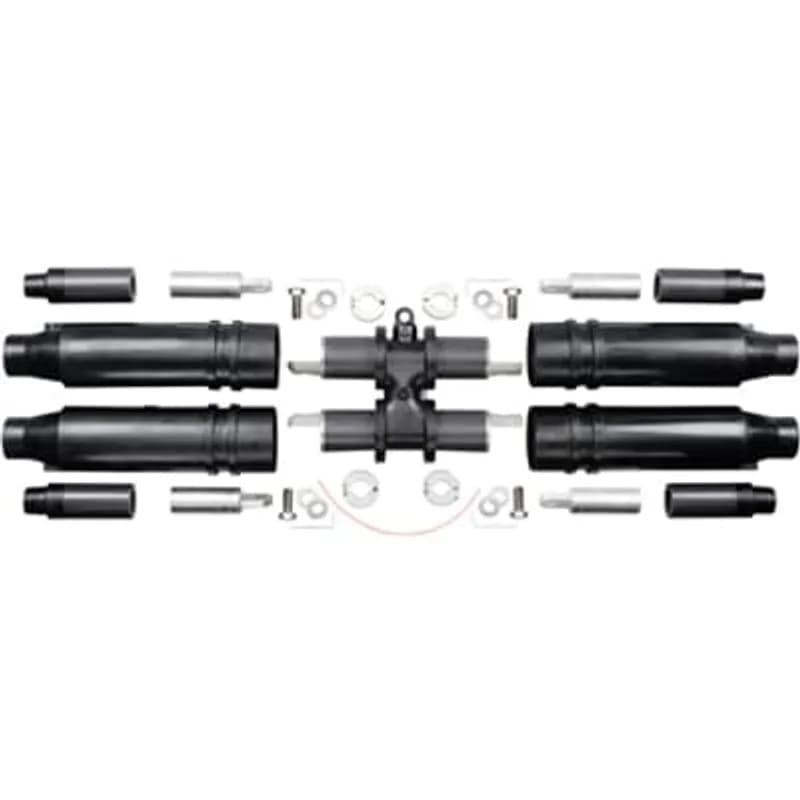

- Rated for 25kV applications with cold-shrinkable sealing technology
- Supports 750 kcmil (size M: 1.370–1.630 in) and 500 kcmil (size L: 1.180–1.465 in) aluminum conductors
- Includes aluminum lugs for low-resistance terminations and a copper rod for grounding
- Compact design reduces installation time and eliminates need for heat-shrink or tape
- Integrated crimp connector ensures secure mechanical and electrical connections
Specifications
Amperage Rating | 600 A |
Application | Compact Design is suitable for small vaults and manholes |
Color | Black |
Connection | Compression |
Connection Type | Joint Kit |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Length | 37.27 in |
Length | 946.658 mm |
Material | Housing - EPDM-Rubber |
Material | Aluminum, Copper, Cold-Shrinkable Seal |
Poles | 2-Way |
Size | Cable Insulation Diameters: M (1.370 to 1.630 inch), L (1.180 to 1.465 inch) |
Special Features | Fully Shielded, Fully Submersible, 100 Percent Peroxide Cured EPDM Molded Rubber. Includes Integral Capacitive Test Point. Reusable Components Reduce Inventory and other Costs |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Separable H-Joint Assembly |
Voltage Rating | 25kV |
Voltage Rating | 15 to 25 kV |
Width | 8.12 in |
Width | 206.248 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 30.0000 L |
Package Weight (Metric) | 13.6080 kg |
CI16-90-AT8PL
Hinged Connector Interface Fitting, Standard Profile Plug, 90 Degree Elbow with 360 Degree Swivel, 8-Way Ampseal Automotive Connector to Conduit, Conduit Size NC16/NW13, Operating Temperature -40 to 120 Degrees Celsius, RoHS Compliant, IP40 Rating, Very High UV Protection, Polyamide (Nylon), Black
VAG-022-00
Solenoid Valve Connectors, Field Wireable, 3 Pole, Form A 18mm, 24V, 10A, LED w/MOV, .5-NPT opening
T1505063000-000
Rectangular hoods and bases portfolio features base housing, cover, hood, or hood and base housing assembly with inserts connector product types. Products are designed for bottom, side, top, or top and side cable entry. Rectangular hoods and bases offer solutions with a variety of hood and base locking device types as well as connector mounting types.Frequently Asked Questions
What cable sizes are compatible with this kit?
The kit supports 750 kcmil conductors with size M insulation (1.370–1.630 in) and 500 kcmil conductors with size L insulation (1.180–1.465 in).
What voltage rating does this joint kit support?
The ABB K656CH-DP0593493 is rated for 25kV applications.
Does this kit include lugs for the conductors?
Yes, the kit includes aluminum lugs sized for 750 kcmil and 500 kcmil conductors.
What type of sealing technology is used?
The kit uses cold-shrinkable sealing technology for a watertight, durable seal without heat or flame.
Is a grounding component included?
Yes, the kit includes a copper rod for grounding purposes.
What connector type is provided in the kit?
The kit includes a crimp connector for secure mechanical and electrical connections.
Is this joint kit suitable for outdoor installations?
The cold-shrinkable seal and integrated components are designed for environmental protection, making it suitable for outdoor use.
