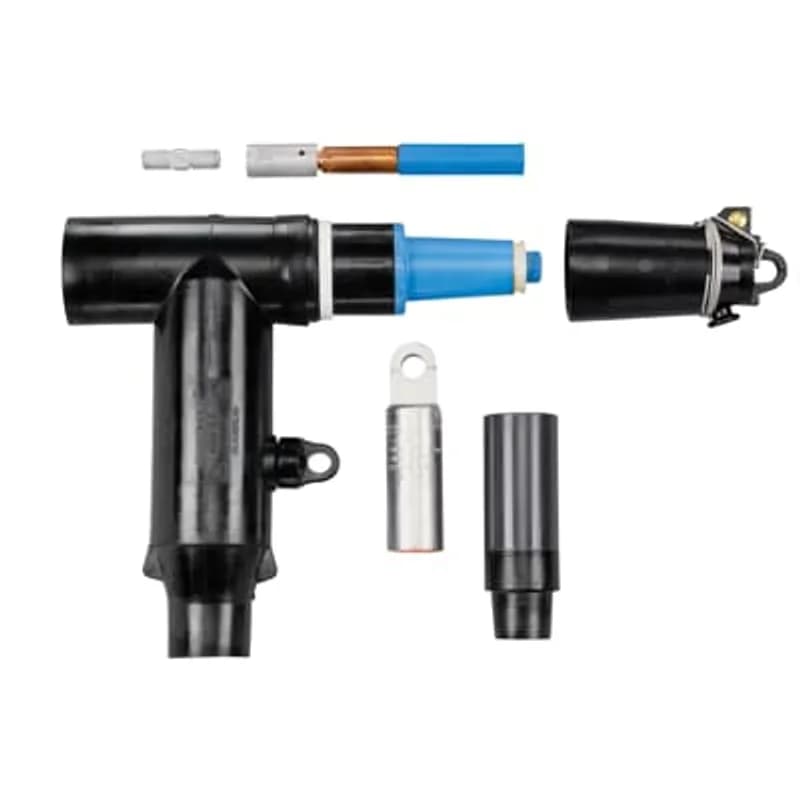

ABB - Installation Products K656CETP-P0410-DRG - 25kV, 600 Amp, Combo T Elbow Reducing Tap Plug with Test Point, includes Stud, Cable Adapter, Lug and Insulated Cap Kit, Cable Insulation Diameter 1.725-1.935 inches, Universal Aluminum Connector Type, Connector Size 1000 kcmil Stranded/Compressed. With Insulating Cap.

ABB Installation Products K656CETP-P0410-DRG 25kV, 600 Amp, Combo T Elbow Reducing Tap Plug with Test Point, includes Stud, Cable…

UPC: 075114406840


Documents & Media
BrochureInstallation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB K656CETP-P0410-DRG is a 25kV, 600 Ampere Combo T Elbow Reducing Tap Plug designed for high-voltage cable connections in medium-voltage power distribution systems. This universal aluminum connector is engineered to support 1000 kcmil stranded/compressed cable with insulation diameters ranging from 1.725 to 1.935 inches, ensuring compatibility with standard medium-voltage cable configurations. The kit includes a stud, cable adapter, lug, and insulated cap kit for a complete installation solution, meeting industry requirements for safety and performance. The test point feature enables safe voltage verification without disconnecting the cable, reducing downtime and enhancing operational efficiency. Rated for 25kV systems, this elbow tap plug is ideal for utility, industrial, and commercial power distribution applications where reliable, high-capacity tap connections are required. The universal design accommodates standard aluminum connectors, ensuring broad compatibility with common cable sizes in medium-voltage networks. The insulated cap provides additional protection against electrical hazards, while the reducing tap design allows for efficient branching of power lines without compromising system integrity.
  • 25kV rated for medium-voltage applications
  • 600 Amp continuous current capacity
  • Supports 1000 kcmil stranded/compressed aluminum cable
  • Includes test point for safe voltage verification
  • Universal aluminum connector with insulated cap kit

Specifications

Amperage Rating
600 A
Application
600 Amps, 25kV Connector
Color
Black
Conductor Range
1000 STR/COMPR kcmil
Connection
Compression
Environmental Conditions
All Weather Conditions
Insulation
True
Material
Housing - EPDM-Rubber
Special Features
Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
ComboT Elbow with Test Point
Voltage Rating
25 kV
Width
13.31 in
Width
338.074 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
25kV 600 Series Deadbreak Test and Ground Connector Kit, Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000. With Insulated Cap.

K655ETP-N0410-DRG

25kV 600 Series Deadbreak Test and Ground Connector Kit, Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000. With Insulated Cap.
35kV 200 Amp, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.850 inch to 1.050 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #2 or Solid #1.

376LR-H5220

35kV 200 Amp, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.850 inch to 1.050 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #2 or Solid #1.
600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size AWG Compressed Stranded #1 or Compacted Solid 1/0. Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.

K655LR-G0330-SG3

600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size AWG Compressed Stranded #1 or Compacted Solid 1/0. Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.
15/25kV, 600 Amp, Direct Test Elbow, DeadBreak, Cable Insulation 1.180-1.465 inches, Aluminum Compression Lug, Conductor Size 300 kcmil Stranded/Compressed or 350 kcmil Solid/Compact. Width 10.36 inch, Length 13 inch from bottom edge to Center of Bushing. Diameter 3.83 inch.

K655DLR-L0290

15/25kV, 600 Amp, Direct Test Elbow, DeadBreak, Cable Insulation 1.180-1.465 inches, Aluminum Compression Lug, Conductor Size 300 kcmil Stranded/Compressed or 350 kcmil Solid/Compact. Width 10.36 inch, Length 13 inch from bottom edge to Center of Bushing. Diameter 3.83 inch.
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size AWG or kcmil, Compressed Stranded 2/0 or Compacted Solid 3/0. Cold Shrinkable Seal with Copper Braid and Constant Force Spring. Width 12.28 inch, Length 13.93 inch from bottom edge to Center of Bushing. Diameter 3.83 inch.

756LR-G0250-SG3

35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size AWG or kcmil, Compressed Stranded 2/0 or Compacted Solid 3/0. Cold Shrinkable Seal with Copper Braid and Constant Force Spring. Width 12.28 inch, Length 13.93 inch from bottom edge to Center of Bushing. Diameter 3.83 inch.
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Direct Test Ports, Small Housing, Cable Insulation Diameter 0.805 inch - 1.060 inch / 20-27mm, Aluminum Conductor size 2 AWG Stranded Compressed, 1 AWG Solid/Compact.

168AFLR1-C0220

Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Direct Test Ports, Small Housing, Cable Insulation Diameter 0.805 inch - 1.060 inch / 20-27mm, Aluminum Conductor size 2 AWG Stranded Compressed, 1 AWG Solid/Compact.
600 Amp, 15/25 kV, Separable H Joint package 4-Way with Test Point, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size Compressed/Stranded 650 kcmil or Compacted/Solid 750/800 kcmil.

K656CH-L0360

600 Amp, 15/25 kV, Separable H Joint package 4-Way with Test Point, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size Compressed/Stranded 650 kcmil or Compacted/Solid 750/800 kcmil.
650 Link OP Kit. Includes Tool Case, 200 Amp, 15 kV LB Grounding Elbow, Test Rod, Assembly Tool, Reducing Tap Plug, Lubricant

650LINK-OK

650 Link OP Kit. Includes Tool Case, 200 Amp, 15 kV LB Grounding Elbow, Test Rod, Assembly Tool, Reducing Tap Plug, Lubricant

Frequently Asked Questions

What is the maximum operating voltage?

The maximum operating voltage is 25kV, suitable for medium-voltage applications.

Is this connector compatible with stranded aluminum cable?

Yes, it is designed for 1000 kcmil stranded/compressed aluminum cable.

What cable sizes does this connector support?

The connector supports 1000 kcmil stranded/compressed aluminum cable with insulation diameters between 1.725 and 1.935 inches.

Does this include a test point for voltage measurement?

Yes, the K656CETP-P0410-DRG includes a test point for safe voltage verification without disconnecting the cable.

What materials are used in this connector?

The connector is made of universal aluminum with an insulated cap kit for protection.

How to Install the K656CETP-P0410-DRG Deadbreak Elbow Connector

Instructions for installing and connecting the K656CETP-P0410-DRG deadbreak elbow connector to high voltage apparatus.

Estimated time: 45m

Tools needed:

Hotstick, Assembly tool (600AT or 600ATM), Wire brush, Sensing device for capacitive test points

Supplies needed:

Lubricant, Compression Lug, Cable Adapter, Vinyl plastic tape, Tape retainer, Tape marker, Grounding device (optional), Insulated cap, Bail (for 200A loadbreak taps)

  1. Prepare the Cable

    Position the cable in its final location with sufficient slack. For concentric neutral cable, unwind the wires. Cut the cable 1 3/4" (45mm) from the centerline of the mating product. Clean the outer surface of the cable for 24" (610mm) or up to the bent back concentric neutral wires. Follow specific instructions for removing the outer jacket, shield wires, and any metallic or fabric tape shields based on your cable type. Ensure dimensions are precise.

  2. Install Cable Adapter

    Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4" (6mm) back. Clean and lubricate the cable insulation, working towards the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker.

  3. Prepare Conductor and Install Compression Lug

    Cut the protruding cable insulation flush with the end of the cable adapter, ensuring the exposed conductor length is between 4 3/8" and 4 11/16" (111mm-119mm). For aluminum conductors, wire brush them immediately before inserting into the compression lug. Insert the conductor fully into the compression lug. Measure the 'Check Dimension' before crimping; it should be less than 6 1/2" (165mm). Crimp the lug according to its instructions. After crimping, the distance from the end of the lug to the cable adapter should be 6 1/2" to 7 1/4" (165mm-184mm). Wipe excess inhibitor from the lug and adapter.

  4. Install Elbow Connector

    Lubricate the cable adapter and the inside of the elbow cable entrance. Install the elbow onto the cable adapter until it cannot advance further, ensuring the cable adapter remains flush with the tape marker. Remove the tape marker.

  5. Connect to Mating Product

    Ensure the apparatus is de-energized. Remove protective caps from the elbow and the mating part. Clean and lubricate both the elbow and the mating part. Install the stud into the apparatus by hand until fully seated. For products dated September 30, 2013 or earlier, use the 600AT assembly tool to torque the contact assembly to 19-25 foot-pounds. For products dated October 1, 2013 or later, use the 600ATM assembly tool to tighten the contact assembly to 50-60 foot-pounds, not exceeding 60 foot-pounds.

  6. Ground the Cable Shield

    Connect a wire with adequate ampacity (at least No. 14 AWG Copper) through the grounding eye, forming a small loop. Connect this wire to ground using a suitable connector. The cable shield must be grounded according to the instructions of the grounding device used, or an alternate method if no device is used. Waterproofing the cable jacket is recommended.

  7. Install Tap Connector (if applicable)

    Clean and lubricate the entire loadbreak interface and the appropriate mating connector (DR(G), ESA, GLR, or LR). Install the selected connector to the tap plug interface following its specific instructions.

  8. Verify Seating

    Confirm that the assembly is complete by visually inspecting the colored interface sleeve. No portion of the sleeve should be visible from the side, indicating full seating.

  9. Perform Voltage Test (if applicable)

    Use a hotstick to remove the test point cap by peeling it off at an angle. Use a suitable sensing device designed for capacitive test points to determine if the circuit is energized. Treat the elbow as energized until a 'no voltage' indication is confirmed by other means. After testing, clean and lubricate the inside of the cap and replace it.
