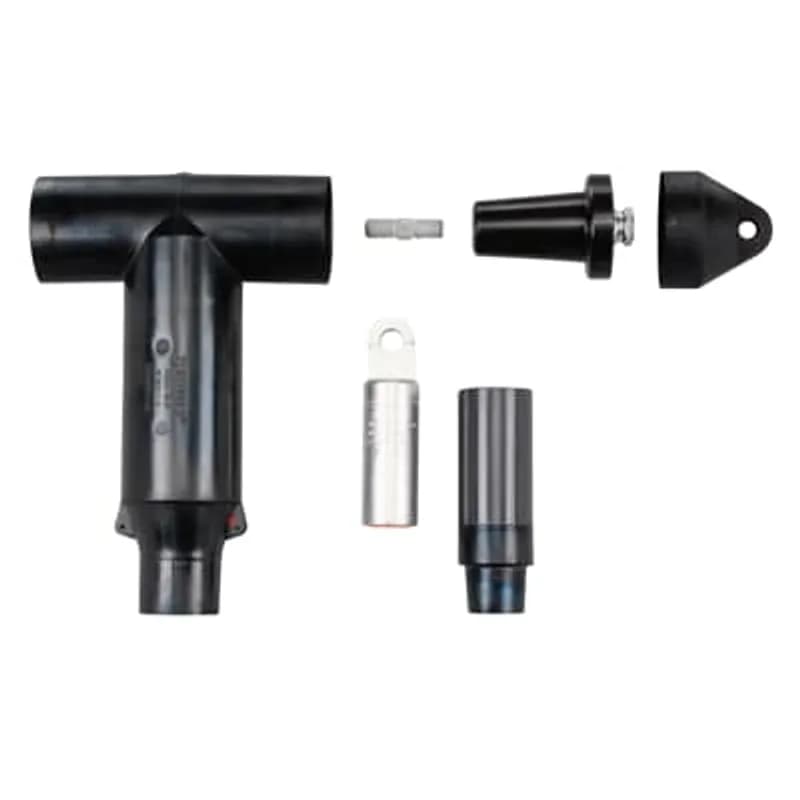

ABB Installation Products K655LR-J0240 15/25kV 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable…
UPC: 783786093786
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15/25kV voltage class with 900A continuous current rating
- Accommodates cable insulation diameters from 0.980 to 1.180 inches
- Supports compressed stranded AWG 1/0 or compacted solid AWG 2/0 conductors
- Fully shielded, submersible molded rubber housing for environmental protection
- Deadbreak design enables safe connection/disconnection under de-energized conditions
Specifications
Amperage Rating | 600 A |
Application | Designed to provide Fully Shielded, Dead-Front Submersible Cable Connections to High-Voltage Apparatus |
Color | Black |
Conductor Range | 1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG |
Environmental Conditions | Fully Submersible |
Insulation | True |
Length | 13 in |
Length | 330.2 mm |
Material | Aluminum |
Material | Housing - EPDM-Rubber |
Series | 600 Series |
Size | Cable Insulation Diameter 0.980 inch to 1.180 inch |
Special Features | Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Elbow Connector |
Voltage Rating | 15 to 25 kV |
Voltage Rating | 15/25 kV |
Width | 10.36 in |
Width | 263.144 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 6.4000 L |
Package Weight (Metric) | 2.9030 kg |
K656LR-J0240-S
15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size Compressed/Stranded 1/0 or Compact/Solid 2/0. Cold-Shrinkable Jacket Seal Included.K655LR-J-0300-S
600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. C Conductor Size kcmil Compressed/Stranded 350 or Compact/Solid 400 or mm2 Compact 185. Cold-Shrinkable Jacket Seal Included.K655LR-H2280
600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Copper Compression Lug. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size kcmil Compressed/Stranded 250 or Compact/Solid 300.K655LR-J0350
600 Series Elbow with insulated plug, cap, stud, lug and cable adapter, 15/25KV, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed/Stranded 600 or Compact/Solid 700.K655LR-P0380
15/25kV 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.725 inch to 1.935 inch. Conductor Size kcmil Compressed/Stranded 700/750 or Compact/Solid 900.K655LR-H0250
600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size AWG Compressed/Stranded 2/0 or Solid/Compact 3/0 or mm2 70.K656LR-G0270
15/25 KV, Elbow Connector with Test Point, 600 Amp, Dead Break, Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size AWG Compressed/Stranded 4/0 or Solid/Compact 250 or mm2 Compact 125.K656LR-J0310
Elbow Connector with Test Point, 600 Amp, Dead Break, 15/25 KV, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG Compressed/Stranded 400 or Solid 450 or mm2 Compact 240.Frequently Asked Questions
What is the maximum operating voltage for this elbow connector?
The elbow connector can be used through 28kV. For the 15kV voltage class, the max operating voltage is 8.3kV phase-to-ground. For the 28kV voltage class, it's 16.2kV phase-to-ground.
What conductor sizes can this elbow connector accommodate?
It can be used with conductor sizes ranging from #2 AWG to 1250 kcmil for both aluminum and copper conductors.
What is the insulation diameter range for compatible cables?
The compatible insulation diameters range from 0.640 inches to 1.935 inches.
What is the continuous current rating of the K655LR elbow connector?
The continuous current rating for this elbow connector is 600 Amps.
What is the momentary current withstand rating?
The momentary current withstand rating is 25kA Sym for 10 Cycles.
What is the impulse withstand rating (BIL) for the 28kV class?
For the 28kV voltage class, the impulse withstand rating (BIL) is 140kV.
What is the one-minute AC withstand voltage for the 15kV class?
For the 15kV voltage class, the one-minute AC withstand voltage is 34kV.
What is the corona extinction rating for the 28kV class?
The corona extinction rating for the 28kV voltage class is 21.5kV AC at 3pC sensitivity.
What standards does this elbow connector meet?
This elbow connector meets ANSI/IEEE Standard 386, Latest Revision.
What is recommended when using this on metallic tape shield or drain wire cable?
When used on metallic tape shield or drain wire cable, an ECS cable seal grounding device is recommended.
How to Install Elastimold 655/675LR and K655/K675LR Deadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe and proper installation of Elastimold 600-ampere and 900-ampere deadbreak elbow connectors on 15kV and 25kV class systems, including cable preparation, lug crimping, and final assembly.
Estimated time: 2h
Tools needed:
Wire strippers, Crimping tool, Wire brush, Torque wrench, Hotstick, Suitable voltage sensing device
Supplies needed:
Elastimold 655/675LR or K655/K675LR Elbow Connector kit, Cable, Tape marker, Grounding wire (No. 14 AWG Copper minimum), Suitable ground connector, Silicone lubricant, Waterproofing material
- De-energize Apparatus and Prepare Cable
DANGER: All apparatus must be de-energized during installation or removal of parts. Do not touch or move energized products. Inspect all package contents and components for damage, rating, and compatibility. Assemble the cable in its final position with enough slack. For concentric neutral cable, unwind the neutral wires. Cut the cable 1-3/4” (45mm) from the centerline of the mating product.
- Clean and Prepare Cable Insulation
Clean the outer surface of the cable for a distance of 24” (610mm) or up to the bent back concentric neutral wires. Remove the outer jacket (if applicable) and prepare the cable according to its type (e.g., non-jacketed, jacketed) as shown in the product diagrams. Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4” (6mm) back. Thoroughly clean and lubricate the cable insulation, working toward the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker.
- Prepare Conductor and Crimp Compression Lug
Remove the protruding cable insulation, cutting it even with the end of the cable adapter. Do not cut or nick the cable adapter or the conductor. Verify the exposed conductor length is between 4-1/4” – 4-9/16” (108mm-116mm); if not, redo the assembly. For copper conductors, fully insert the conductor into the compression lug. For aluminum conductors, wire brush the conductor and immediately fully insert it. Measure the “Check Dimension” before crimping; it must be less than 6-3/8”. Crimp the compression lug following the supplied instructions. Wipe all excess inhibitor. Verify the distance from the end of the compression lug to the cable adapter after crimping is between 6-3/8” to 7-1/8” (162mm-181mm); if not, redo the assembly.
- Install Elbow and Connect Mating Products
Lubricate the cable adapter and the inside of the elbow cable entrance. Install the elbow onto the cable adapter until it cannot advance further. Ensure the cable adapter is still flush with the tape marker; reposition if necessary. Remove the tape marker. DANGER: Do not connect or disconnect mating products while energized. Do not energize while disconnected. Remove protective caps from the elbow and the mating part. Hand tighten the threaded stud (if supplied) into the mating part. Clean and lubricate both the elbow and the mating part. Push the elbow onto the mating part, aligning the compression lug hole with the stud. Clean and lubricate the opposite mating part, insert it into the elbow, engage threads, hand tighten, and torque according to instructions. If an insulating plug is used, clean and lubricate the voltage detection cap and place it on the elbow until it snaps.
- Ground Cable Shield and Waterproof Jacket
Insert one end of a grounding wire (at least No. 14 AWG Copper) through the grounding eye and twist to make a small loop; do not damage the eye. Connect the wire to ground using a suitable connector. The cable shield must be grounded according to the instructions supplied with the grounding device, or via an alternate method if no device is used. It is recommended to waterproof the cable jacket at this point to prevent moisture from entering the cable. CAUTION: When constructing 600amp L-Kits, ensure each component is tightened to the specified torque per instructions.
- Perform Voltage Test
Remove the test point cap with a hotstick, peeling it off at an angle. WARNING: The voltage test point is a capacitance device and is not directly connected to the conductor. Do not use conventional voltage measuring equipment. Use a suitable sensing device made for capacitive test points. Contamination, moisture, or incorrect equipment can provide a false “no voltage” indication. Treat the elbow as energized until the “no voltage” test point indication is confirmed by other means to prevent serious or fatal injury. After voltage detection, clean and lubricate the inside surface of the cap with silicone lubricant and replace it on the test point.
