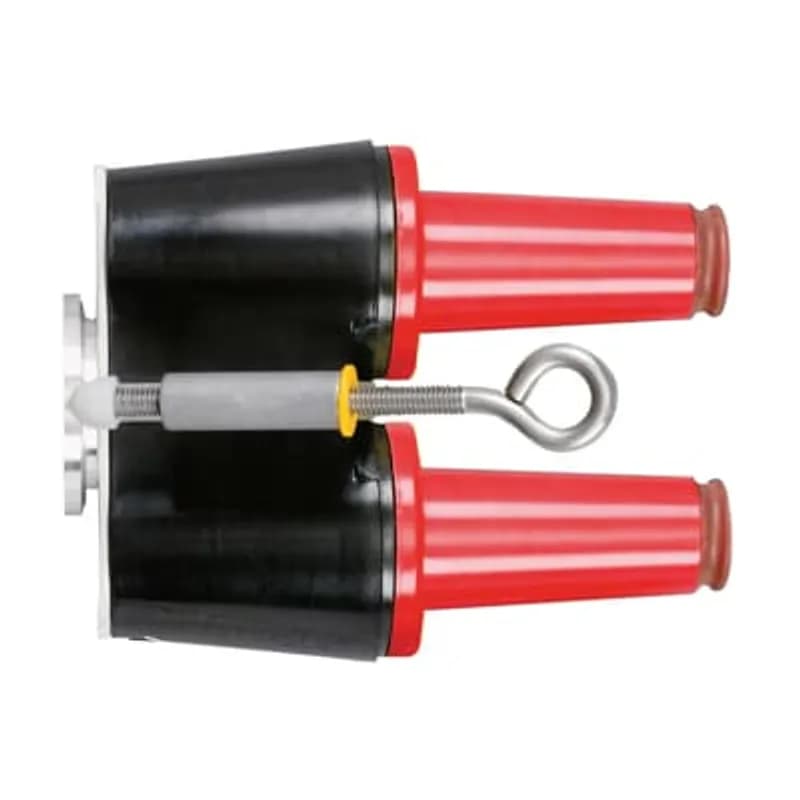

ABB Installation Products 164FT-6 200 Amp, 15kV, Brackets and hardware only for 164FT (Feed-Thru). Kit Includes Universal…
UPC: 783786402281
Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 200 Amp, 15kV rated for medium-voltage applications
- Universal bracket for compatibility with ABB 164FT Feed-Thru units
- Bottom shield plate for environmental and contact protection
- Includes flat-head machine screws for flush mounting
- Instruction sheet for straightforward installation
Specifications
Application | 15 kV, 200 Amp |
Type | Feed-Thru Bracket |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
150-TB-2
15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.
152-EA-FAB
15/25kV 200 Amp, Deadbreak Cable Entrance Insulating Plug, Cable Insulation Diameter 0.610 inch to 0.735 inch.152-EA-FG
15/25kV 200 Amp, Deadbreak Cable Entrance Insulating Plug, Cable Insulation Diameter 0.725 inch to 0.835 inch.
K655BE-650ETP
15/25kV, 600 Amp Bushing Extender and Stud with Elbow Tap Plug. Bushing Extender is 8.41 inch long x 3.17 inch Diameter. Stud is 2.28 inch long x 5/8-11 UNC-2A Threads on both ends.
655BEA3-DRG
15kV, 600/200 Amp Stick Op Loadbreak Bushing Adapter includes Insulating Cap with 38 inch Black Ground Wire.Frequently Asked Questions
What is included in the 164FT kit?
Each kit contains one 164FT feed-thru body, two protective shipping caps (1601-APC-1), two lubricants (82-08), and one installation instruction (IS-0376).
What products are compatible with the 164FT?
The 164FT is designed to mate with 15kV Family of Elbow Connectors, 370TR test rod, 160GLR grounding elbow, and 160DR/DRG insulated cap.
What standards does the 164FT meet?
The 164FT meets ANSI/IEEE Standard 386, Latest Revision.
What is the continuous current rating of the 164FT?
The 164FT has a continuous and loadbreak current rating of 200 Amps.
What is the maximum operating voltage for the 164FT?
The maximum operating voltage for the 164FT is 8.3kV phase-to-ground and 14.4kV phase-to-phase.
What voltage class is the 164FT designed for?
The 164FT feed-thru is designed for 15kV voltage class loadbreak systems.
What is the 164FT feed-thru used for?
The 164FT feed-thru is a fully shielded, submersible insulated connector for 15kV class loadbreak systems, providing a loadbreak junction point. It is designed for energized operation.
What standards does the 164FT meet?
The 164FT meets ANSI/IEEE Standard 386, Latest Revision.
What is the 164FT feed-thru used for?
The 164FT feed-thru is a fully shielded, submersible insulated connector for 15kV class loadbreak systems, providing a loadbreak junction point. It is designed for energized operation.
What voltage class is the 164FT designed for?
The 164FT feed-thru is designed for 15kV voltage class loadbreak systems.
How to Install the 164FT-6 Feed-Thru/Grounding Device
Instructions for installing the 164FT-6 feed-thru device as either a junction point or a grounding point.
Estimated time: 45m
Tools needed:
Hotstick, Voltage detection device, Live-line tool
Supplies needed:
Ground lead (No. 14 copper wire or equivalent), Lubricant (supplied), Loadbreak elbow, Grounding elbow, Insulated cap
- Prepare Ground Connection
Insert the ground lead into the grounding lug on the mounting hardware and tighten. Connect the other end of the lead to ground, ensuring enough slack for operation with a hotstick. Use No. 14 copper wire or equivalent.
- Prepare Feed-Thru Bushings
Remove the protective caps from the feed-thru bushings. Clean the bushing surfaces and lubricate them with the supplied lubricant. Do not substitute lubricants. Replace protective caps if the feed-thru is not in use.
- Attach Feed-Thru to Hotstick
Firmly attach the feed-thru eye to the hotstick.
- Mount Feed-Thru on Parking Stand
Using the hotstick, slide the feed-thru onto the parking stand. Unlock the hotstick and back it off to allow space for the eyebolt to be tightened. Tighten the eyebolt by rotating the hotstick clockwise until snug. Do not overtighten. Release the hotstick.
- Connect First Loadbreak Elbow (Junction Point Application)
Remove a loadbreak elbow from its apparatus loadbreak bushing. Using a hotstick firmly attached to the elbow, insert the probe tip into one feed-thru bushing until slight resistance is felt. Push the elbow home with a fast, firm, straight motion to engage the internal lock.
- Connect Second Loadbreak Elbow (Junction Point Application)
Remove a second loadbreak elbow. Using a hotstick firmly attached to the elbow, insert the probe tip into the remaining feed-thru bushing until slight resistance is felt. Push the elbow home with a fast, firm, straight motion to engage the internal lock.
- Disconnect Loadbreak Elbows (Junction Point Application)
To disconnect, ensure no system faults exist. Reverse the operational sequence, following the applicable loadbreak operating instructions, to return the loadbreak elbow(s) to the apparatus bushing(s).
- Verify System De-energization (Grounding Point Application)
Ensure the system is de-energized. Check the capacitive test point on the loadbreak elbow with an appropriate voltage detection device, or use a test rod and a meter capable of reading system voltage to check the test rod disc. If voltage is indicated, do not proceed without de-energizing the system. Keep the hotstick eye and test rod disc clear from ground until tested de-energized.
- Install Grounding Elbow (Grounding Point Application)
Install the ground elbow into the second plug of the feed-thru, following the grounding elbow operating instructions. IMPORTANT: Do not insert the grounding elbow unless the circuit has been tested 'De-Energized'.
- Verify Full Elbow Seating
Confirm that the elbow is fully seated by observing that no portion of the yellow band is visible when viewed from the side.
