ABB Installation Products K465LR-J0290 15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter 0.980…
UPC: 783786314188
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15/25kV voltage class with 630A continuous current rating
- Accommodates cable insulation diameters 0.980-1.180 inch (24.892-29.972 mm)
- Suitable for 300 stranded/compressed or 350 solid/compact conductors, 150 mm² cross-sections
- Fully shielded, submersible molded rubber housing with peroxide-cured EPDM materials
- Deadbreak design enables safe hot-line maintenance without service interruption
Specifications
Amperage Rating | 630 A |
Application | Designed to provide Fully Shielded, Dead-Front Submersible Cable Connections to High-Voltage Apparatus |
Color | Black |
Conductor Range | 300 kcmil , 350 kcmil |
Connection | Compression |
Connection Type | Compression Lug |
Current Rating | 630 A |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Length | 13 in |
Length | 330.2 mm |
Material | Aluminum |
Material | Housing - EPDM-Rubber |
Series | 600 Series |
Size | 0.980-1.180 inch (cable insulation diameter), 300 stranded/compressed or 350 solid/compact or 150 mm² (conductor size) |
Special Features | Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators |
Standard | ANSI/IEEE Standard 386/ IEC |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Elbow Connector |
Voltage Rating | 15 to 25 kV |
Voltage Rating | 15/25 kV |
Width | 10.36 in |
Width | 263.144 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 7.2500 L |
Package Weight (Metric) | 3.2890 kg |
K656LRG0290-S
15/25 KV, Elbow Connector with Test Point, 600 Amp, Dead Break, Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed/Stranded 300 or Solid 350 or mm2 150. With Cold-Shrinkable Jacket Seal.K465LR-H-120MMSQ
15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter 0.850-1.050 inches (21.590-26.670mm). Compression Lug, Conductor Size 120 mm2. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Tube Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. Exceeds ANSI/IEEE Standard 386 Latest Revision.K465LR-J-185MMSQ
15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter 0.980 inch to 1.180 inch (24.892-29.972mm). Compression Lug, Conductor Size 185 mm2. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Tube Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. Exceeds ANSI/IEEE Standard 386 Latest Revision.K465LR-K-240MMSQ
15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter 1.090 inch to 1.310 inch (27.686-33.274mm). Compression Lug, Conductor Size 240 mm2. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Tube Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. Exceeds ANSI/IEEE Standard 386 Latest Revision.K465LR-J-2270
15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter 0.980 inch to 1.180 inch (24.892-29.972mm). Copper Compression Lug, Conductor Size 4/0 Stranded/Compressed or 250 Solid/Compact or 125 mm2. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Tube Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. Exceeds ANSI/IEEE Standard 386 Latest Revision.K465LR-LM-400MMSQ
15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter 1.280 inch to 1.430 inch (29.972-37.211mm). Compression Lug, Conductor Size 400 mm2. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Tube Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. Exceeds ANSI/IEEE Standard 386 Latest Revision.
756LR-P0410
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.725 inch to 1.935 inch. Conductor Size AWG or kcmil, Compressed Stranded 1000.756LR-P0380
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.725 inch to 1.935 inch. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.Frequently Asked Questions
What is included in the K465LR kit?

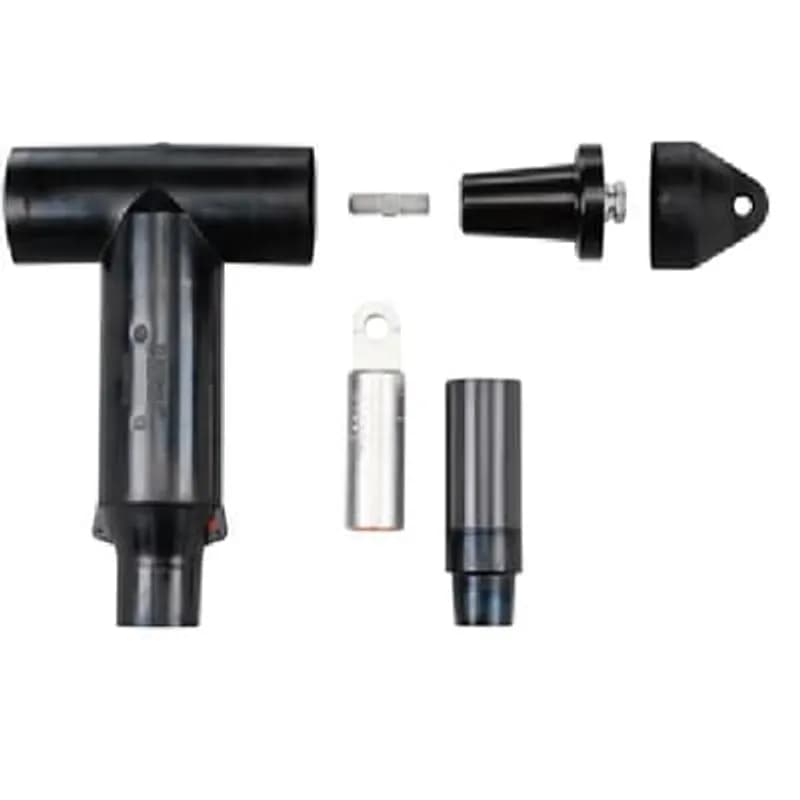

Each kit contains an elbow connector housing, a copper compression lug, a stud, an insulated plug with cap, lubricant tubes, a cable adapter, and installation instructions.
What materials are used in the K465LR's construction?
The K465LR features 100% peroxide-cured construction, including insulation and conductive EPDM materials.
Can the K465LR use other Elastimold accessories?
Yes, the K465LR can use many standard Elastimold 600A accessories for functions like tapping, grounding, or isolation.
What bushing interfaces does the K465LR elbow connector have?
One end conforms to IEC-71 for 630 A European Switchgear, and the other end has a standard ANSI 386 Fig 11 bushing interface.
What is recommended when using K465LR with metallic tape shield cables?
When used on metallic tape shield or drain wire cable, an ECS cable seal grounding device is recommended.
What is the K465LR elbow connector's primary application?
The K465LR provides fully shielded, dead-front submersible cable connections to high-voltage apparatus. It is designed for use through 28kV.
What voltage class is the K465LR elbow rated for?
The K465LR elbow connector is fully rated for 15/25kV voltage class. It can be used with a maximum phase-to-phase voltage of 28kV.
What is the continuous current rating for the K465LR?
The K465LR elbow connector has a continuous current rating of 630 Amps. It can handle up to 1250 Amps if the equipment is also rated for that current.
What conductor sizes are compatible with the K465LR?
The K465LR is compatible with aluminum and copper conductors ranging from 1/0 to 1250 kcmil.
What are the short circuit ratings for the K465LR?
The short circuit ratings for the K465LR are RMS symmetrical > 28 kA and peak asymmetrical > 70 kA.
How to Install the K465LR-J0290 Thread Conversion Stud
This guide provides instructions for identifying and installing the K465LR-J0290 double-ended stud, which converts M16 metric threads to 5/8”-11 English threads.
Estimated time: 5m
- Locate the Conversion Stud
Find the double-ended stud within the K465LR-J0290 kit. This stud is designed to facilitate thread conversion between M16 metric and 5/8”-11 English specifications.
- Identify the M16 Metric End
Examine the stud to locate the end marked with an 'M'. This 'M' signifies the M16 metric threaded end of the conversion stud, intended for M16 metric connections.
- Perform Thread Conversion
Connect the M16 metric end of the stud into the component requiring an M16 metric thread. Then, connect the 5/8”-11 English end of the stud into the component requiring a 5/8”-11 English thread, thereby achieving the thread conversion. Ensure all connections are hand-tightened or secured as appropriate for your application.
